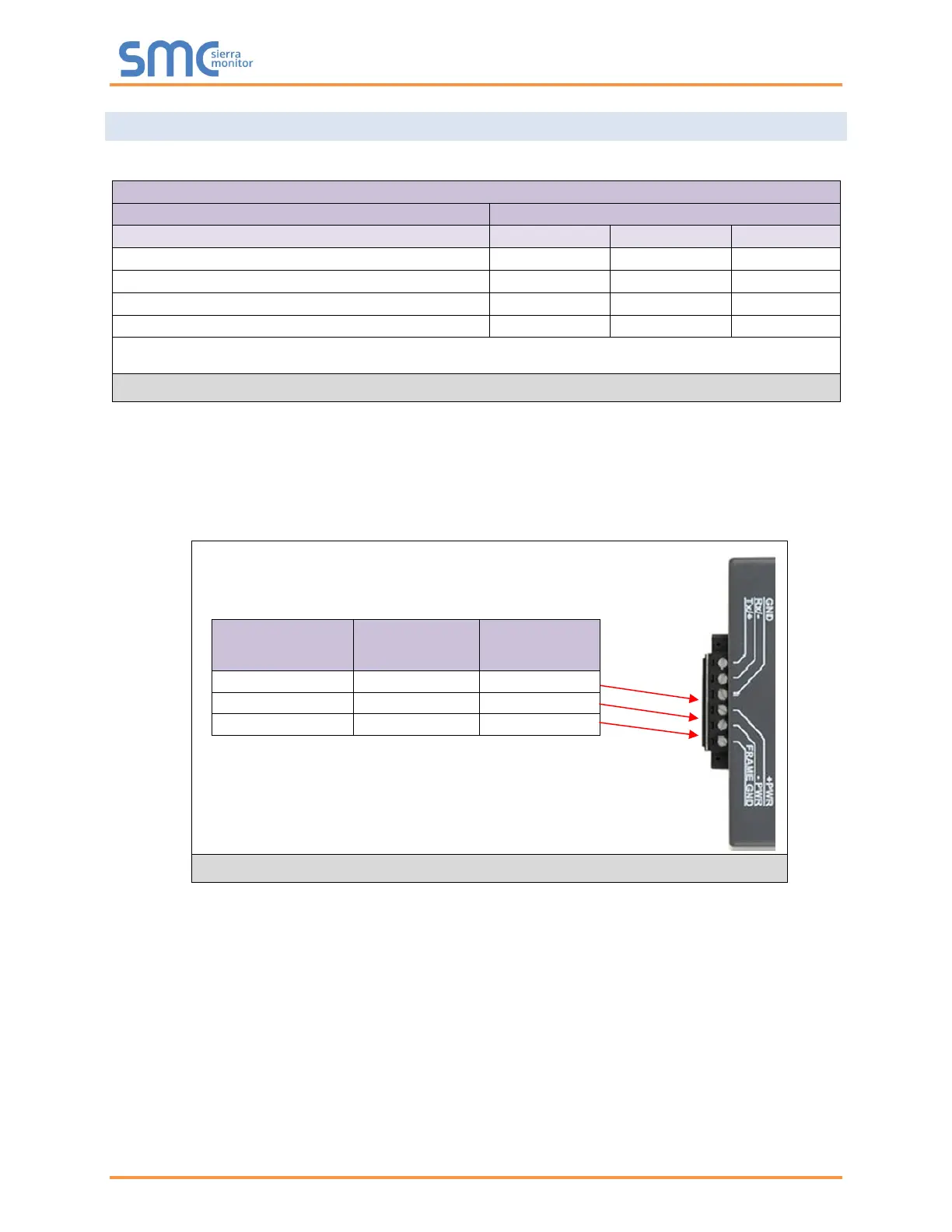

Camus ProtoNode Start-up Guide
Page 29 of 87
4.9 Power-Up ProtoNode
Check power requirements in the table below:
Power Requirement for ProtoNode External Gateway
Current Draw Type
ProtoNode Family 12VDC/AC 24VDC/AC 30VDC
FPC N34 (Typical)
170mA
100mA
80mA
FPC N34 (Maximum)
240mA
140mA
100mA
FPC N35 (Typical)
210mA
130mA
90mA
FPC N35 (Maximum)
250mA
170mA
110mA
NOTE: These values are ‘nominal’ and a safety margin should be added to the power supply of
the host system. A safety margin of 25% is recommended.
Figure 16: Required Current Draw for the ProtoNode
Apply power to the ProtoNode as shown below in Figure 17. Ensure that the power supply used complies
with the specifications provided in Appendix E.1.
ProtoNode accepts either 9-30VDC or 12-24VAC on pins 4 and 5.
Frame GND should be connected.
Power to
ProtoNode
ProtoNode
Pin #
Pin
Assignment
Power In (+)
Pin 4
V +
Power In (-)
Pin 5
V -
Frame Ground
Pin 6
FRAME GND
Figure 17: Power Connections
