Camus ProtoNode Start-up Guide

Page 46 of 87

• Enter the appropriate change and click the Write button.

The window will close. When the BACnet Explorer page appears, the present value will be

changed as specified.

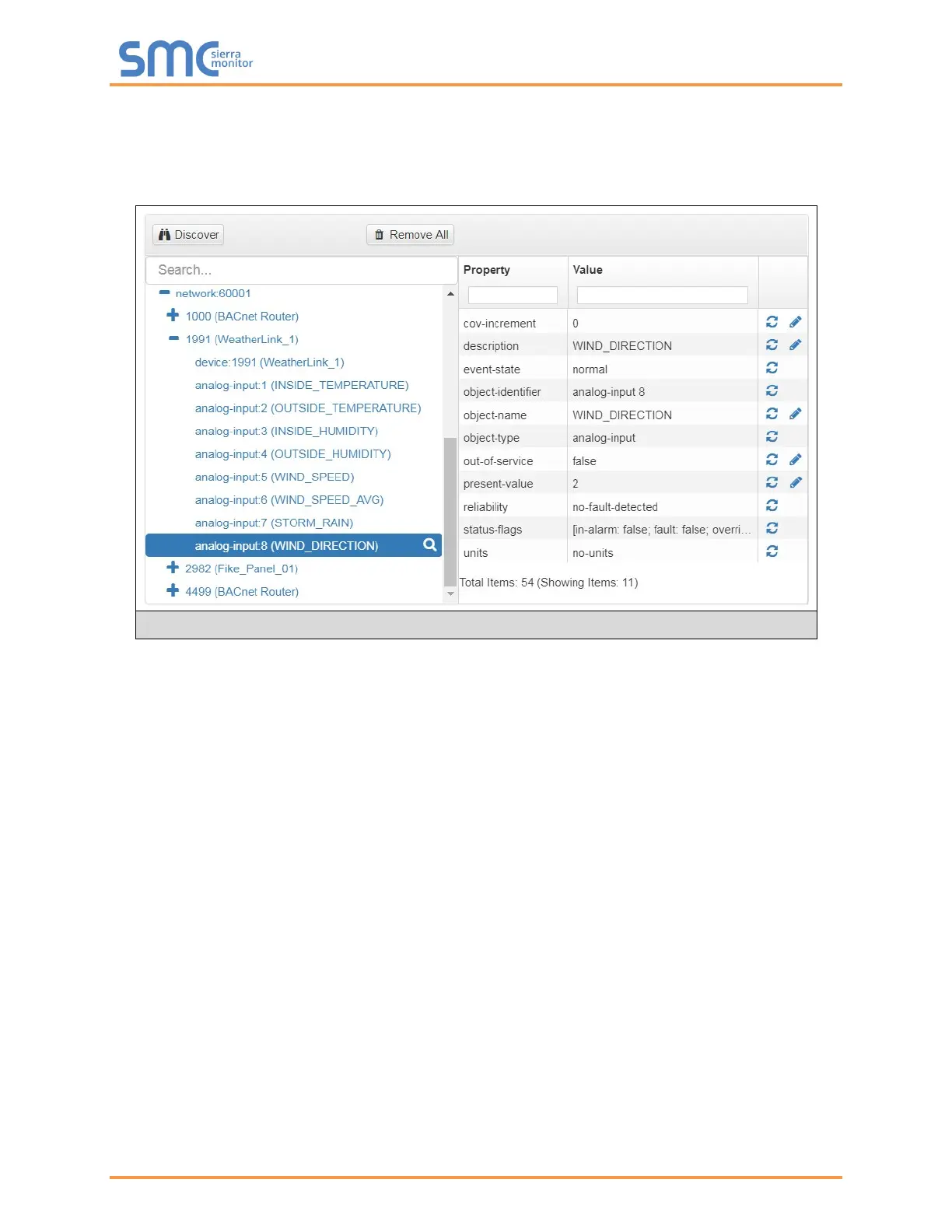

Figure 39: Updated Present Value

Table of Contents4
