Camus ProtoNode Start-up Guide

Page 22 of 87

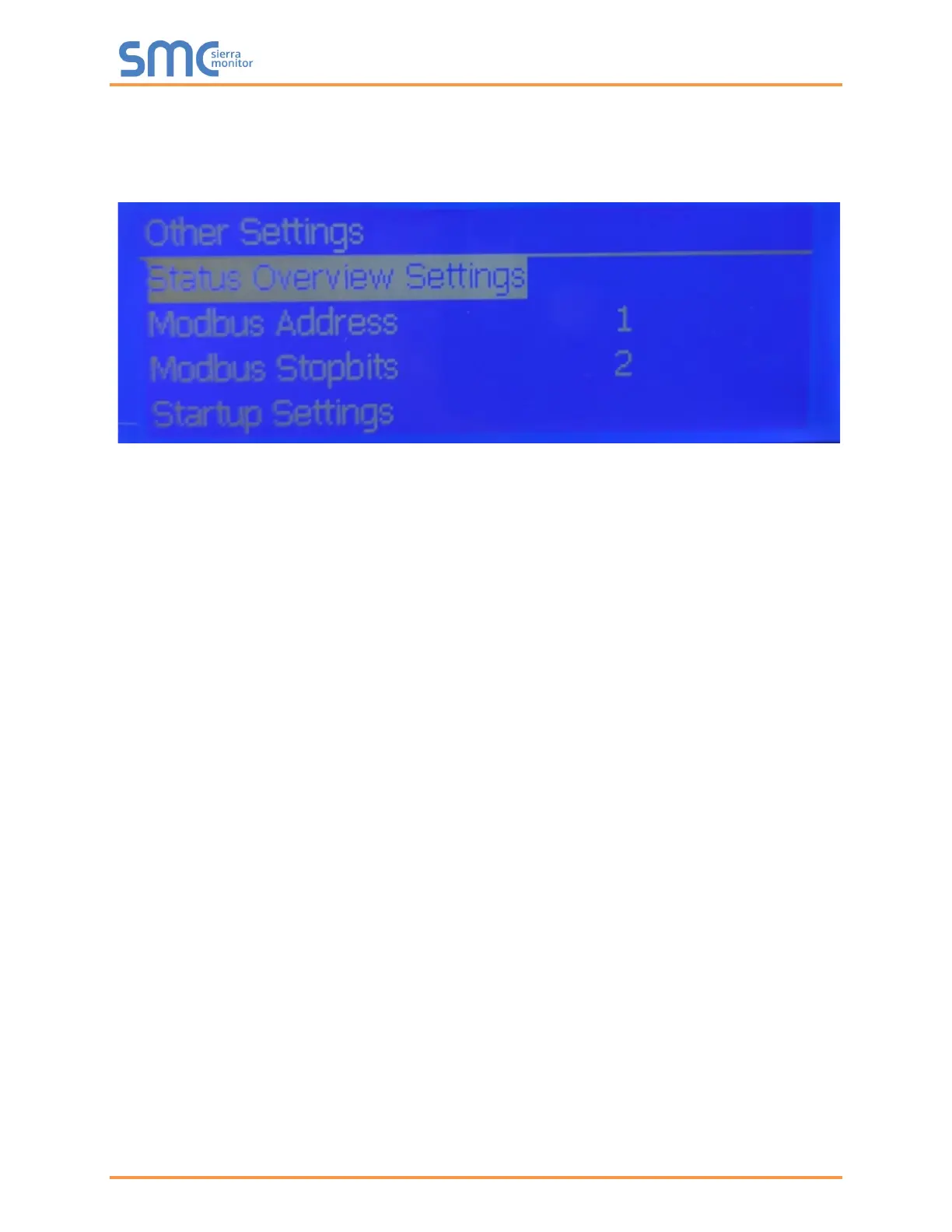

The slave address can be changed from the Valiant’s pushbutton screen. To change the slave

address go to Menu>Settings>General Settings>Other Settings>Modbus Address

Note: Do not change “Modbus Stopbits”!

Please refer to appendix C.3 for Valiant’s Modbus mapping table.
