Camus ProtoNode Start-up Guide

Page 53 of 87

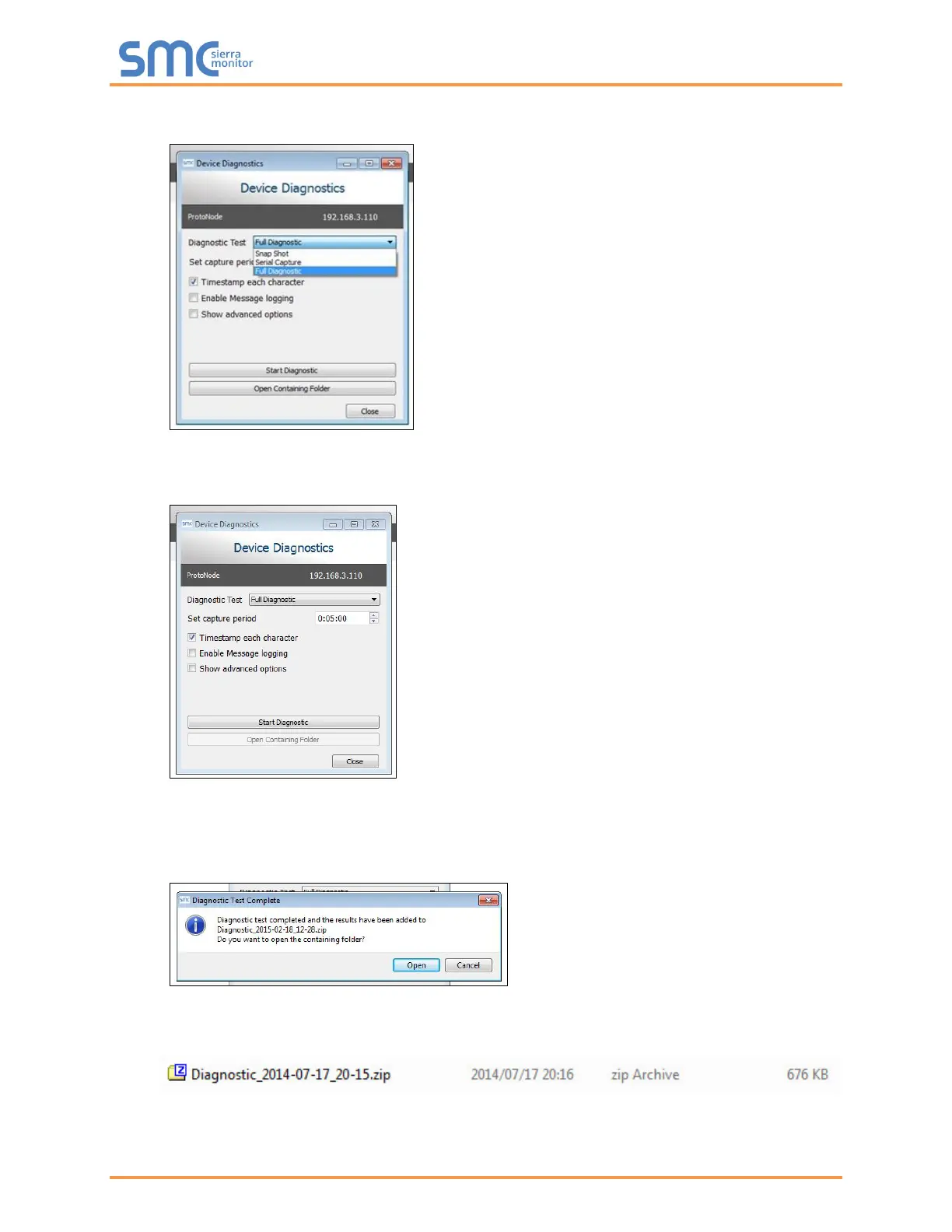

o Select “Full Diagnostic" from the drop down menu

NOTE: If desired, the default capture period can be changed.

o Click on the Start Diagnostic button

o Wait for the capture period to finish and the Diagnostic Test Complete window will appear

• Step 2: Send Log

o Once the diagnostic test is complete, a .zip file is saved on the PC

o Choose “Open” to launch explorer and have it point directly at the correct folder

o Send the Diagnostic zip file to technical support
