Troubleshooting
Clearing Document Jams in the Feeder (D560 Only)
After removing any documents placed in the feeder, follow the procedure below to remove
jammed documents.

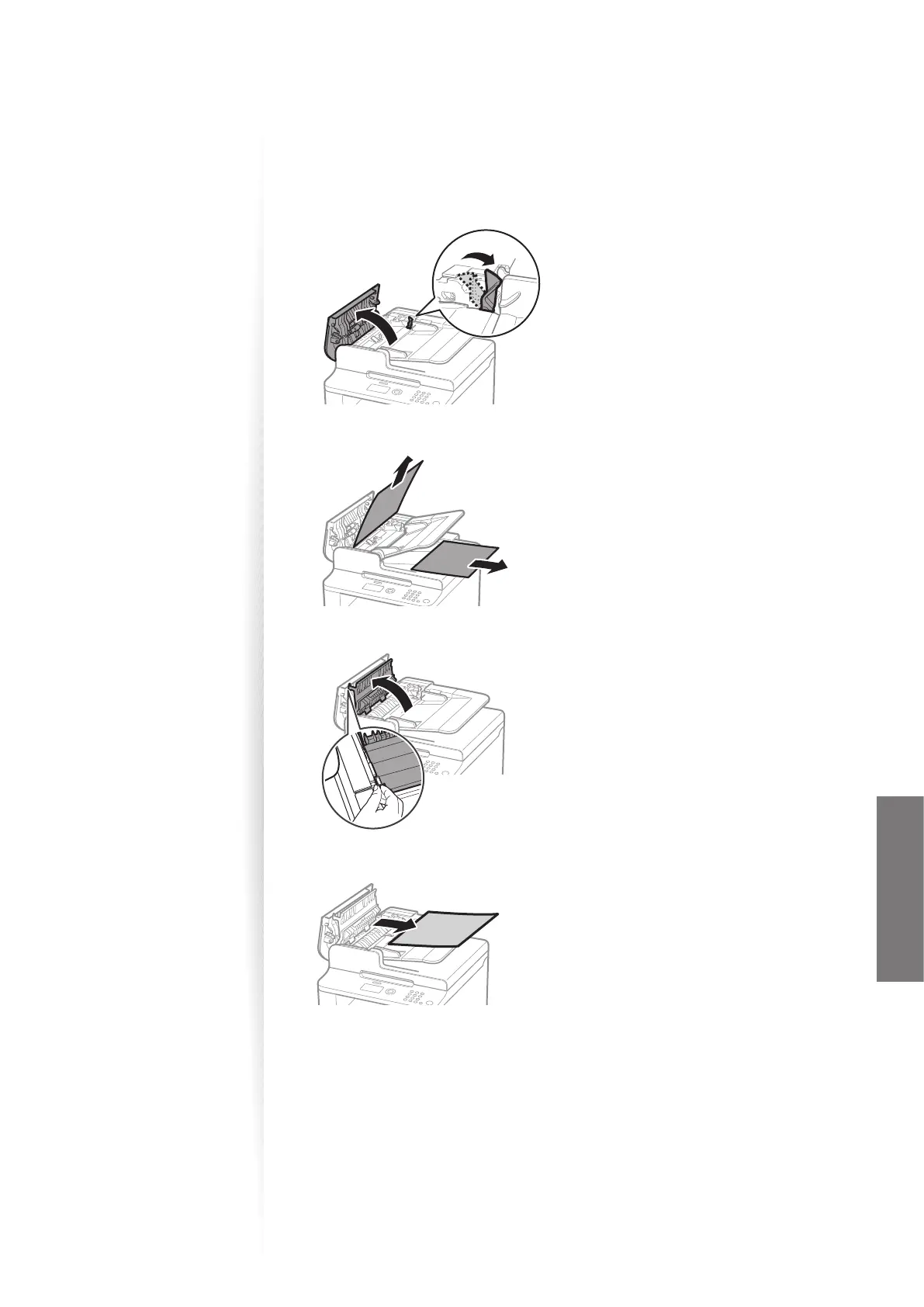

1
Open the feeder cover and lift the lock release lever.
2
Remove any jammed document by pulling it gently.
3
Hold the green grip, and then open the inner cover.
4
Remove any jammed document by pulling it gently.
5
Close the inner cover.
6
Replace the release lever and close the feeder cover.
