c) Right Cover
Removing the Right Cover
1) To remove the right cover, remove the operation panel.
2) Remove six screws [1], release two hooks [2], and then remove the right cover [3].

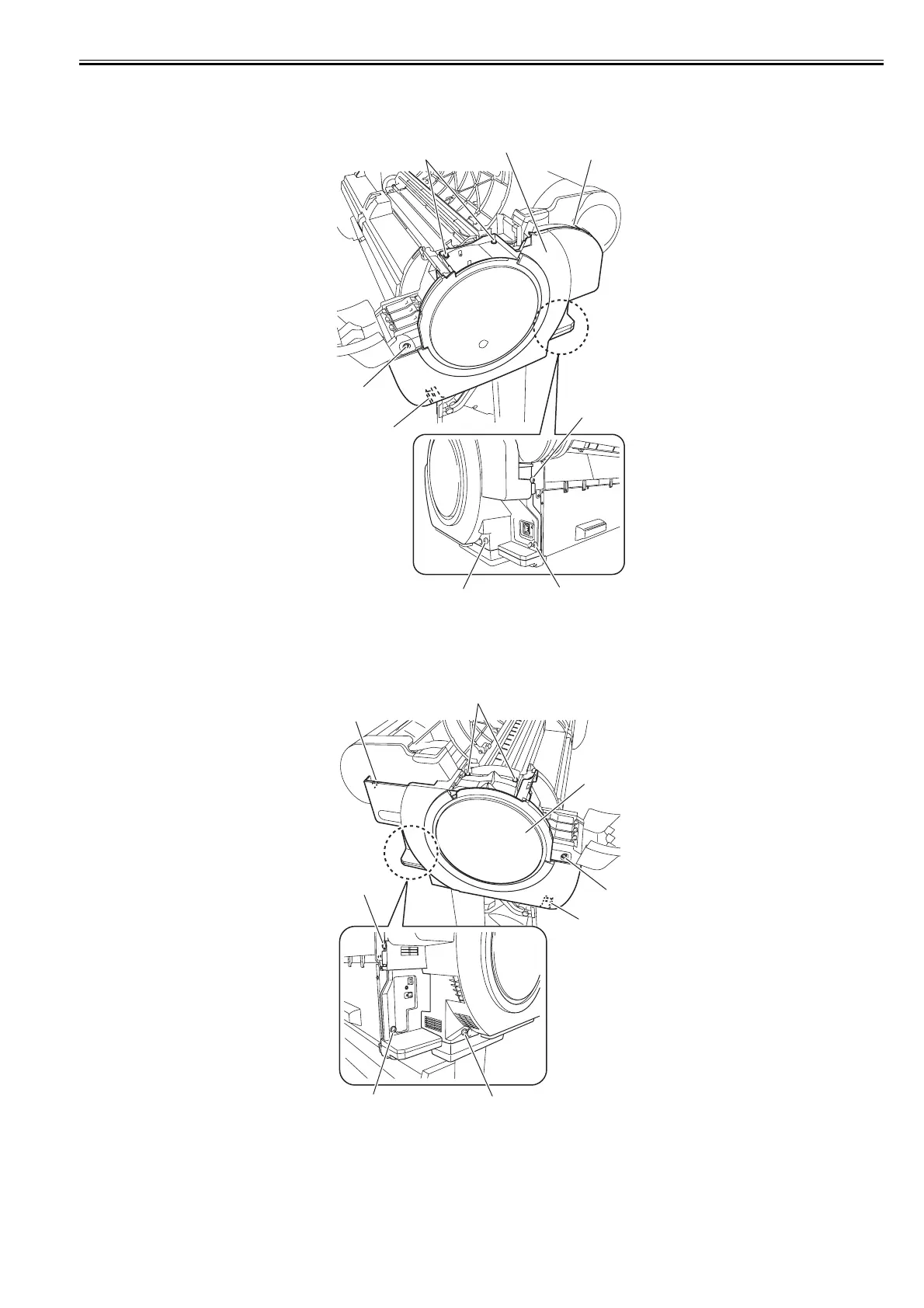

F-4-6
d) Left Cover
Removing the Left Cover
1) To remove the left, remove the upper left cover.
2) Remove six screws [1], release two hooks [2], and then remove the left cover [3].
F-4-7
