a) Mist Fan
Removing the Mist Fan
1) Remove the rear upper cover and front cover and left ink tank cover.
2) Remove two screws [1] and disconnect the connector [2], and then remove the cable from the cable guide to remove the support plate [3].

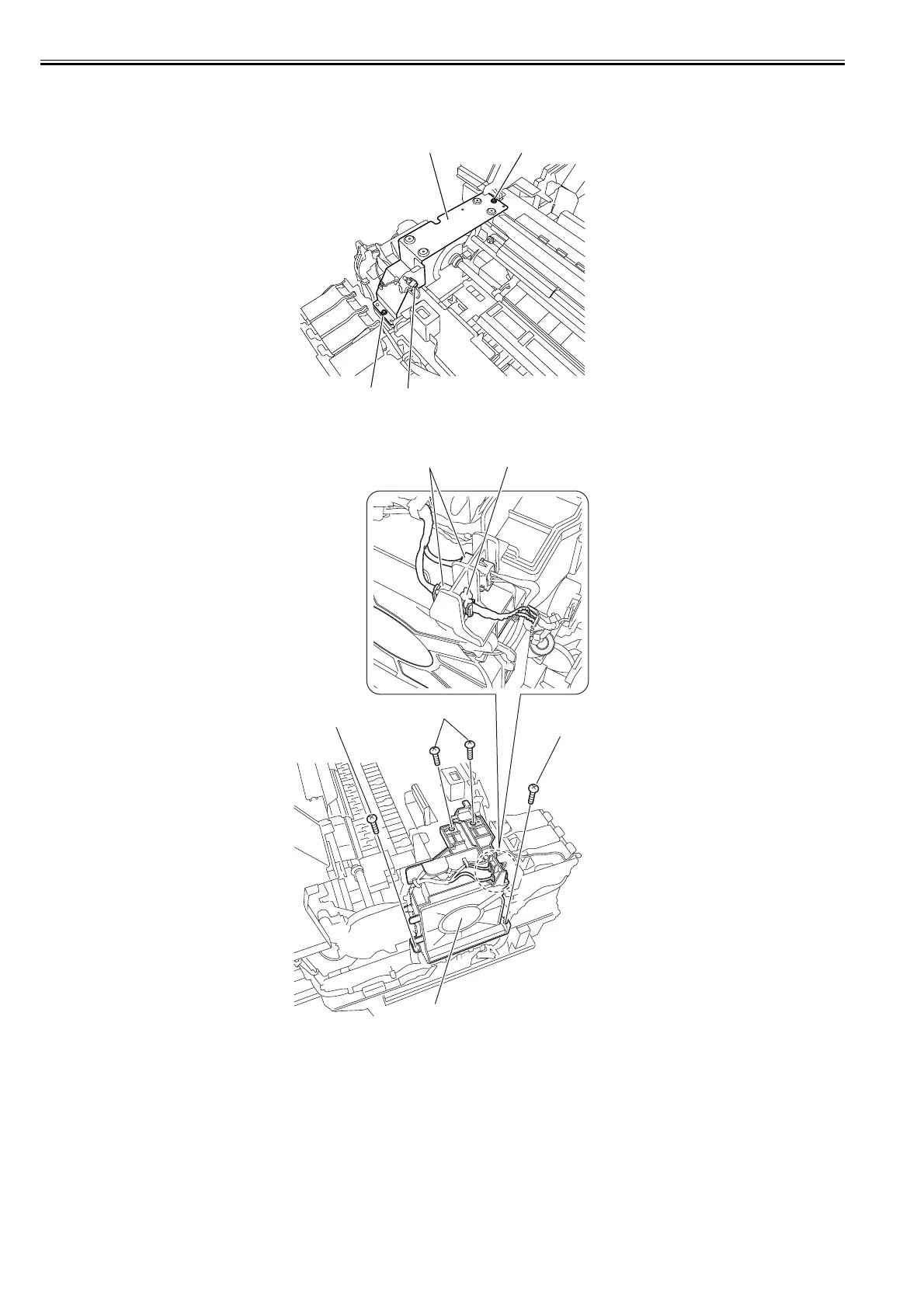

F-4-92
3) Remove four screws [1] and disconnect three connectors [2], and then remove the cable from the cable guide to remove the mist fan [3].
F-4-93
