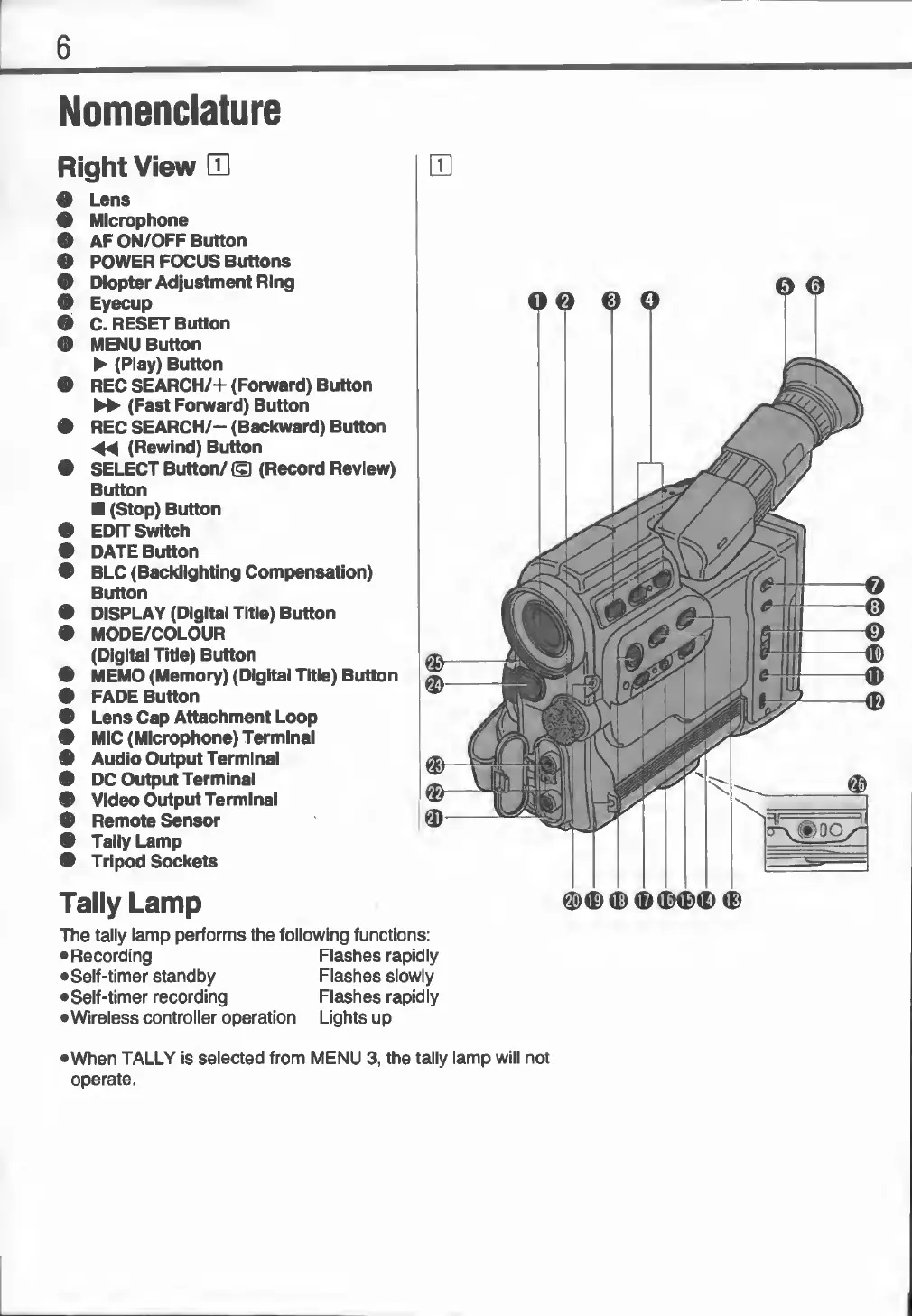

Nomenclature
Right View CD 0
• Lens
• Microphone
e AF ON/OFF Button
0 POWER FOCUS Buttons
0 Diopter Adjustment Ring
0 Eyecup
0 C. RESET Button
O MENU Button
► (Play) Button
0 REC SEARCH/+ (Forward) Button
FF (Fast Forward) Button
0 REC SEARCH/- (Backward) Button
(Rewind) Button
0 SELECT Button/ © (Record Review)
Button
■ (Stop) Button
0 EDIT Switch
0 DATE Button
0 BLC (Backlighting Compensation)
Button
0 DISPLAY (Digital Title) Button
0 MODE/COLOUR
(Digital Title) Button gn
0 MEMO (Memory) (Digital Title) Button £
0 FADE Button **
0 Lens Cap Attachment Loop
0 MIC (Microphone) Terminal
0 Audio Output Terminal «
0 DC Output Terminal
0 Video Output Terminal
0 Remote Sensor SI
0 Tally Lamp
0 Tripod Sockets
Tally Lamp
The tally lamp performs the following functions:
•Recording Flashes rapidly
•Self-timer standby Flashes slowly
•Self-timer recording Flashes rapidly
•Wireless controller operation Lights up
©©© (BONE)® ©
•When TALLY is selected from MENU 3, the tally lamp will not
operate.
