Canon UC10 - Specifications.97

Additional Information 97

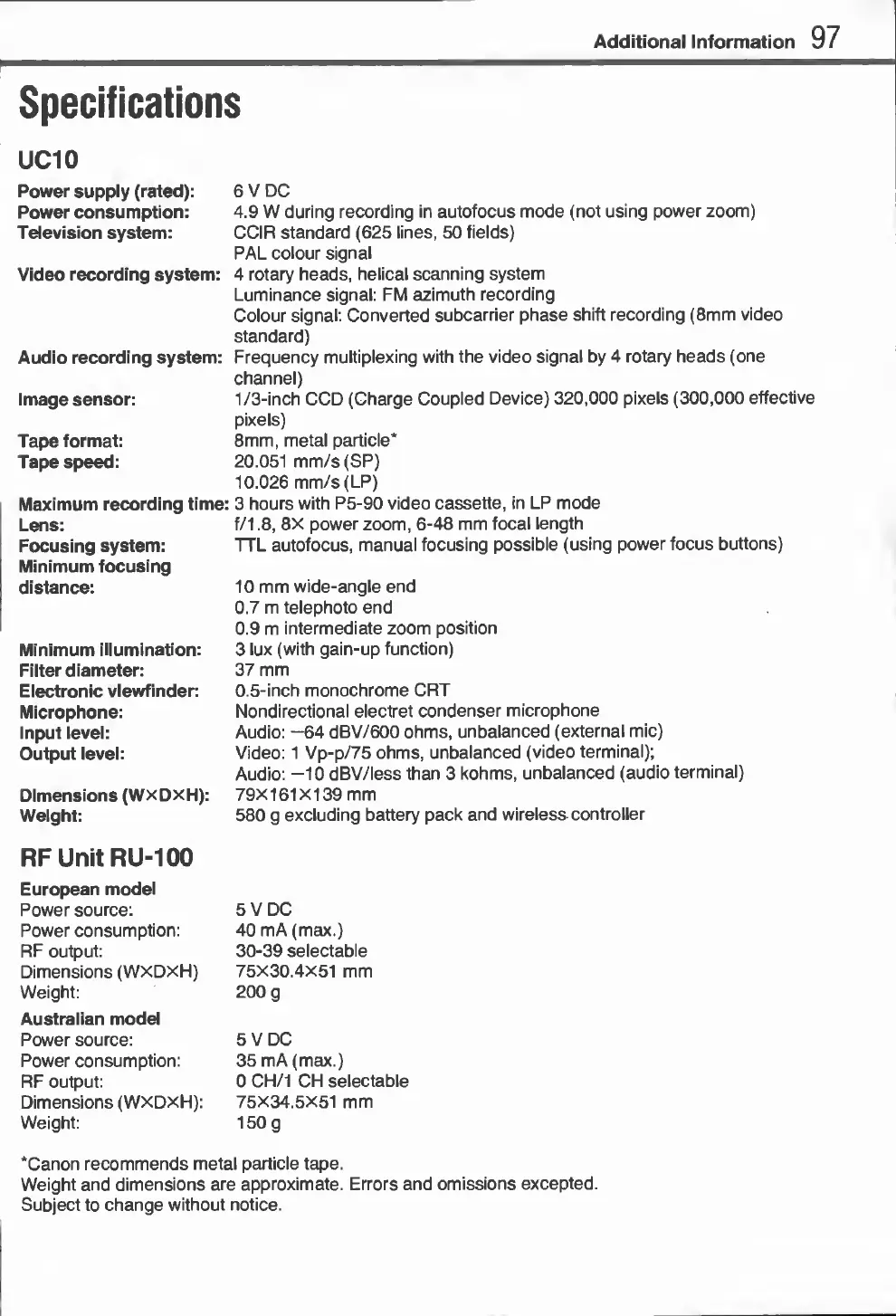

Specifications
UC10
Power supply (rated): 6 V DC
Power consumption: 4.9 W during recording in autofocus mode (not using power zoom)
Television system: CCIR standard (625 lines, 50 fields)
PAL colour signal
Video recording system: 4 rotary heads, helical scanning system
Luminance signal: FM azimuth recording
Colour signal: Converted subcarrier phase shift recording (8mm video
standard)
Audio recording system: Frequency multiplexing with the video signal by 4 rotary heads (one
channel)
Image sensor: 1 /3-inch CCD (Charge Coupled Device) 320,000 pixels (300,000 effective
pixels)
Tape format: 8mm, metal particle*
Tape speed: 20.051 mm/s(SP)
10.026 mm/s(LP)
Maximum recording time: 3 hours with P5-90 video cassette, in LP mode
Lens: f/1.8, 8X power zoom, 6-48 mm focal length
Focusing system: TTL autofocus, manual focusing possible (using power focus buttons)
Minimum focusing
distance: 10 mm wide-angle end
0.7 m telephoto end
0.9 m intermediate zoom position
Minimum illumination: 3 lux (with gain-up function)
Filter diameter: 37 mm
Electronic viewfinder: 0.5-inch monochrome CRT
Microphone: Nondirectional electret condenser microphone
Input level: Audio: -64 dBV/600 ohms, unbalanced (external mic)
Output level: Video: 1 Vp-p/75 ohms, unbalanced (video terminal);
Audio: -10 dBV/less than 3 kohms, unbalanced (audio terminal)
Dimensions (WXDXH): 79X161XI39 mm
Weight: 580 g excluding battery pack and wireless controller
RF Unit RU-100
European model
Power source:
Power consumption:
RF output:
Dimensions (WXDXH)
Weight:
Australian model
Power source:
Power consumption:
RF output:
Dimensions (WXDXH):
Weight:
5 V DC
40 mA(max.)
30-39 selectable
75X30.4X51 mm
200 g
5 V DC
35 mA (max.)
0 CH/1 CH selectable
75X34.5X51 mm
150 g
*Canon recommends metal particle tape.
Weight and dimensions are approximate. Errors and omissions excepted.
Subject to change without notice.
