4. Installation
4.1 Install coil support frame
Coil support frame is separated from main machine before shipping. Please install support
frame when you ready to test.

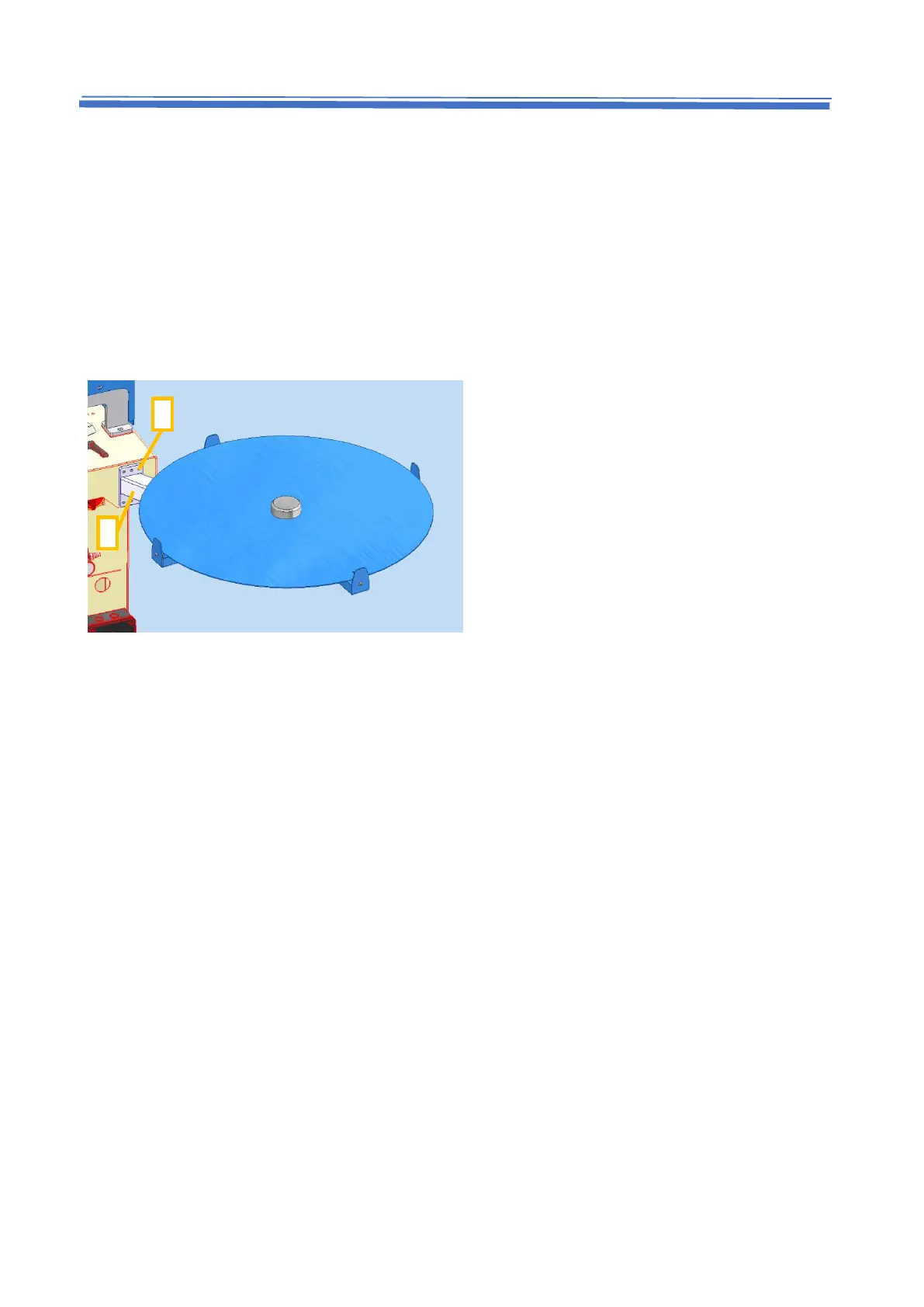

1. Put frame A against main machine and locked by Screw D.
2. Put coil support plate on the frame A and secured by set screw and double nuts.
4.2 Connection of the pneumatic system
This RFL system (Regulator, Filter, Lubrication) is situated below the feeding motor.
- Always connect the machine to the compressed air unit
- Ensure compressed air pressure is at least 7 kg 𝑐𝑚
2
⁄
. Machine is unable to start up when air
pressure is lower than 5.0 kg 𝑐𝑚
2
⁄
kg.
- Ensure machine is free from moisture.
- Unplug compressed air system before maintenance.
- Always use pneumatic oil for lubrication. If use wrong type of oil, it can cause serious damage.
