MAX370M
28
5.9 Radius scraping unit
The radius surface receives a light scraping, removing any remaining from the trimming process
and ensuring a smooth “finish”. The fine adjustment is manual.
5.9.1 General setting
1. Check the thickness of edge coils.
2. Turn knobs clockwise to increase trimming amount (2.0 mm as default), turn
counterclockwise to decrease trimming amount.
5.10 Buffing unit
The unit is made up of two independent electric motors, which are equipped with cotton brushes.
The task of the buffing unit is to clean and polish the top and bottom part of the edge.

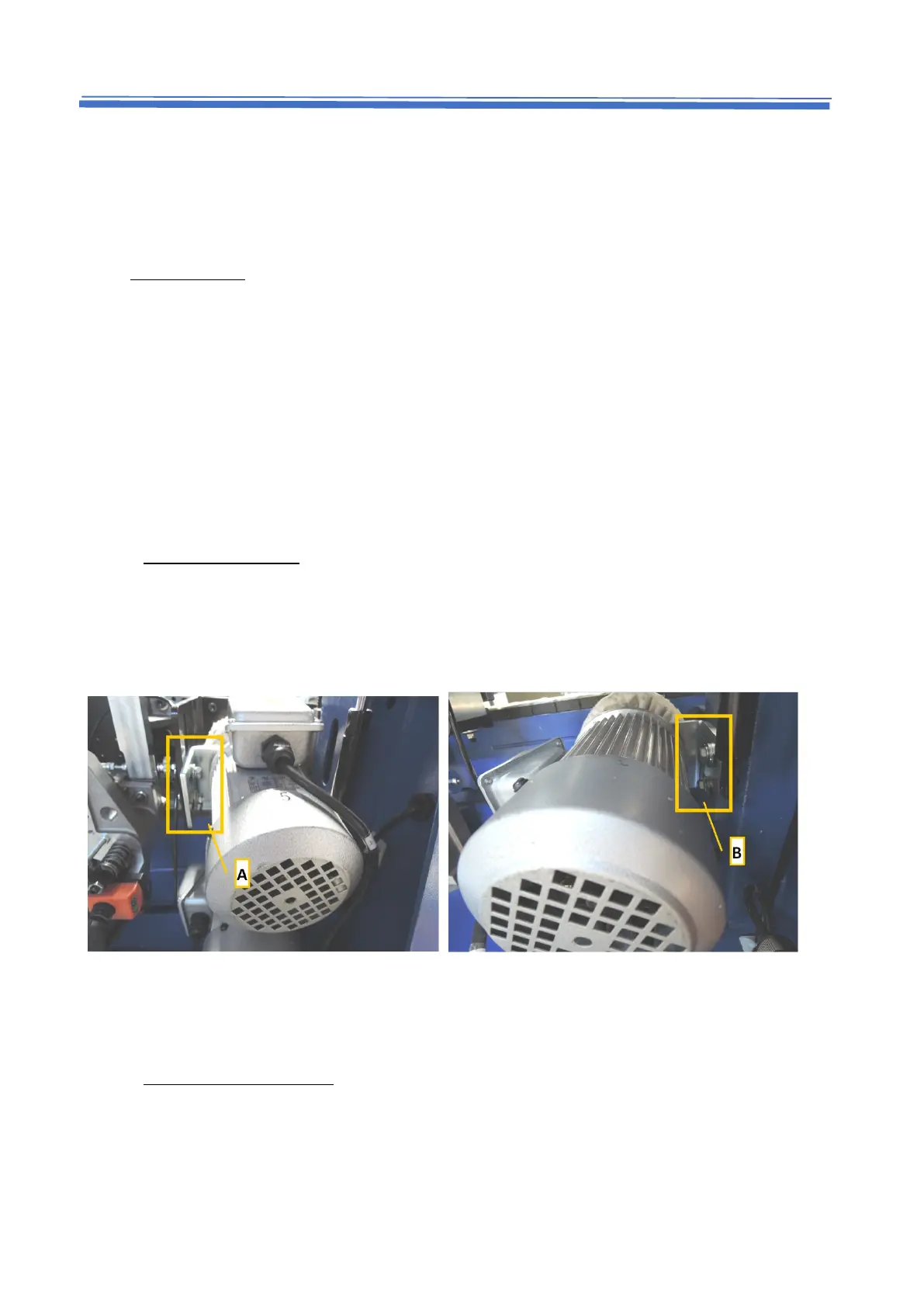

5.10.1 Adjust buffing wheel
a. Loosen the screws A and B (total 4 screws)
b. Lower top unit till the wheel touch the panel slightly; move bottom unit upward till the
wheel touch the panel slightly.
c. Tighten the screws A and B (total 4 screws)
5.11 Flat scraping unit (optional – air cylinder type)
Remove residual glue on the workpiece caused by squeeze-out.
5.11.1 Cutting stoke adjustment
1. Loose screw A for lower flat scrap. (Upper flat scrap is on the corresponding position.)
2. Turn knob B and C clockwise to decrease the trimming amount; turn knob B and C
counterclockwise to increase the trimming amount.
