Cantek MX370M - Flush Trimming Unit; Cutting Stroke Adjustment

MAX370M
26

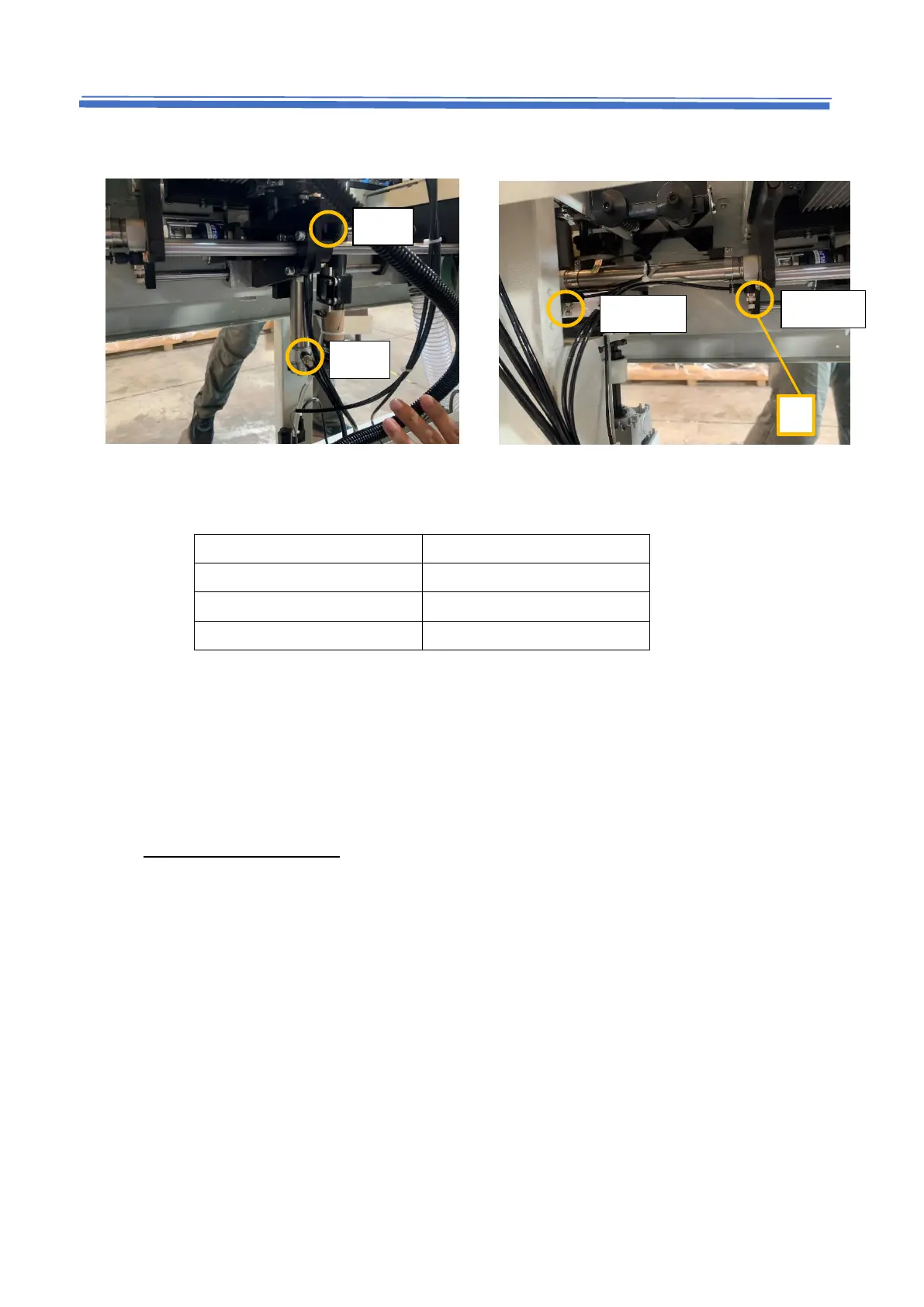

Figure 8.3.5
Figure 8.3.6
4. Each valve regulator corresponds to specific cylinder speed adjustment.
5. Adjust specific valve regulator as below sheet to ensure speed is in the suitable
range. That is, ensure every pointer points to the green area.
Pointer
Action
Too fast (Orange Area)
Lock the valve regulator
Excellent (Green Area)
—
Too low (Red Area)
Loosen the valve regulator
5.8 Flush trimming unit
The unit is made up of two independent operating units, cutting excessive edge on the top and
down sides.
5.8.1 Cutting stroke adjustment
1. Check the thickness of edge coils.
2. Turn knobs clockwise to increase trimming amount; turn counterclockwise to decrease
trimming amount.
Up
Down
Forward
Backward
C
