5.13 Pre-milling unit (standard motor)
Two counter rotating, activation controlled and individually adjustable units with spiral cutters,
that ensure first class edge processing before the workpiece is glued to the edge. After entering
the exact dimensions, the pre-milling unit executes a perfect edge cut on your panels.
5.13.1 Usage tips
a. Loosen the handle
※This is very important!! If you do not loosen the handle before adjusting the trimming
amount, it will cause unit work incorrectly, and bad banding performance※
b. To prevent interdental space problem, ensure you turn the knob from large numbers to
small numbers. For example, if you want to turn the knob from 0 to 1, please turn it to 1.5
first then return to 1. If you want to turn from 1 to 0.5, turn it to 0.5 directly.

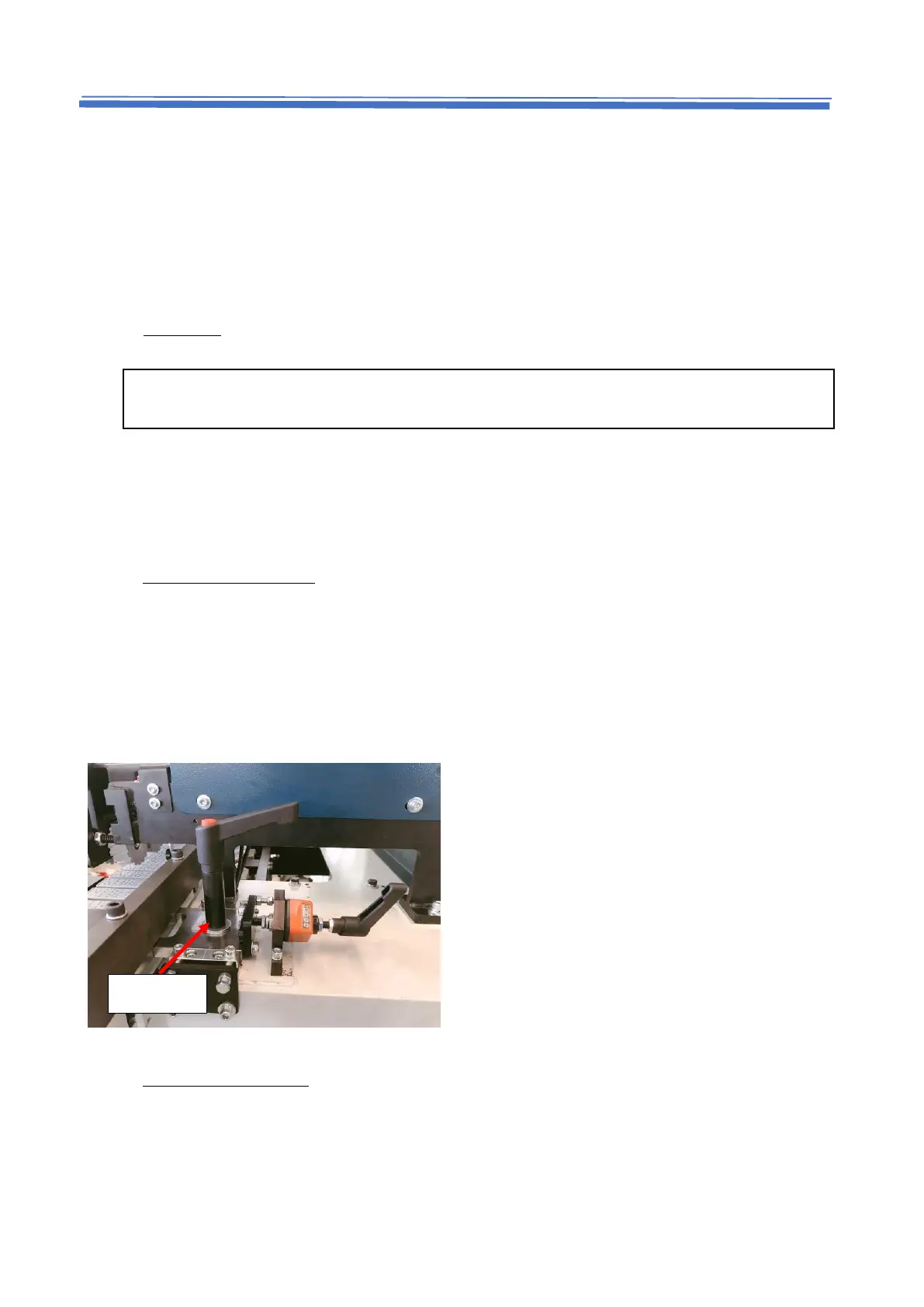

5.13.2 Pre-milling adjustment
1. Loosen infeed fence lock lever, and turn fence scale to 1.0, then retighten lock lever.
2. Feed a workpiece for pre-milling, check remove dimension is equals to 1mm; if not,
calibrate fence scale is identical with remove dimension.
3. Loosen lock lever and return fence scale to “0”.
4. Retighten fence lock lever.
5.13.3 Pre-milling calibration
1. Trimming stroke calibration
Pre-milling cutters do not trim the same amount and cause a gap.
a. Loosen the nuts before you do any adjustment.
