3. Lock screw A and the corresponding screw on upper flat scrap.
5.12 Flat scraping unit (optional – spring type)
Remove residual glue on the workpiece caused by squeeze-out.
5.12.1 Cutting stoke adjustment

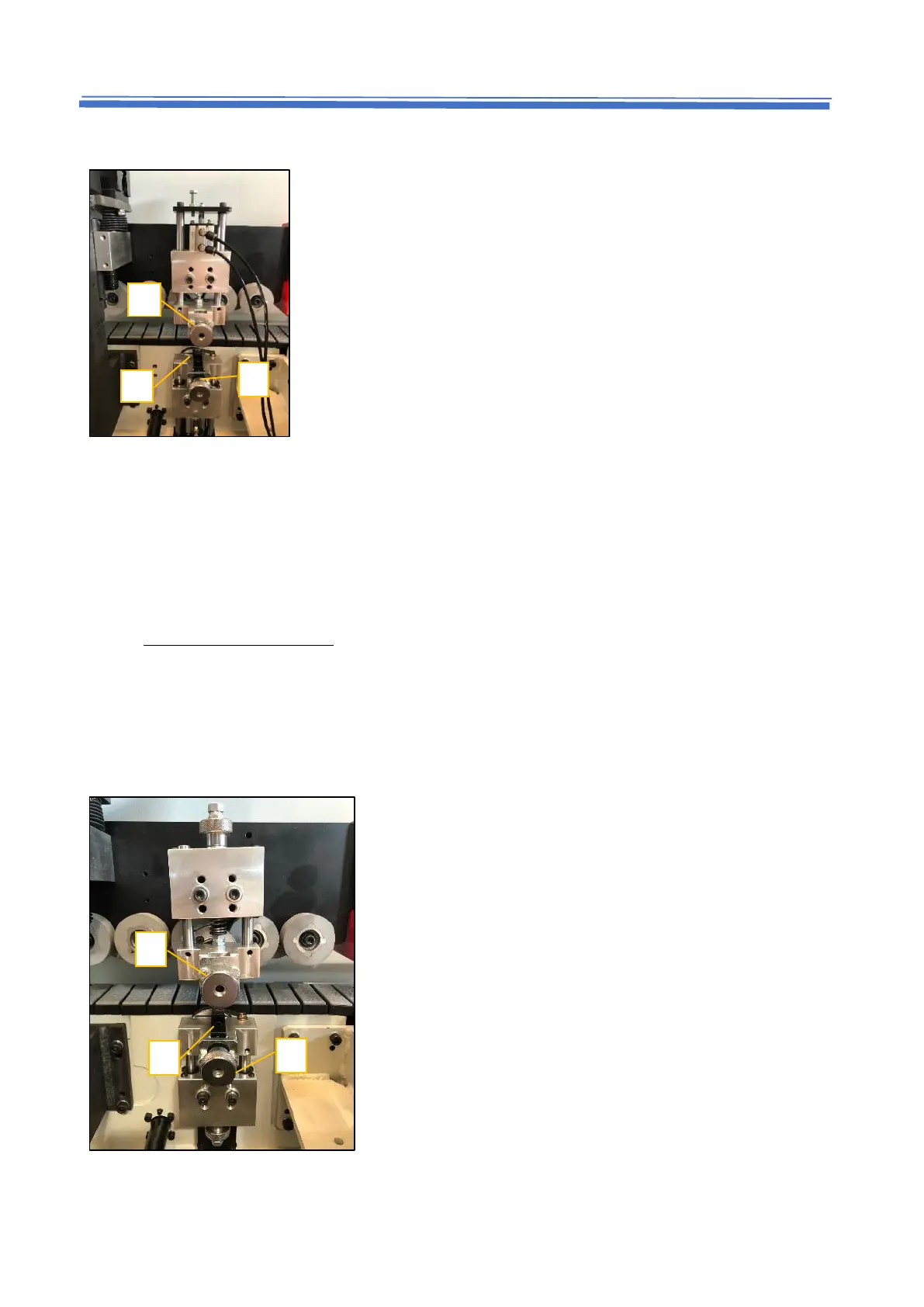

1. Loose screw A for lower flat scrap. (Upper flat scrap is on the corresponding position.)
2. Turn knob B and C clockwise to decrease the trimming amount, turn knob B and C
counterclockwise to increase the trimming amount.
3. Lock screw A and the corresponding screw on upper flat scrap.
A
C
B
A
C
B
