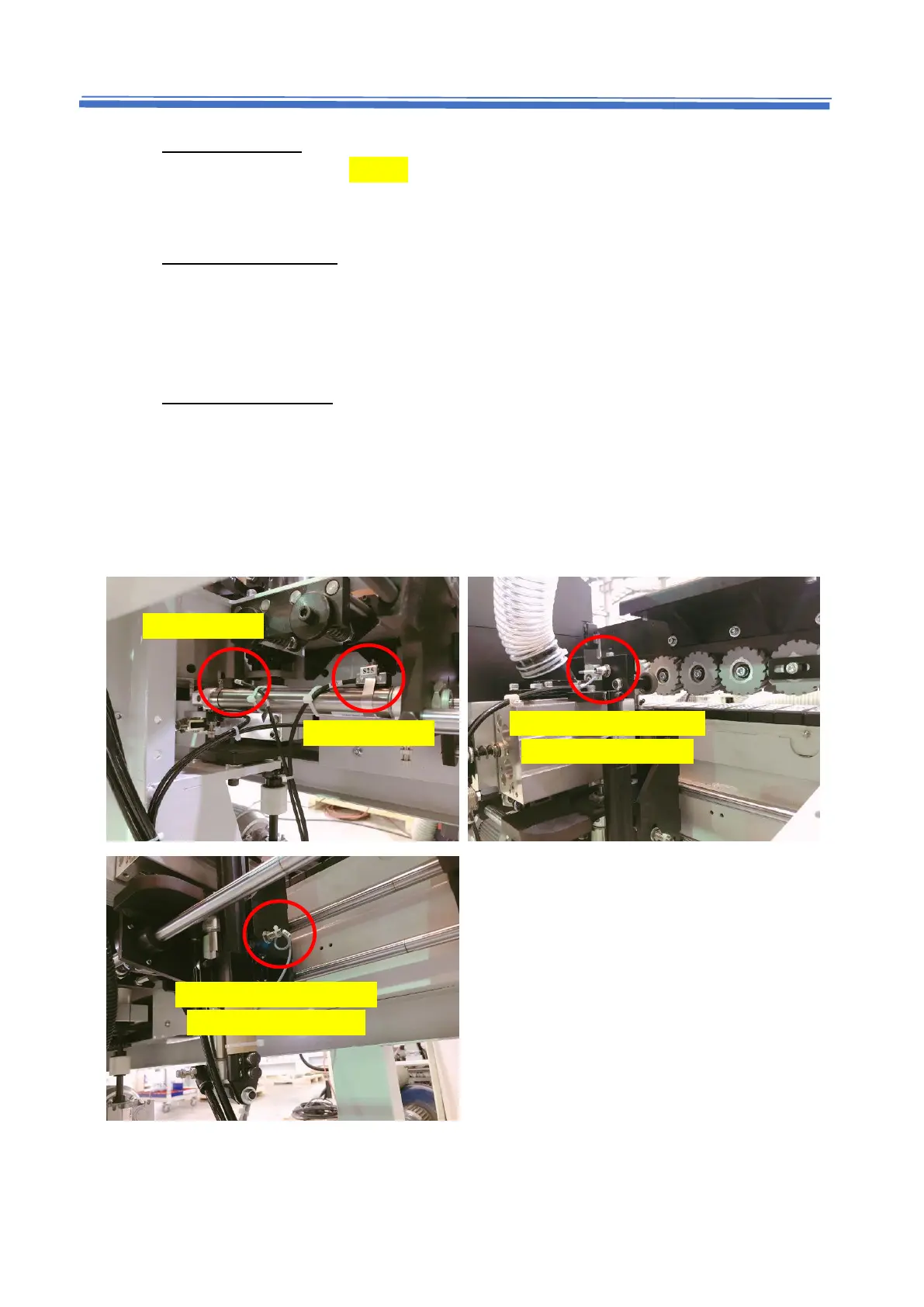

Right limit sensor:
Right limit sensor would light on when the corner rounding unit reaches to this position.
Front rounding sensor:
Corner rounding unit moves accelerate forward against the bottom of the panel. When
the unit pass the panel and ready to move upward, front rounding sensor would light off
and the unit goes up.
Back rounding sensor:
The highest position that corner rounding unit can reach. If so, back rounding sensor
would light on and the unit move backward against the top of the panel. When the unit
pass the panel and ready to move downward, back rounding sensor would light off and
the unit goes down.
