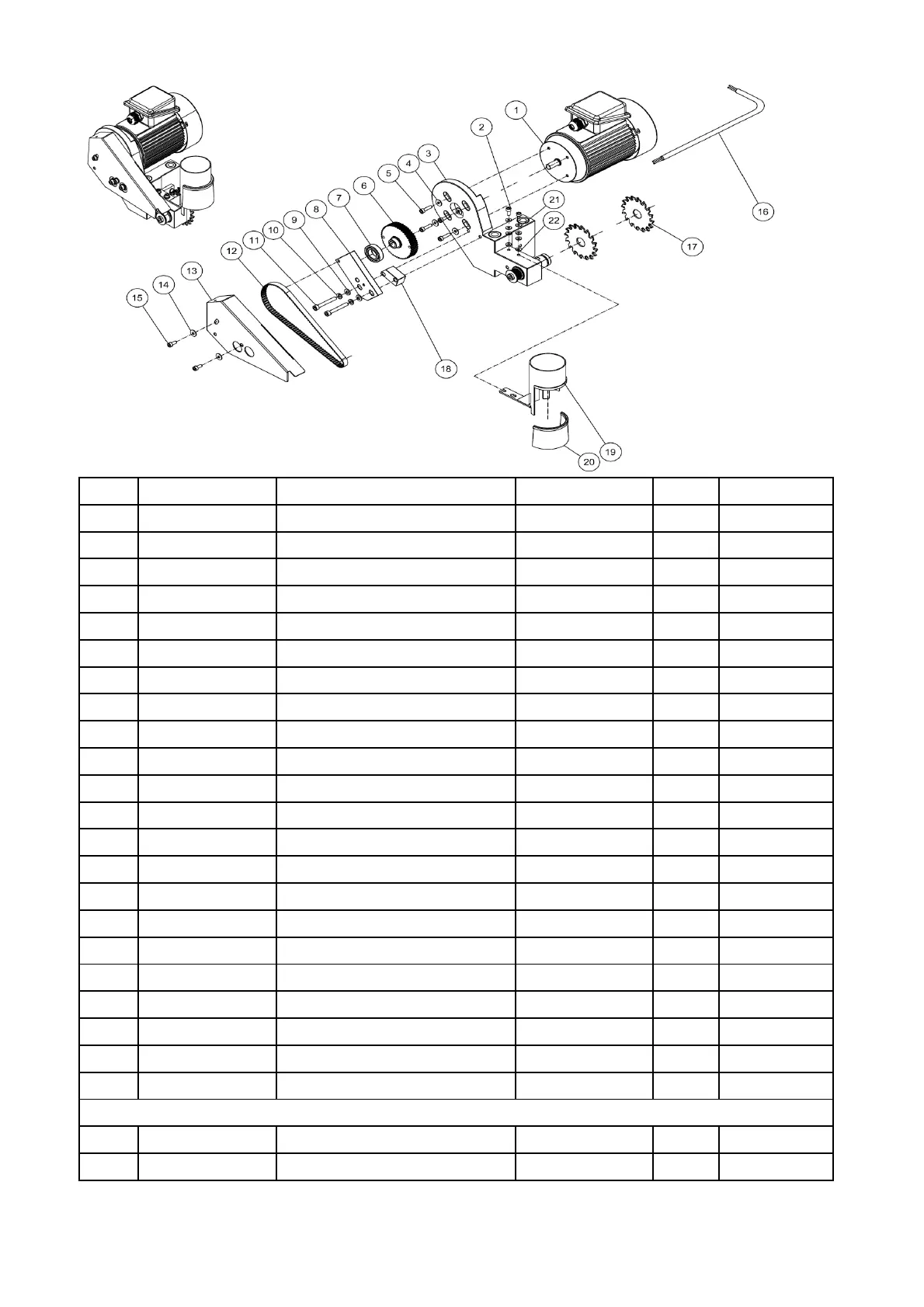

Cantek MX370M - Page 70

QCE340M12
ITEM PART NO PARTS NAME SIZE Q`TY NOTE
0010 MA721216-OPT Motor 1 220/380V 3PH
0020 SR059400 Hex. Socket Screw M5*0.8*16 2
0030 AB721224
Front And Rear Trimming Shaft
Asm.
1
0040 WF551010 Flat Washer 3/16"*φ10*t1 8
0050 SR059400 Hex. Socket Screw M5*0.8*16 4
0060 721214A Notched Pulley 1
0070 BB690404 Ball Bearing 6904LLB 1
0080 721212 Belt Adjust Block 1
0090 WF061920 Flat Washer M6xφ19 2
0100 WS060000 Spring Washer M6 2
0110 SR060800 Hex. Socket Screw M6*1*40 2
0120 721213 Timing Belt T5-500L10W 1
0130 721211A Belt Guard 1
0140 WF051210 Flat Washer M5*φ12 2
0150 SR059300 Hex. Socket Screw M5*12 2
0160 IM721001-OPT Front & Rear Trim Motor Wire 1 380V 3~ CE
0170 721985-OPT Saw Blade 16T t=3.2 2 80mm(φ20)
0180 721225-OPT Block 1
0190 721230A Dust Guard 1
0200 721231A Brush 1
0210 WF051210 Flat Washer M5*φ12 4
0220 721232 Disc washer φ12*φ5*0.6t*1.5t 4
9010 MA721216A Motor 1 220V 1PH
9160 IM721031 Front & Rear Trim Motor Wire 1 220V 1~ CE
Notice: Following parts are optional, and not in the diagram.
