8200-M585-O1 Rev D 210 Installation & Technical 111
PART IDENTIFICATION, CONT.

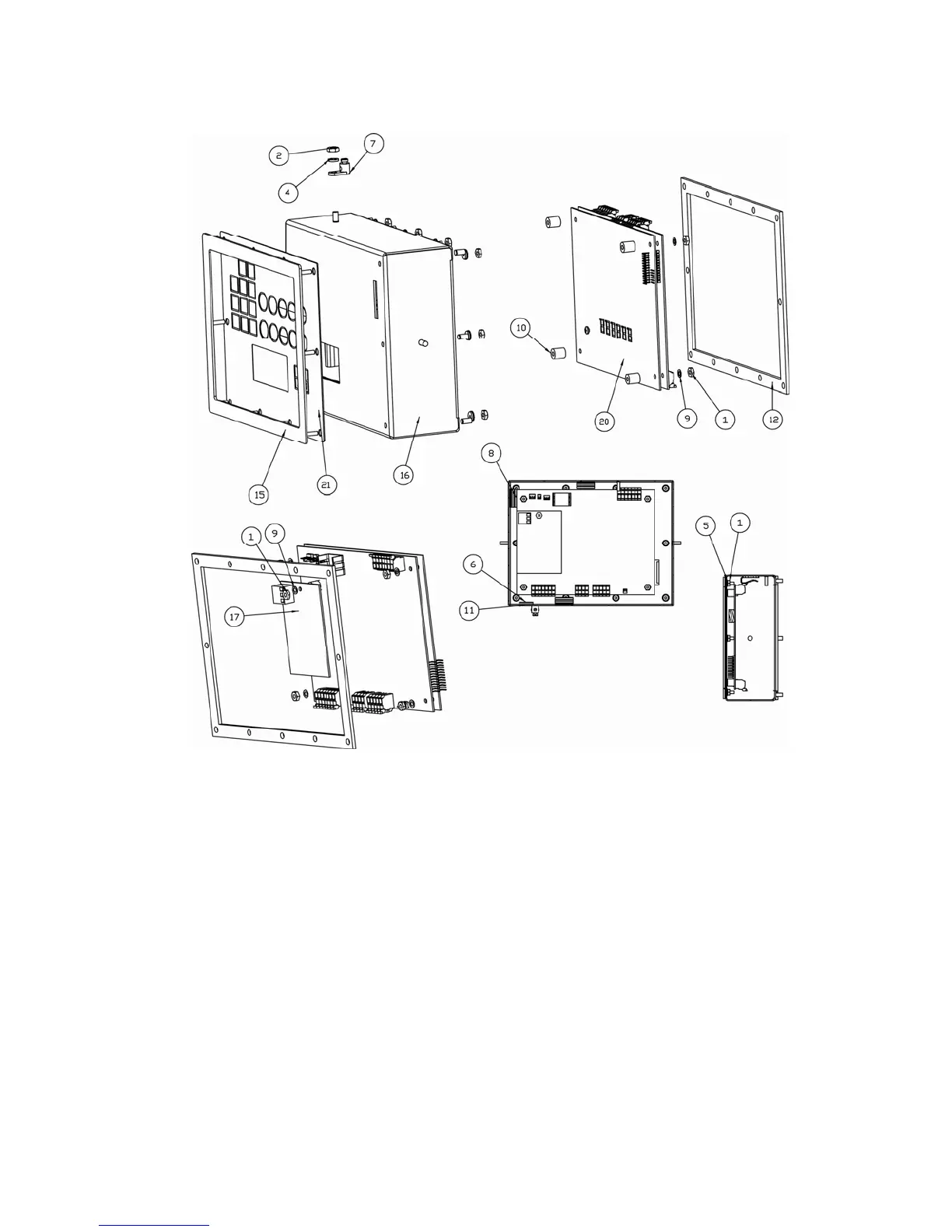

(Front Enclosure Sub Assembly)
ITEM NO. QTY. PART NUMBER DESCRIPTION
1 14 6013-0039 NUT HEX #6-32
2 1 6013-0297 NUT 10-32 HEX
4 1 6021-0623 SCW PAN HEAD #6-32 x .750 PDMS
5 10 6024-1078 WASHER FLAT #6 NEOPRENE BACKING S.S.
6 1 6560-0064 DESSICCANT 1 x 1 BAG
7 1 6610-5002 GROUND LUG
8 3 6610-5007 CABLE CLIP
9 4 6680-0004 WASHER LOCK INT. TOOTH #6 Z/P
10 4 6680-1049 SPACER (PCB) #6 x ..438
11 1 6710-1017 TAPE DBL SIDED 1.0 WIDE 45 MIL THK.
12 1 8200-B014-08 GASKET FOR 210 ENCLOSURE
15 1 8200-C015-0A WELDMENT: BEZEL FOR 210
16 1 8200-C017-0A WELDMENT: ENCLOSURE, FRONT
17 8200-C210-OA DAC PCB (OPTIONAL)
20 1 8200-D124-1A PC BD, ASSY. 210 MAIN
21 1 8200-D202-08 KEYPAD: 210 DWI
