8200-M585-O1 Rev D 210 Installation & Technical 112

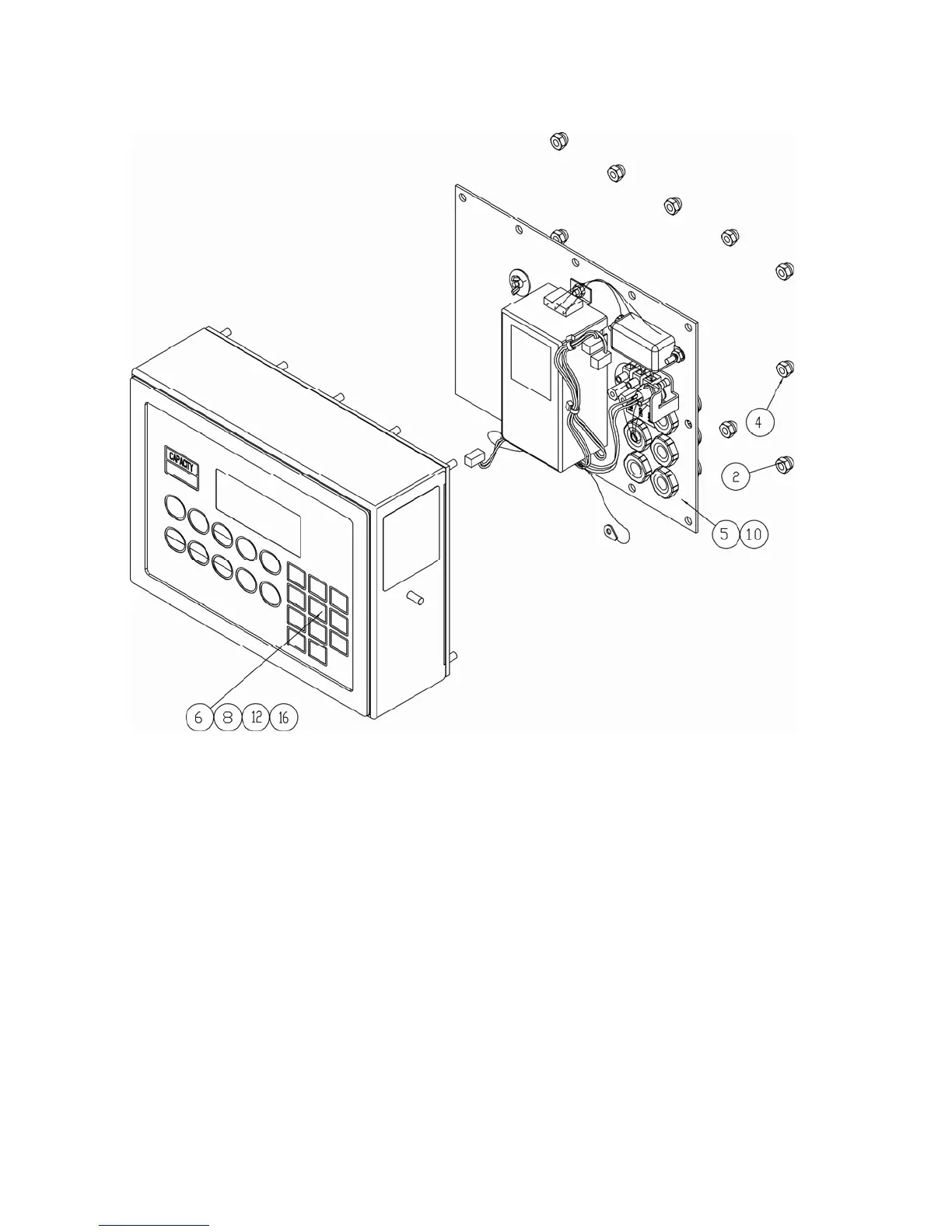

PART IDENTIFICATION, CONT.
(Final Assembly)
ITEM NO. QTY. PART NUMBER DESCRIPTION
2 11 6013-0433 NUT HEX #10-32 ACORN S.S.
4 1 8200-B026-08 NUT HEX #10-32 ACORN S.S. DRILLED
5 1 8200-D207-0A SUB ASSEMBLY: REAR ENCLOSURE (210, 210-A)
6 1 8200-D208-0A SUB ASSEMBLY: FRONT (210)
8 1 8200-D208-2A SUB ASSEMBLY: FRONT (210-A)
10 1 8200-D207-1A SUB ASSEMBLY: REAR ENCLOSURE (210EU)
10 1 8200-C247-0A SUB ASSEMBLY: REAR ENCLOSURE (210DC)
12 1 8200-D208-5A SUB ASSEMBLY: FRONT (210DC)
16 1 8200-D208-9A SUB ASSEMBLY: FRONT (210EU)
To Next Page
