Livellamento dell’attacco
ATTENZIONE: attenersi alle dimensioni
specicate.

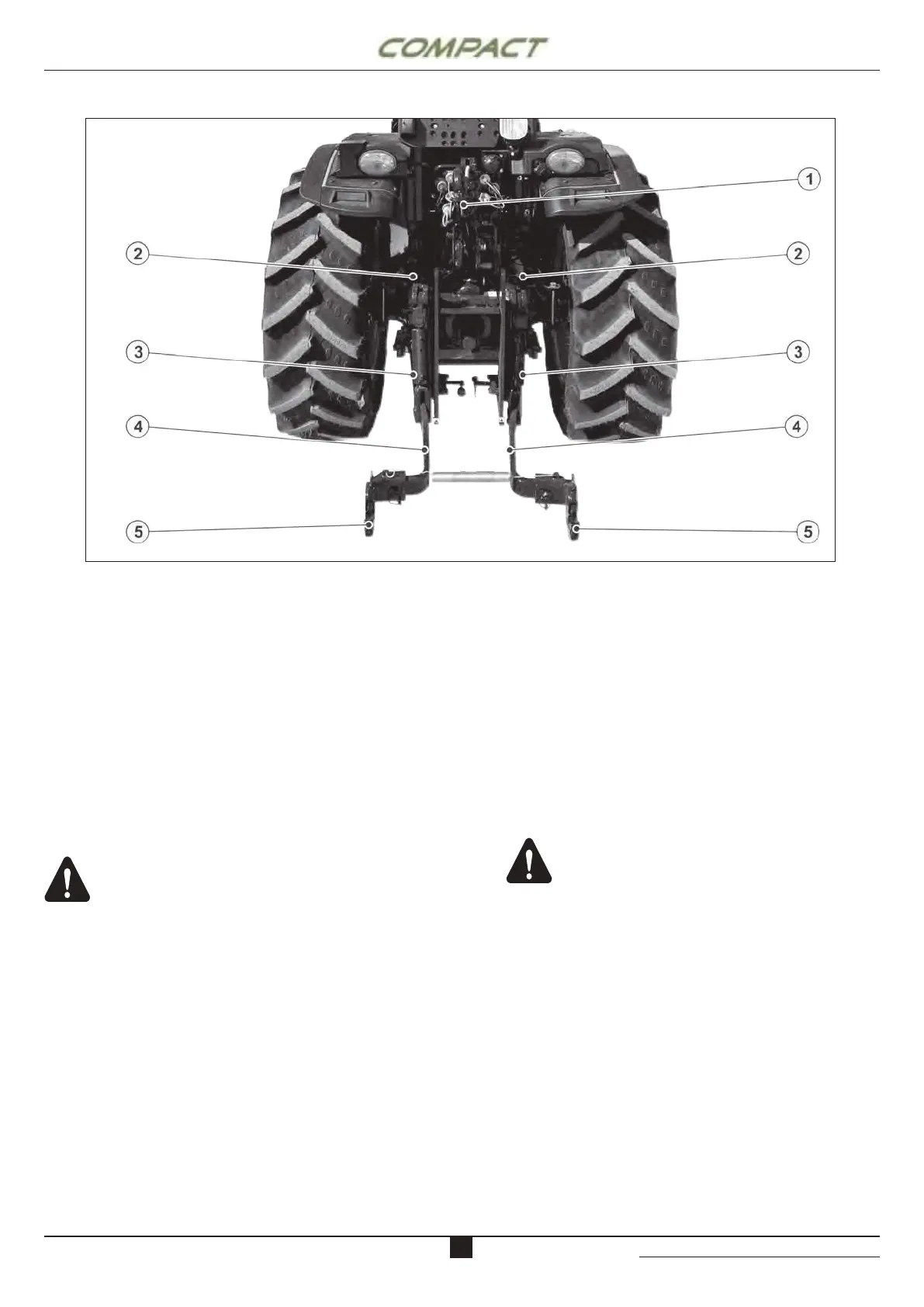

1. Third-point hitch pull rod
2. Lifting arms
3. Lifting links
4. Stabilisers
5. Draft links
The third point hitch allows control of position and
towing of implements for soil cultivation. This anchor
point was designed to meet category II requirements,
and is convertible into category I.
Levelling hitch
CAUTION: comply with specied
dimensions.
Adjusting implement tilt angle with respect to the
ground is accomplished by adjusting the length of the
third-point. Shorten the third-point to increase tilt angle,
or lengthen it to decrease it.
Usually, with bottom links in horizontal position, the
upper link rear end should tilt upward. The xing of
the third point on the tractor can be performed in three
dierent positions.
