5.40 USO DEI COMANDI DEI DISTRIBUTORI
AUSILIARI
Each lever can take the positions shown in the gure:
N = neutral position
A = oating position
B = jack input position
C = jack output position

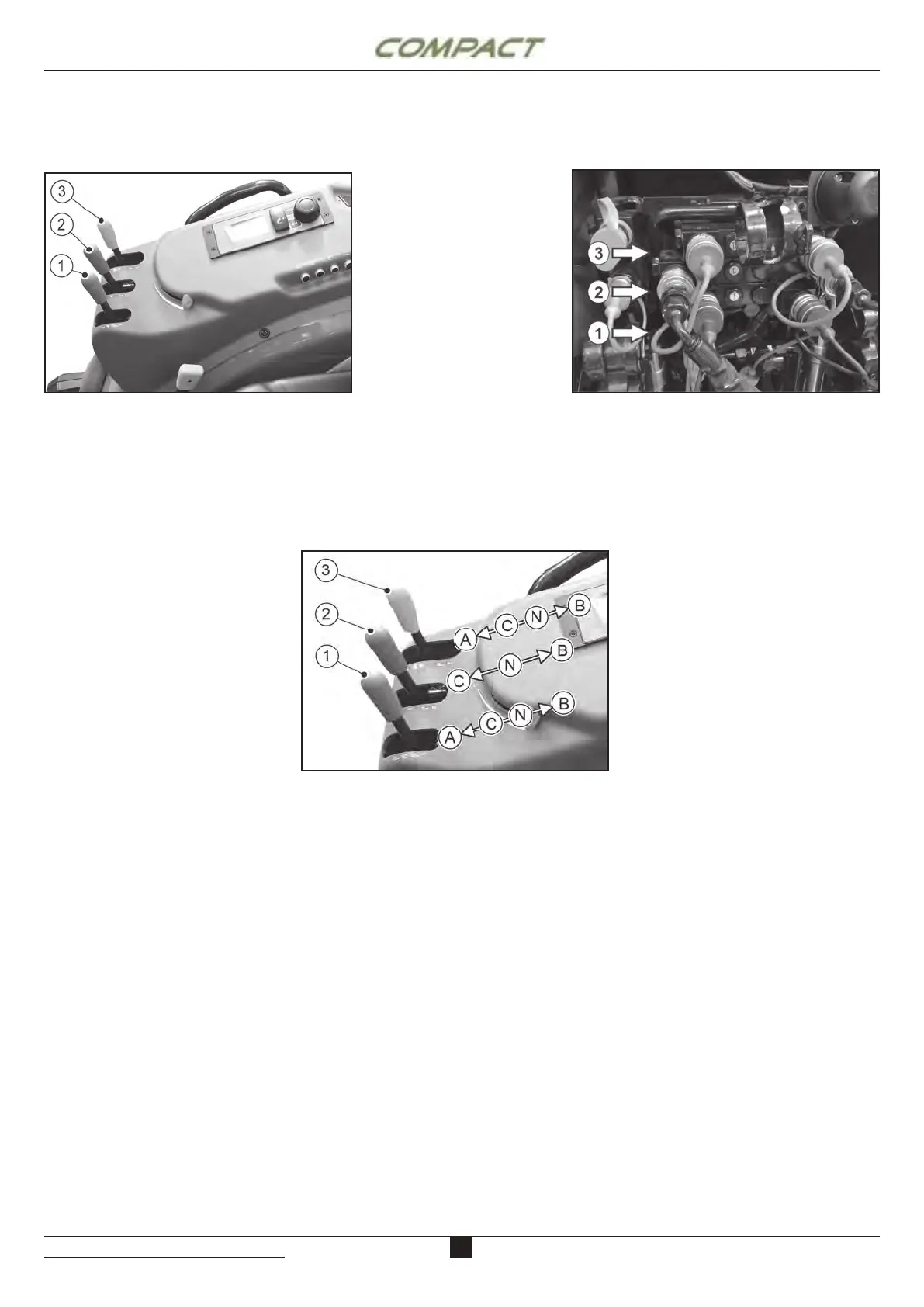

the control levers (1), (2) and (3) of the rear hydraulic
distributors operate the respective quick couplings (1),
(2) and (3).
The colors of the control levers are the same that
identify the corresponding the rear quick couplers.
5.40 USING AUXILIARY DISTRIBUTORS
CONTROLS
