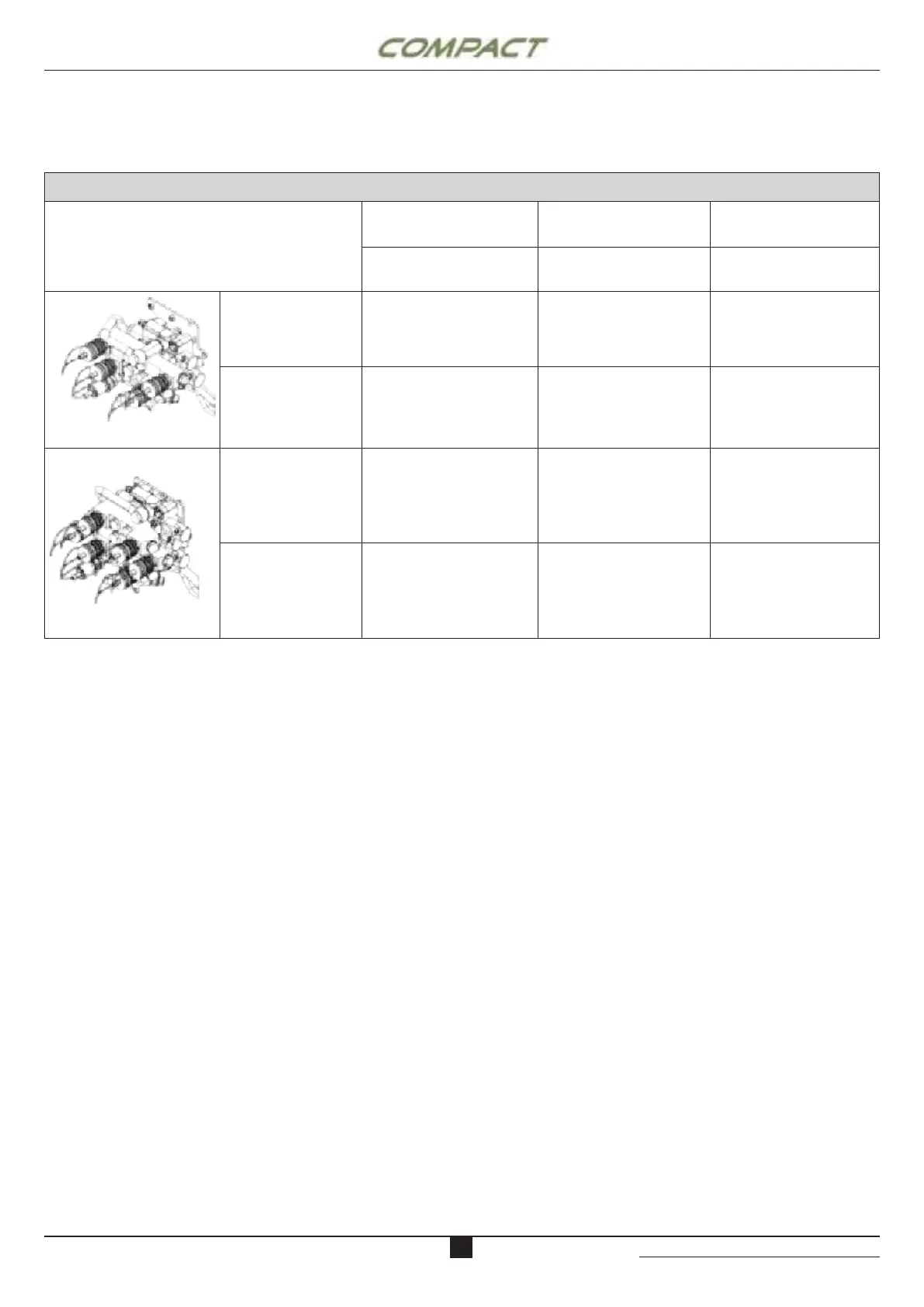

COMBINAZIONE DEI DISTRIBUTORI POSTERIORI / REAR DISTRIBUTORS COMBINATION
DISTRIBUTORE 1 DISTRIBUTORE 2 DISTRIBUTORE 3
DISTRIBUTOR 1 DISTRIBUTOR 2 DISTRIBUTOR 3



 󰀨
󰀨
 

 󰀨
󰀨
 
Combination with 2
distributors
Mechanical distributor:
- Simple-acting and
double-acting
- 3 positions lever
Mechanical distributor:
- Simple-acting and
double-acting
- 3 positions lever



 󰀨
󰀨
 
 

 󰀨
󰀨
 

 󰀨
󰀨
 
Combination with 3
distributors
Mechanical distributor:
- Simple-acting and
double-acting
- Floating
- 4 positions lever
Mechanical distributor:
- Simple-acting and
double-acting
- 3 positions lever
Mechanical distributor:
- Simple-acting and
double-acting
- 3 positions lever
