revision 0 date: 07/19 doc. AG525990
Aggancio
Sgancio
-Hitching
Oer up the tractor to the implement.

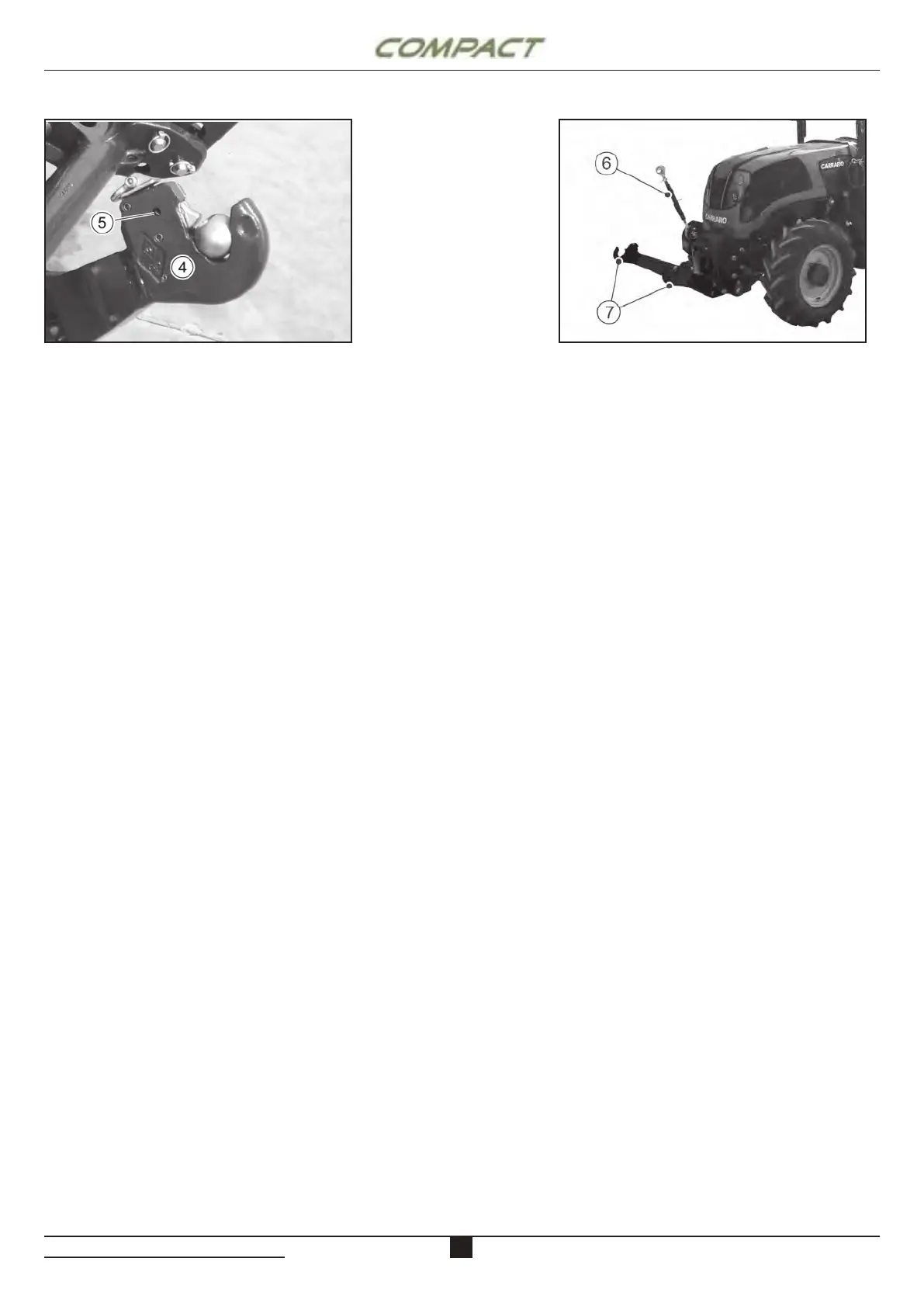

- Raise the front lift arms until the automatic hooks
(4) are locked.
- Lower the front lift arms.
- Place the top link hitch over the implement's hitch
pin.
- Depending on the equipment (refer to the
operator's manual for the implement):
- Connect the transmission shaft linking the
implement to the tractor.
- Connect the implement's hydraulic hoses.
- Connect the implement's electrical cables.
- In particular working conditions (oset
implements, rough terrain, fallow, etc.), the
automatic hooks can be locked in position by
inserting a screw at (5).
Unhitching
- Position the tractor and the hitched implement on
at, horizontal and stable ground.
- Lower the implement to the ground.
- Depending on the equipment (refer to the
operator’s manual for the implement):
- Disconnect the implement’s hydraulic hoses.
- Disconnect the implement’s electrical cables.
- Disconnect the transmission shaft linking the
implement to the tractor.
- Detach the top link.
- Raise the implement slightly.
- Unlock the hooks (4) from the lower connecting rods.
- Lower the hitch until the hooks (4) disengage.
When the front linkage is no longer in use:
- Place the top link (6) and the front lift arms (7)
in the “road” position when travelling on public
roads.
- Comply with the highway code in your country.
