5
revision 0 date: 07/19 doc. AG525990

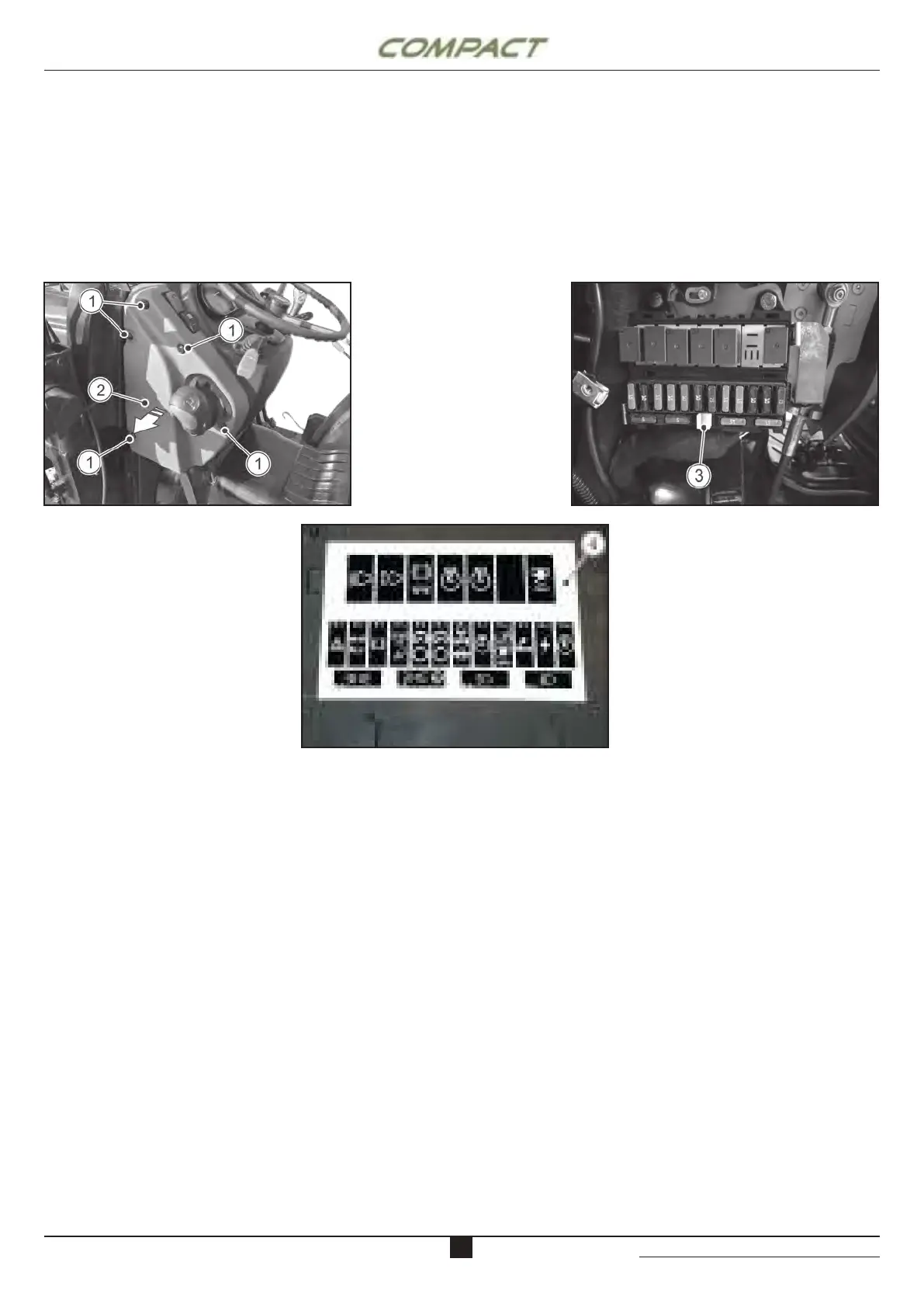

To reach the main fusebox (3), loosen screws (1) and
remove casing (2) located under the LH panel of the
dash panel.
Behind the cover there is a label (4) with graphic
information on the circuit covered by each fuse.
Ubicazione della scatola fusibili principale: Main fusebox location and layout:
