6
revision 0 date: 07/19 doc. AG525990
6.8 ELECTRICAL SYSTEM AND INSTRUMENTS
PANEL MAINTENANCE
Electric system maintenance- battery
6.8 MANUTENZIONE IMPIANTO ELETTRICO E
PANNELLO STRUMENTI
Manutenzione dell’impianto elettrico - batteria
Nota: Attendere alcuni secondi, dopo aver agito
sull’interruttore, per consentire il corretto stacco
della batteria.
The battery is located at the rear end of the tractor.

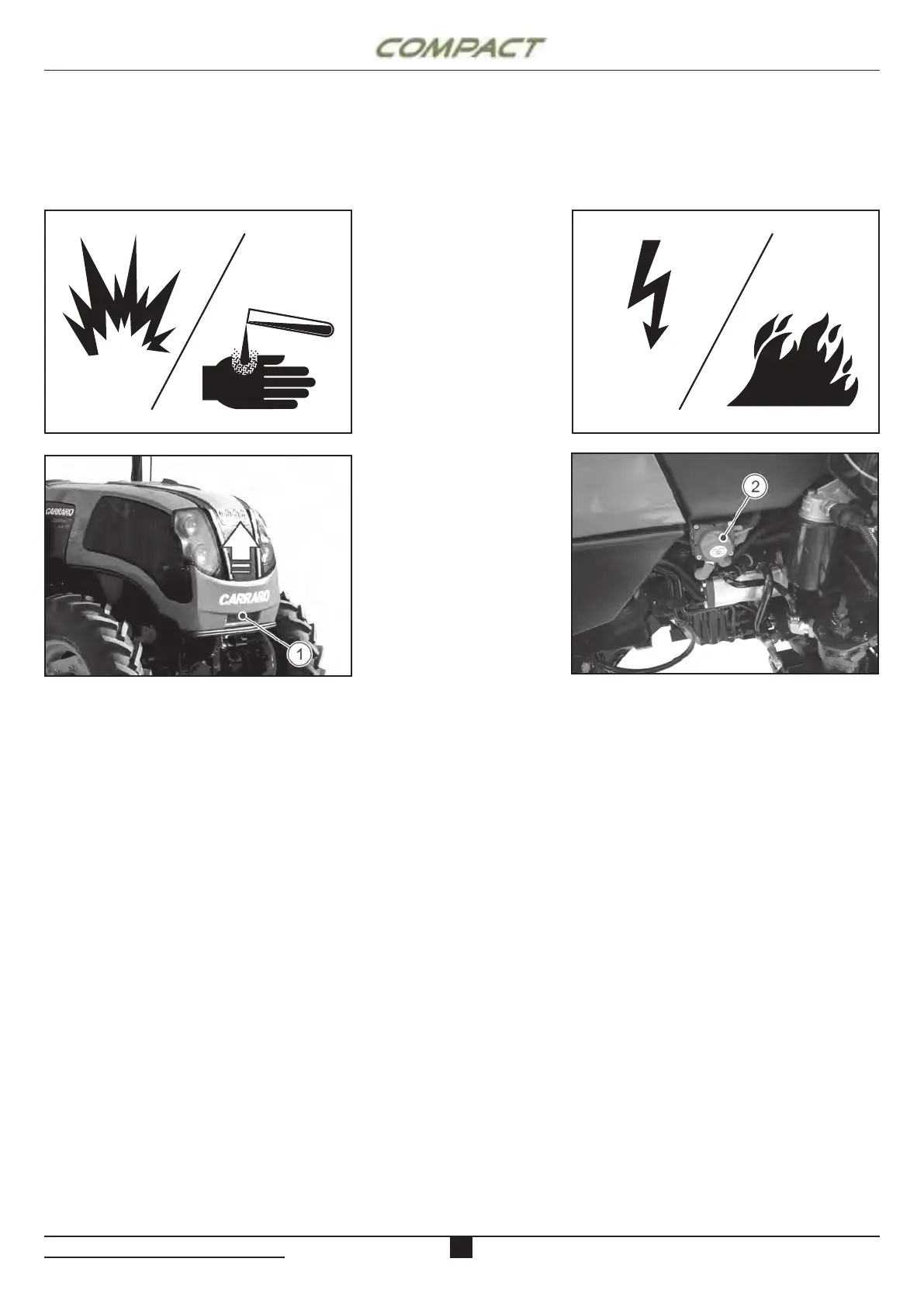

Gain access to battery as follows:
- Open the bonnet (1)
Before working on battery, proceed as follows:
- switch o the rear work lights (cab version)
- switch o the revolving light
- switch o the lights
- Disconnect the battery through the battery cut-o
switch (2).
Note: Wait for few second, after switch operation,
for allow disconnect the battery.
Cleaning and inspecting the battery
Clean battery using a damp cloth. Clean and tighten
connections if necessary.
