d None – No outdoor unit installed
NOTE: For some communicating products (SPP and geothermal), the selection
screen may not be needed and may not appear.

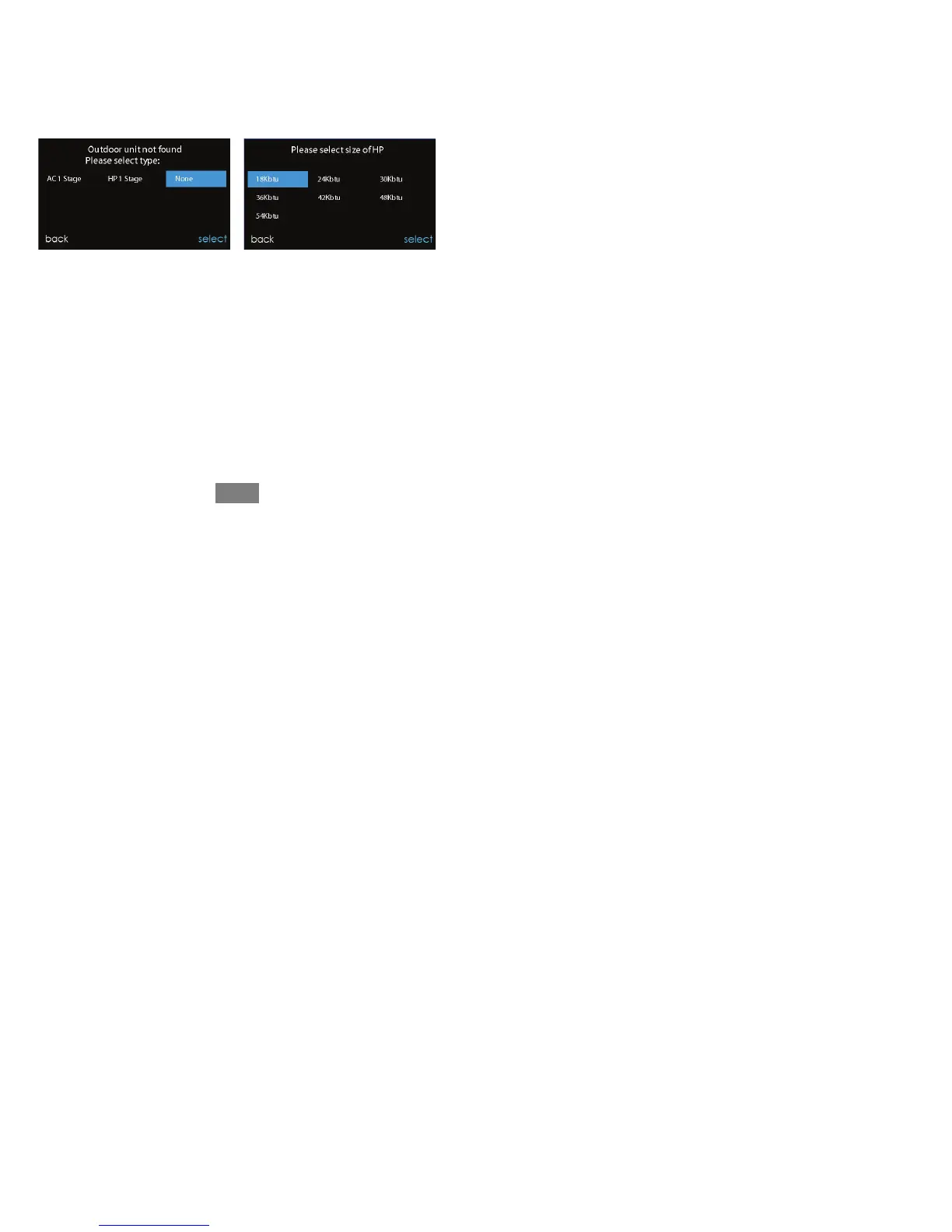

S The installer will first be instructed to select the appropriate size of the outdoor
unit; then, touch SELECT.
*Network Interference Module (NIM) may be required for these selections to be displayed.
A13118
5.3. Indoor Evaporator Selection
If a furnace is installed with a variable capacity heat pump or an 18VS heat pump or
19VS air conditioner, a screen will appear to select the installed indoor evaporator
coil. This selection is used to adequately calculate the refrigerant charge required
while in the heat pump charging screens under Refrigerant Charging, Section 6.6.
Select “other” for non--Carrier evaporators.
5.4. Electric Heater Selection
If the indoor equipment is a fan coil, the control will display “Searching for heater”
until one is found. If the electric heater is not self--identifying, the select heater
screen will appear. Touch the appropriate heater size; then, touch SELECT.
