Carrier SYSTXCCITN01-A User Manual

85
A
B
C
D
Zone Control
User Interface &
Smart Sensor(s)
Green
Yellow
White
Red
OAT
HUM
COM
24V
Humidifier
Connection
A
B
C
D
OAT
Sensor
(Optional)
A B C D A B C D
Damper
Control
module
A B C D
Indoor
Unit
Communicating
AC or HP
A04018

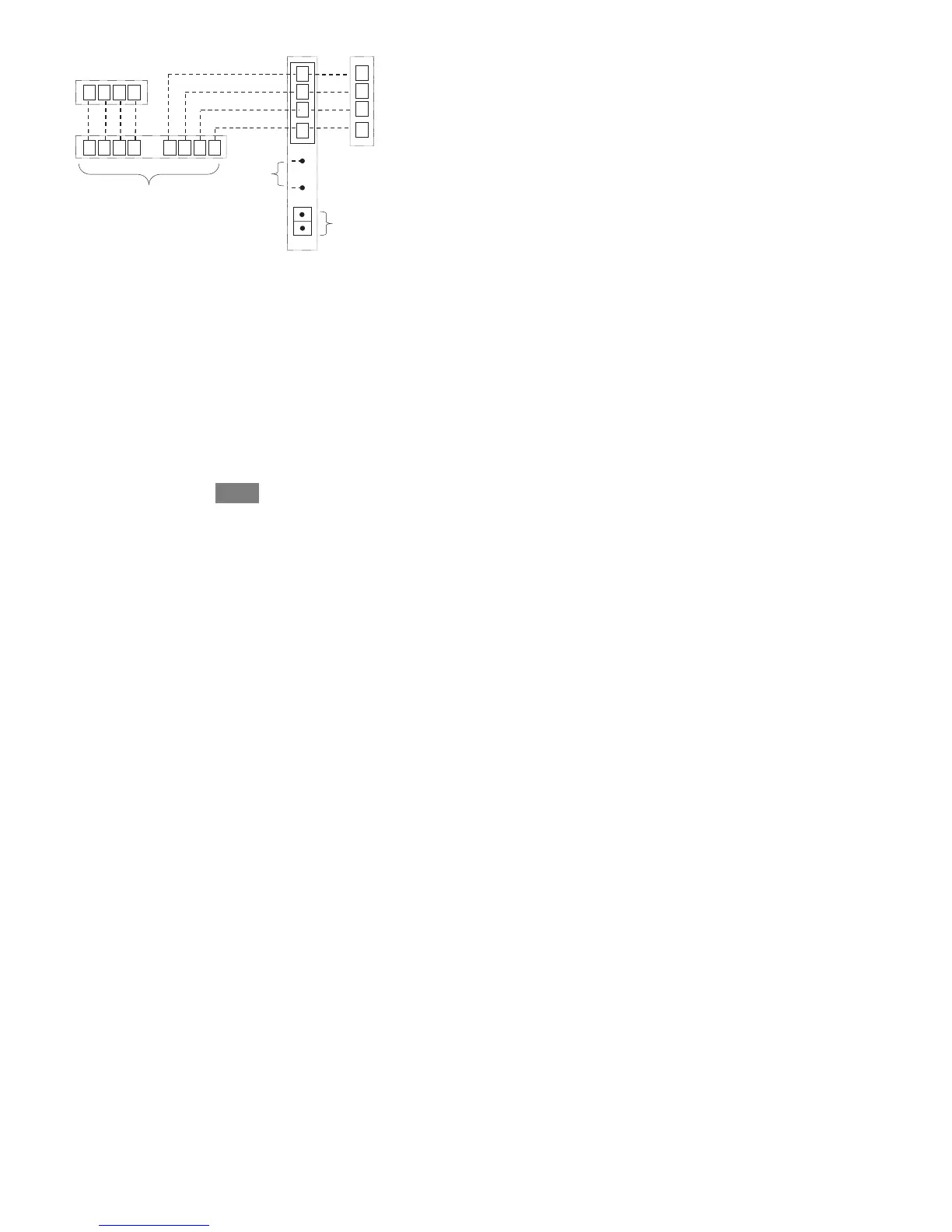

Zoning Connection for Communicating Indoor Unit with
2--Stage Communicating Outdoor Unit
NOTE: Some outdoor units do not require “C” and “D” connections. Please see
outdoor unit Installation Instructions.

Carrier SYSTXCCITN01-A Specifications

General

Brand	Carrier
Model	SYSTXCCITN01-A
Category	Thermostat
Language	English
