4-OPERATINGINSTRUCTIONS

Passwordchange

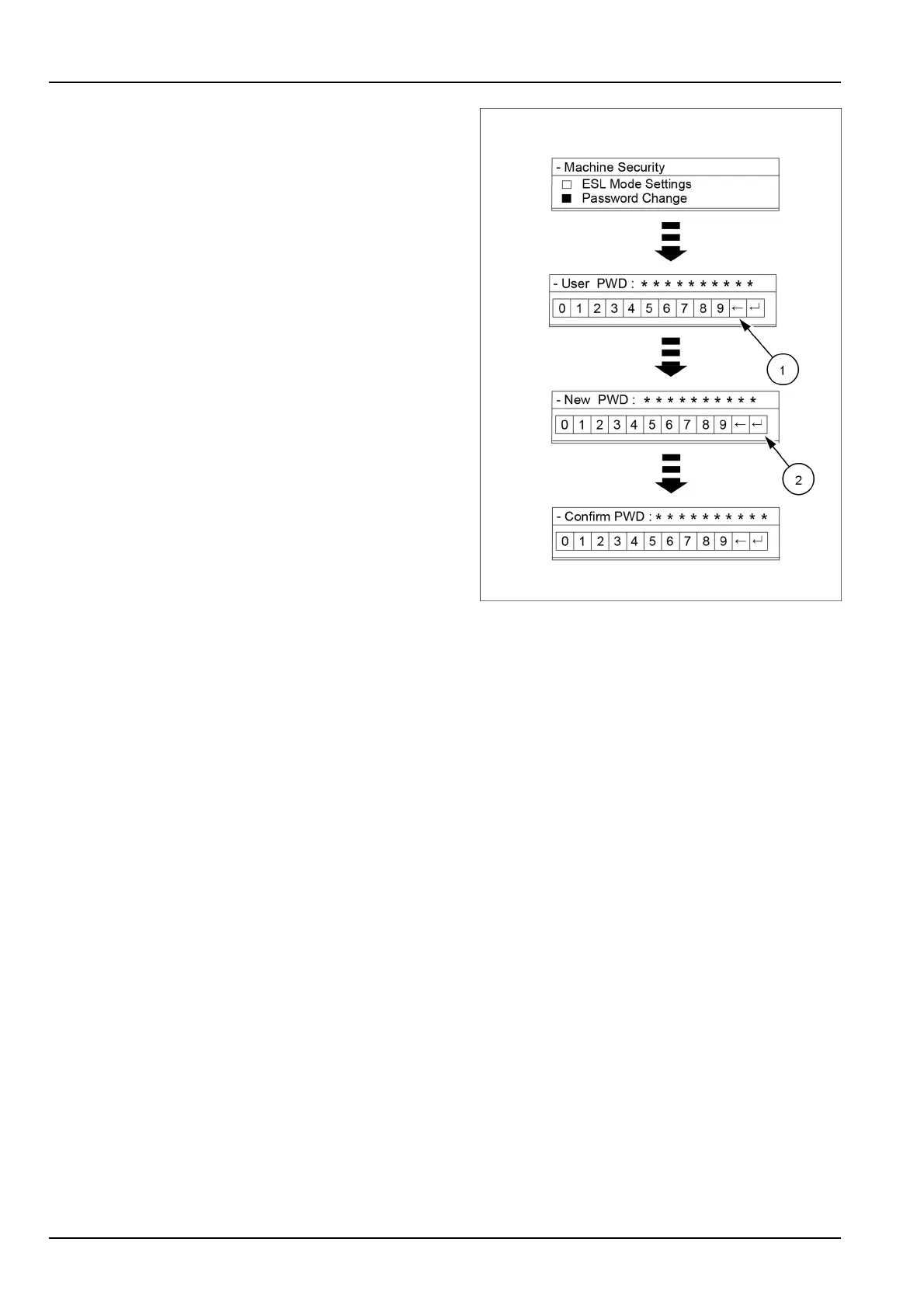

Tochangethepassword,input5to10digitsandpress

Enter.

1.Delete

2.Enter

NOTE:thedefaultpasswordis00000

NOTICE:Iftheoperatorforgotorlostthepasswordcon-

tactyourauthorizedCASECONSTRUCTIONdealer.

SMIL16MEX0384AA2
