3-CONTROLSANDINSTRUMENTS

Ventilationandheating

SMIL16MEX0387FB1

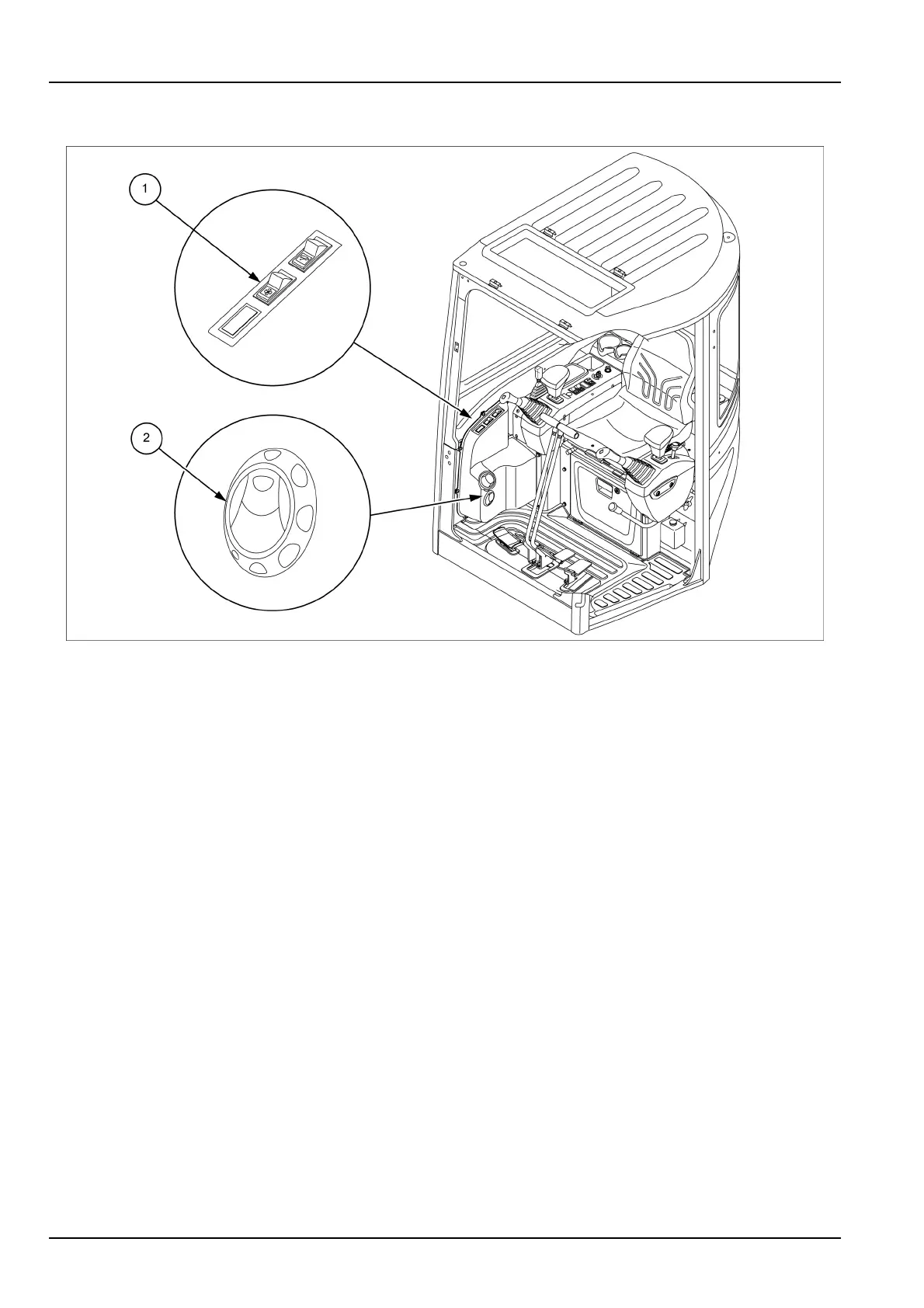

Theheaterswitch(1)activatestwodifferentspeedsof

ventilation.

Therststepactivatesthelowfanspeedofventilation.

Thesecondstepactivatesthehighfanspeedofventila-

tion.

Theoutletcontrollouvers(2)allowstheoperatortocontrol

thedirectionofair.

Theoutletcontrollouverscanbeclosedoropen.

3-24
