CASE CONSTRUCTION CX26C - Battery Disconnect Switch

3-CONTROLSANDINSTRUMENTS

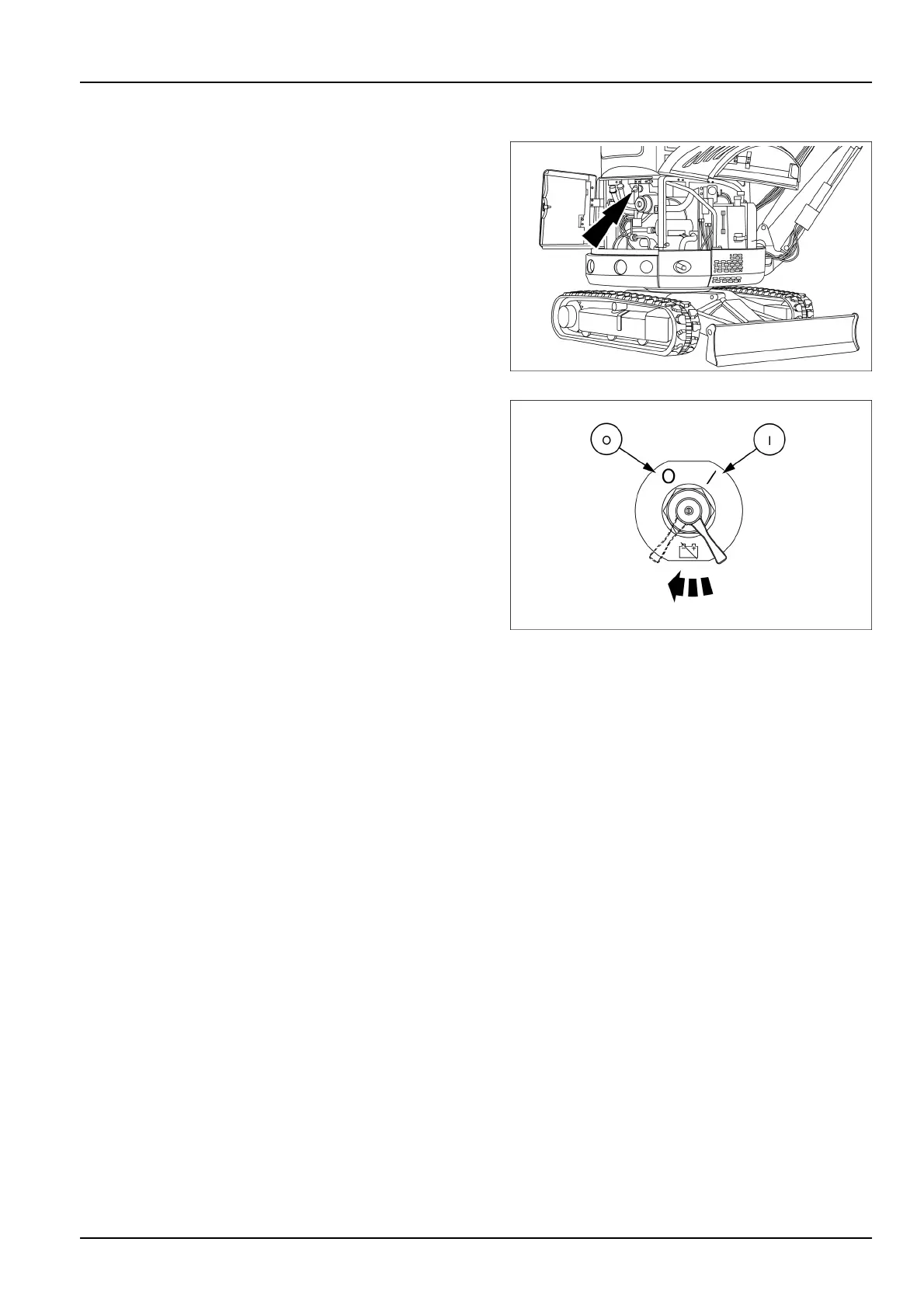

Batterydisconnectswitch
Thebatterydisconnectswitchislocatedintheengine
compartment.Opentheengineaccessdoortoaccess
tothebatterydisconnectswitch.
Thebatterydisconnectswitchallowstocutoffanypower
supplyintheelectricalsystemofthemachine.
NOTE:whentheswitchisturnedtoOFFposition,allelec-
tricalcircuitsarecutoffandthestationsstoredonthera-
diopresetsandthetimesetfortheclockwillbecleared.
SMIL16MEX0435AA1
Placethebatterydisconnectswitchinthe(I)positiondur-
ingnormaloperation.
Placethebatterydisconnectswitchinthe(O)position
onlyduringthefollowingoperations:
•
Batteryremoval
•
Electricalsystemconnectorremoval
•
Electricalsystemservice
•
Long-termstorage
•
Asrequiredforinspectionsandrepairs
•
Welding
NOTICE:neverturnthebatterydisconnectswitchto(O)
positionwiththeenginerunning.Thiscoulddamagethe
electricalsystem.
NOTICE:neverturnthebatterydisconnectswitchto(O)
positionwithin3minafterthestarterkeyisturnedoff.The
machinecontrolsystemandtheenginecontrolsystemwill
bedamaged.
SMIL16MEX0410AA2
3-43
