CASE CONSTRUCTION CX26C - Right-hand Side Controls

3-CONTROLSANDINSTRUMENTS
Right-handsidecontrols
Right-handsidecontrols

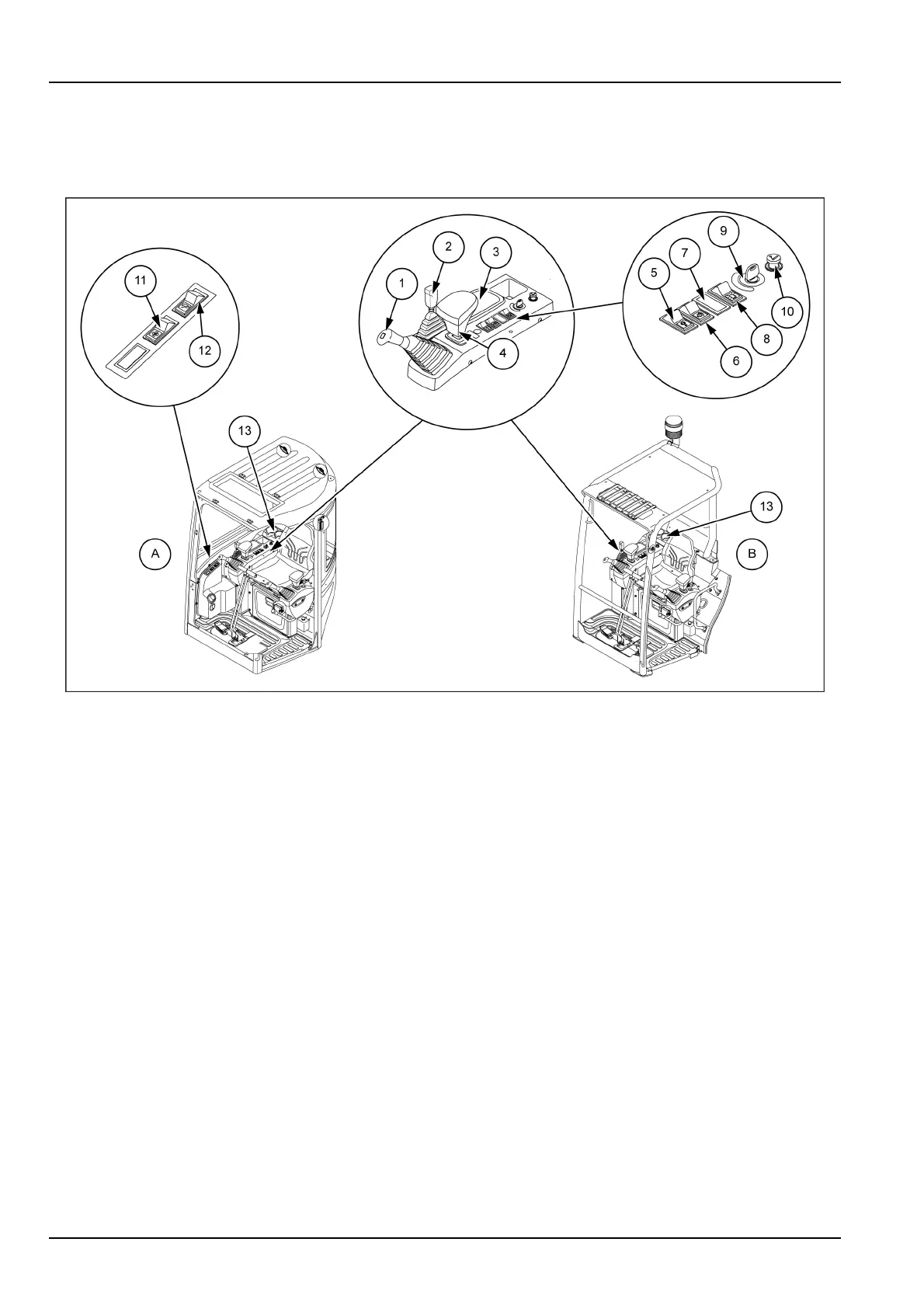

SMIL16MEX2729FB1
(A)Cabversion
(B)Canopyversion
(1)Right–handcontrollever(refertopage3-6)andhorn
push–button.Pressandmaintainpressedthepush-but-
tontoactivatethehorn.
(2)Dozerbladecontrollever(refertopage3-18)
(3)Instrumentcluster(refertopage3-19)
(4)Armrest
(5)Overloadwarningswitch(optional)
(6)Travelalarmswitch(optional)
(7)Spare
(8)Beaconswitch(optional)(refertopage9-37).
(9)Starterswitch
(10)Cigarettelighterand12Vpowersupplysocket:the
deviceisactivewiththestarterkeyinONposition,or
whiletheengineisrunning.
Tooperatethecigarettelighter,pushitdowntoengage
itsheatingposition.
NOTICE:ifyoucontinuouslypushinthecigarettelighter,
youcancauseseriousdamagetothedeviceandthema-
chineelectricalsystem.
NOTICE:connectonly12V,120Wdevicestothesocket.
Connectingdevicesfunctioningatdifferentvoltagecan
causedamagestothedeviceitselfandtotheelectrical
system.
(11)Heaterswitch(cabversiononly)(refertopage3-24).
(12)Washer/wiperswitch(cabversiononly)
(13)Beveragecanholder
