CASE CONSTRUCTION CX26C - Operators Seat Adjustments

3-CONTROLSANDINSTRUMENTS

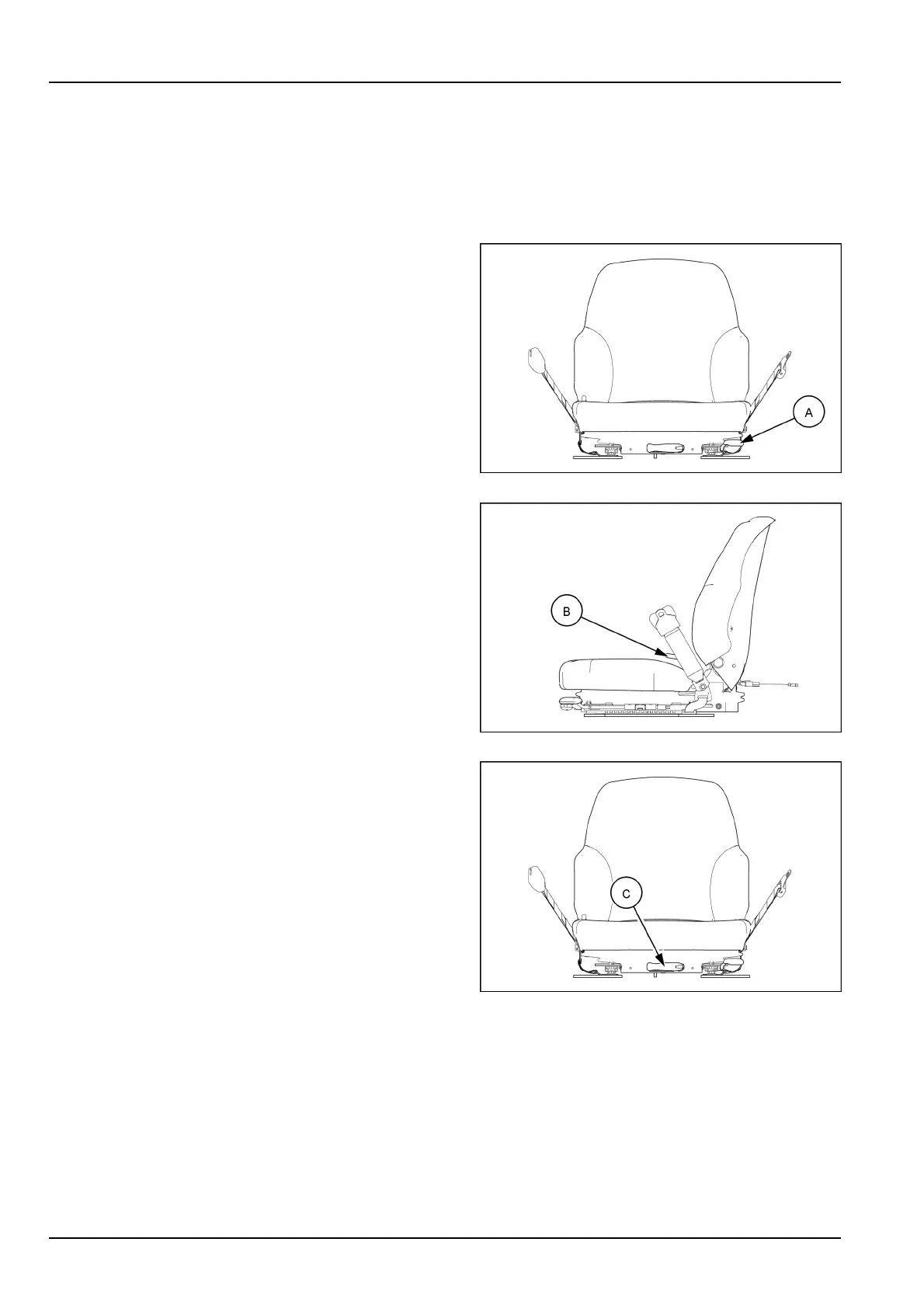

Operator'sseat
Operator'sseat
Inordertooperatethemachinecorrectlyandwithmaximumefciencyandcomfort,adjusttheseattosuittheweight
andsizeoftheoperator.
Foreandaftadjustment
•
Holdthelever(A)intheraisedposition.
•
Slidetheseattotherequiredposition.
•
Releasethelever(A).
NOTE:theseatcanbepositionedoverarangeof
52mm(2in).
SMIL16MEX0033AA1
Seatbackangleadjustment
•
Holdthelever(B)intheraisedposition.
•
Movewiththeseat-backtothedesiredposition.
•
Releasethelever(B).
NOTE:theseatbackcanbeadjustedoverarangeof
-5–25°,with18lockingpositions.
SMIL16MEX0034AA2
Weightadjustment
•
Lowerthelever(C)todecreasetherigidityofthesus-
pension.
•
Raisethelever(C)toobtainhardersuspension.
NOTE:theweightadjustmentisforalloperatorweights
between45–136kg(99–300lb).
SMIL16MEX0033AA3
3-4
