CASE CONSTRUCTION CX26C - Instrument Cluster Functions

3-CONTROLSANDINSTRUMENTS
Instrumentcluster
Theinstrumentclusterconsistsofgaugesandlightsas
shownbelow,towarntheoperatorincaseofabnormal
machineoperationorconditionsfortheappropriateoper-
ationandinspection.
Gauges:indicateoperatingstatusofthemachine.
Warninglights:indicateabnormalityofthemachine(red).
Pilotlights:indicateoperatingstatusofthemachine.
NOTE:theclusterinstalledonthismachinedoesnoten-
tirelyguaranteetheconditionofthemachine.Dailyin-
spectionshouldbeperformed.Whentheclusterprovides
awarning,immediatelychecktheproblemandperform
therequiredaction

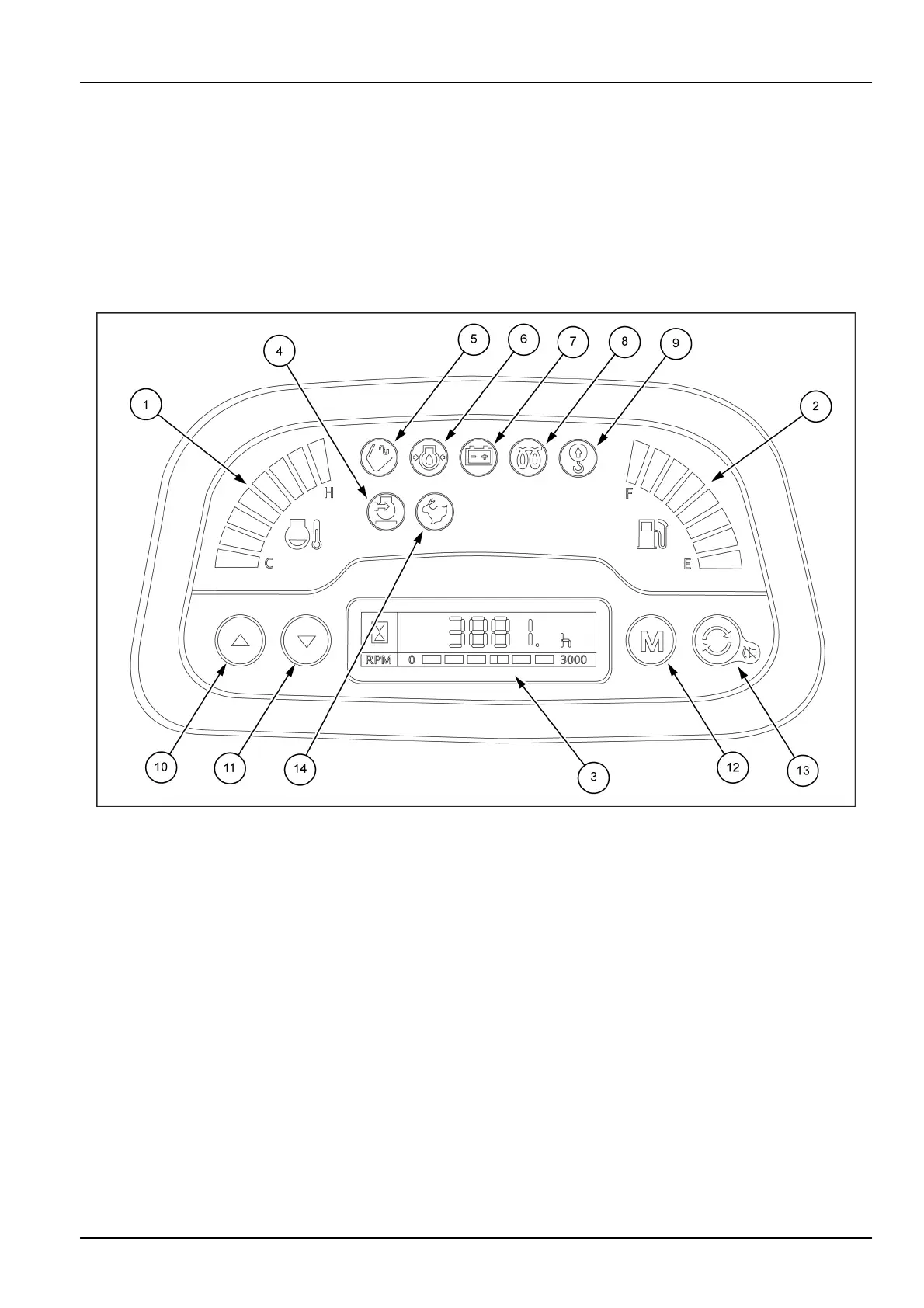

SMIL16MEX1500FB1
1.Enginecoolanttemperaturegauge8.Enginepre-heatpilotlight
2.Fuelgauge
9.Overloadwarninglight
3.Maindisplay
10.Up/left–handbutton
4.Aircleanerwarninglight
11.Down/right–handbutton
5.Hydraulicquickcouplerunlockpilotlight12.Menubutton
6.Engineoilpressurewarninglight13.Enterandbuzzerstopbutton
7.Batterychargingwarninglight14.Highspeedtravellight
3-19
