CASE CONSTRUCTION CX26C - Machine Dimensions

8-SPECIFICATIONS

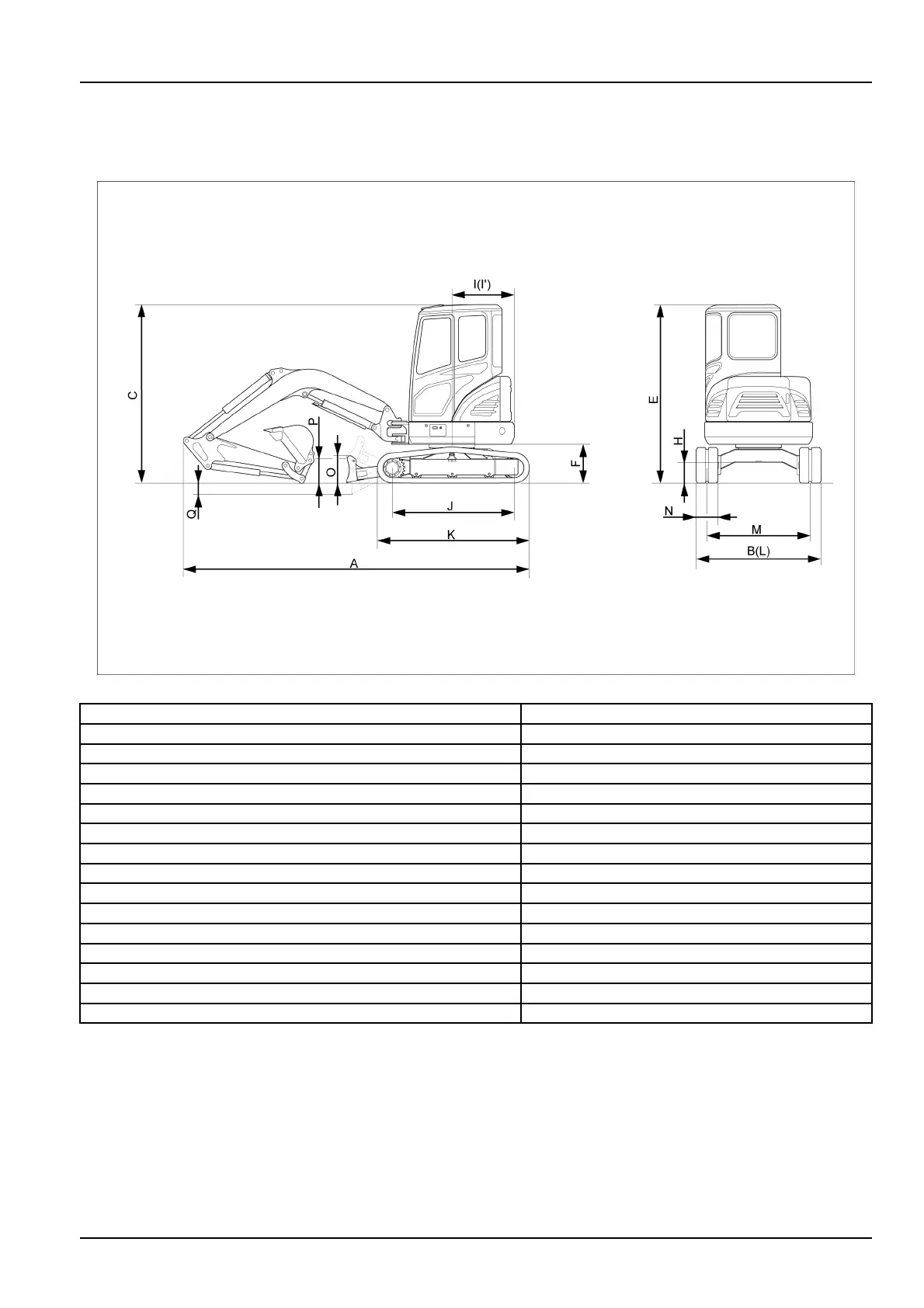

Dimensions
Cabversion
SMIL16MEX0048FA1
(A)Overalllength4030mm(158.7in)
(B)Overallwidth,with250mm(9.8in)shoe1500mm(59.1in)
(C)Overallheight2500mm(98.4in)
(E)Overallheightofcab2500mm(98.4in)
(F)Groundclearanceofcounterweight510mm(20.1in)
(H)Minimumgroundclearance290mm(11.4in)
(I)Rear-enddistance775mm(30.5in)
(I’)Rear-endswingradius775mm(30.5in)
(J)Distancebetweentumblers1490mm(58.7in)
(K)Undercarriagelength1910mm(75.2in)
(L)Undercarriagewidth1500mm(59.1in)
(M)Trackgauge1250mm(49.2in)
(N)Trackshoewidth,standard250mm(9.8in)
(O)Heightofblade300mm(11.8in)
(P)Groundclearanceofbladeup330mm(13.0in)
(Q)Depthofbladedown380mm(15.0in)
Boomlength:1.945m(76.575in)
Armlength:1.120m(44.094in)
Withboomswingpost
8-3
