Greasepoints(Boomandarm)
Greasetheboom,thearmandtheswingsystemevery250h.
Lubricant:CASEAKCELAMOLYGREASE
SMIL16MEX0420FA1

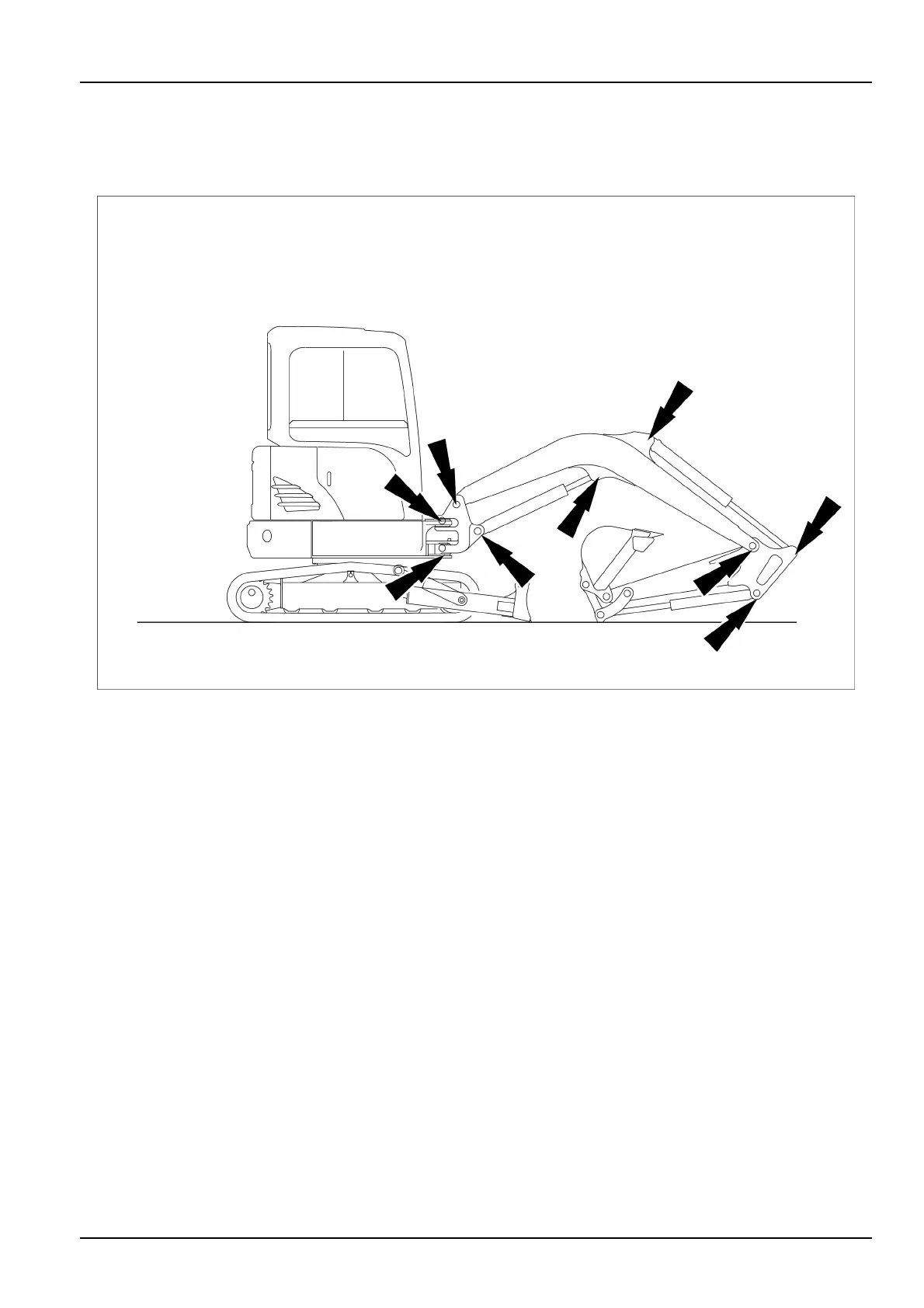

Boomcylinderpin(head):onegreasetting
Boomconnectionpin:twogreasettings
Boomcylinder(headandrodside):twogreasettings
Armcylinderpin(headandrodside):twogreasettings
Boomandarmconnectionpin:onegreasetting
Boomswingcylinder(headandrodside):twogrease
ttings
Swingpostconnectionpins:twogreasettings
NOTICE:ifyouoperatethemachineinwaterormud,you
mustlubricatetheboom,thearmandtheswingsystem
every10h.
