CASE CONSTRUCTION CX26C - Fan and Alternator Drive Belt

6-MAINTENANCE

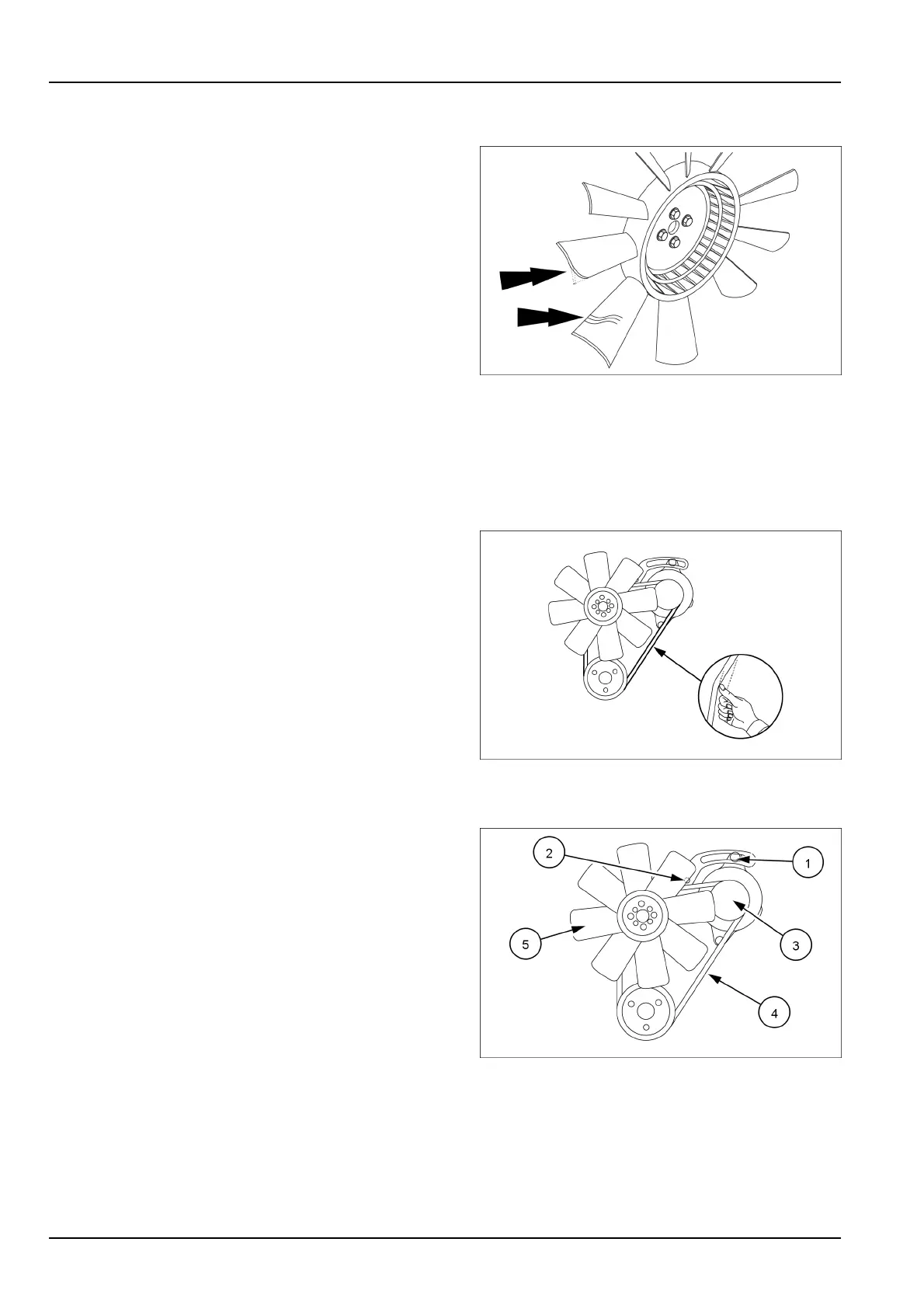

Fanandalternatordrivebelt
Performavisualinspectionofthefanevery10hor
everyday.Checkforcracks,looserivets,andbentor
looseblades.
SMIL16MEX0436AA1
Checkthebelttensionevery10horeveryday.
NOTICE:Operatingtheenginewithloosenedbeltmaycauseoverheatoftheengineorinsufcientchargingofthe
batteryduetoslippingbeltinitshousing.
Inspectionoftension
1.Applyngerpressureofabout10kg(22.0lb)atthe
midpointofthebelt,betweenthealternatorpulleyand
thecrankshaftpulley,whiletheengineisshutdownand
thestarterkeyisremoved.
2.Beltdeectionshouldbeabout7–9mm(0.3–0.4in).
NOTE:checkanyindicationofdamageonthepulleyorbelt
duetowear.Checkthoroughlytomakesurethatthebelt
iscorrectlyengagedtogrooveofthepulley.Thebeltmust
bereplacedifitiselongated,ithascracksoritiswornout.
SMIL16MEX0418AA2
Adjustmentoftension
1.Loosentheadjustingbolt(1)andthemountingbolt(2).
2.Rotatethealternator(3)toobtainthecorrectvalueof
tension.
3.Tightenthemountingbolt(2)andtheadjustingbolt(1).
SMIL16MEX0419AA3
6-24
