3-CONTROLSANDINSTRUMENTS

Right-handsidemirror

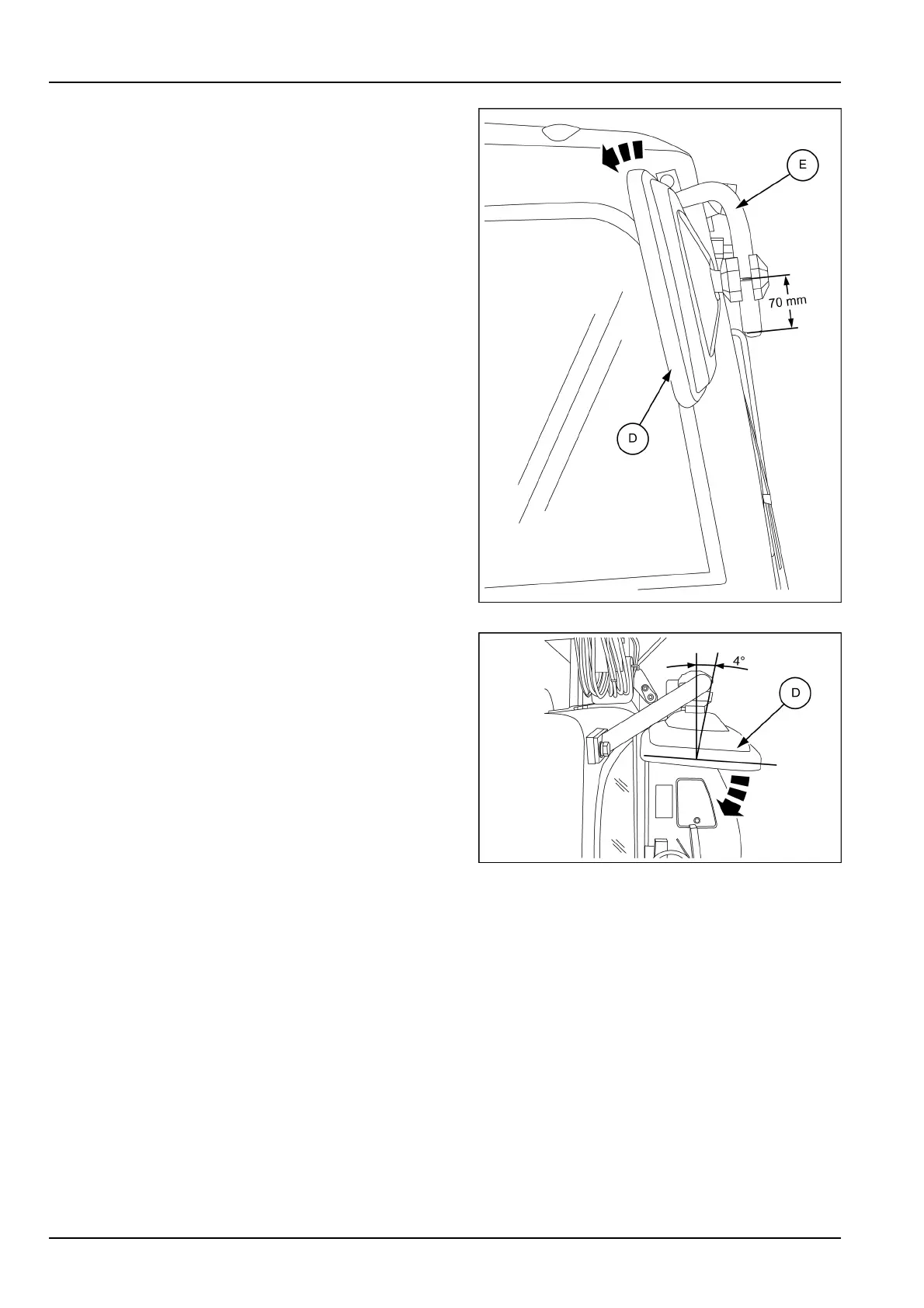

Positionthemirror(D)onthebracket(E)asshowninthe

gureaside.

Horizontallyadjustthemirrorlocationinordertomaximize

visibility.Themirrorinclinationdependsontheheightboth

oftheseatandtheoperator.

SMIL16MEX1121BB3

Verticallyadjustthemirrorlocationsothattheright-rear

endofthemachinemaybevisiblefromtheoperator's

seat.Operatethemirror(D).

SMIL16MEX1122AB4

3-42
