4-OPERATINGINSTRUCTIONS

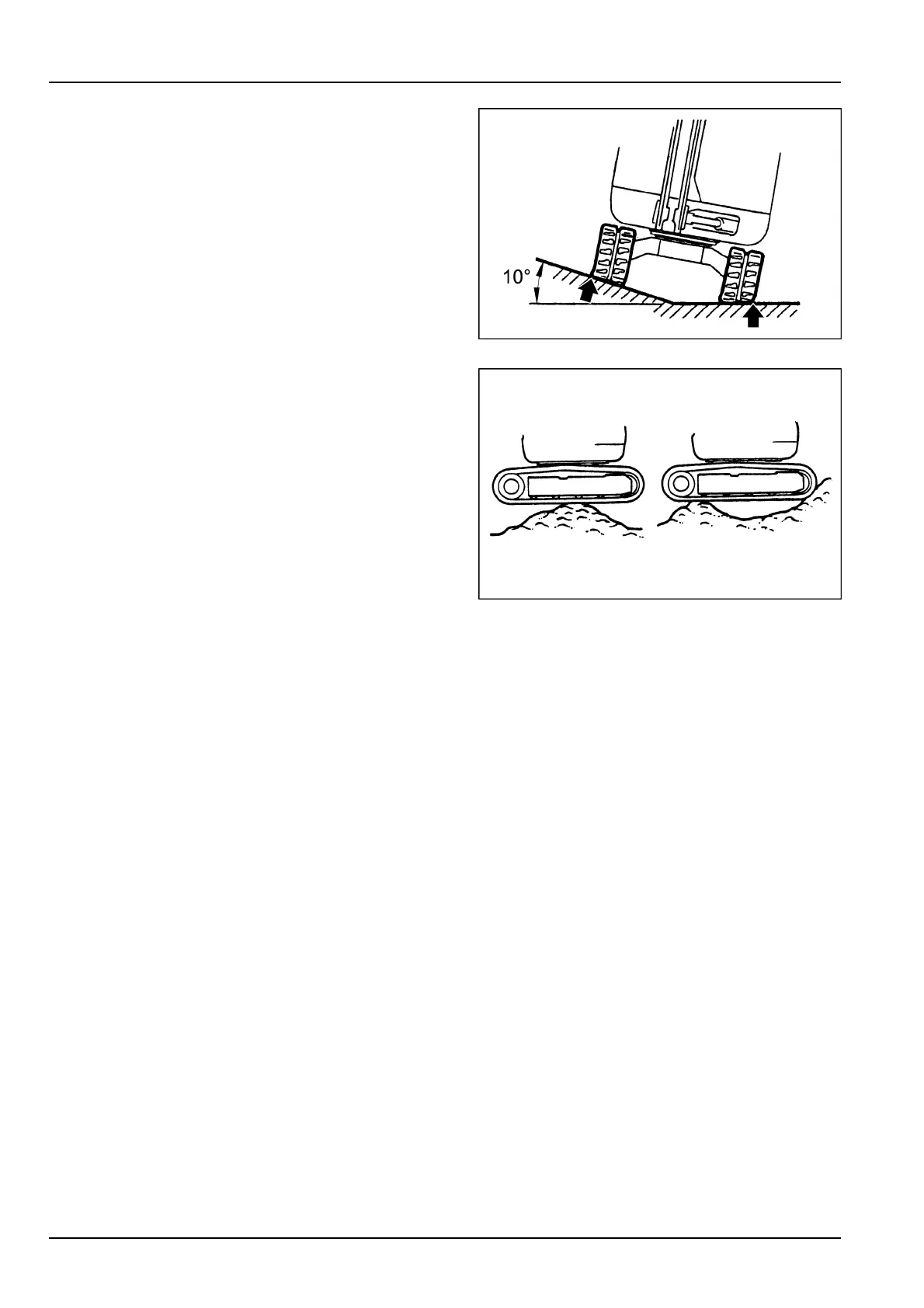

Ifyoutravelonaslopewiththemachinehigheratone

side,thiswillriskstodamagetherubbertrack.Bothma-

chinesidesmusttravelatthesamelevel.

LELI11E0269AB11

Donotchangethedirectionofthemachinewiththerubber

trackspositionedonearthheaps,asthiscouldcausethe

rubbertracktocomeofforgetdamaged.

LELI11E0270AA12

4-16
