6-MAINTENANCE

SMIL16MEX0373FB2

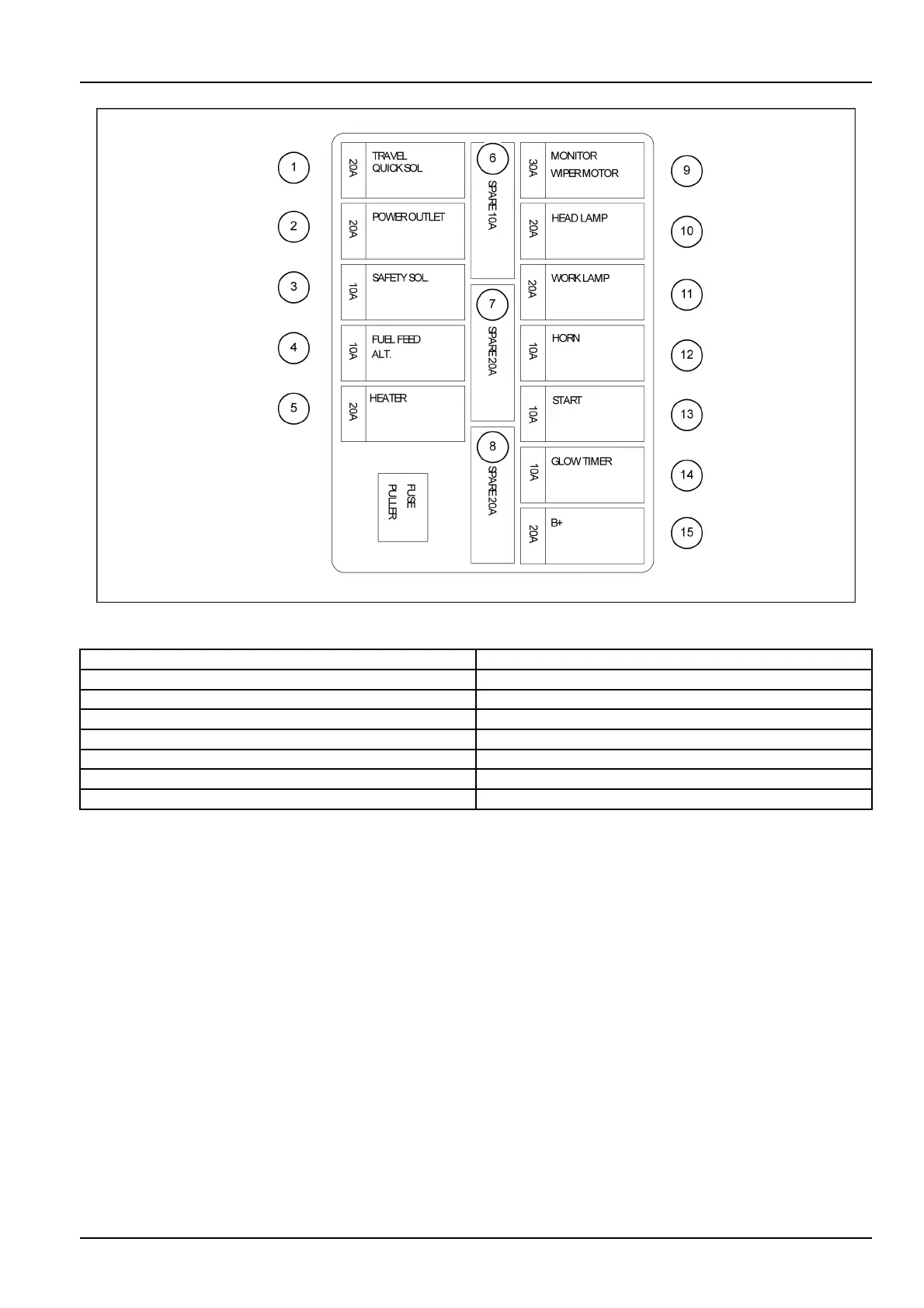

Fusefunctions

(1)Travelquicksolenoid20A(9)Monitorwipermotor30A

(2)Poweroutlet20A(10)Headlamp30A

(3)Safetysolenoid10A(11)Worklamp20A

(4)Fuelfeedalt10A(12)Horn10A

(5)Heater20A(13)Start10A

(6)Spare10A(14)Glowtimer10A

(7)Spare20A(15)B+20A

(8)Spare20A

6-67
