9-ACCESSORIES

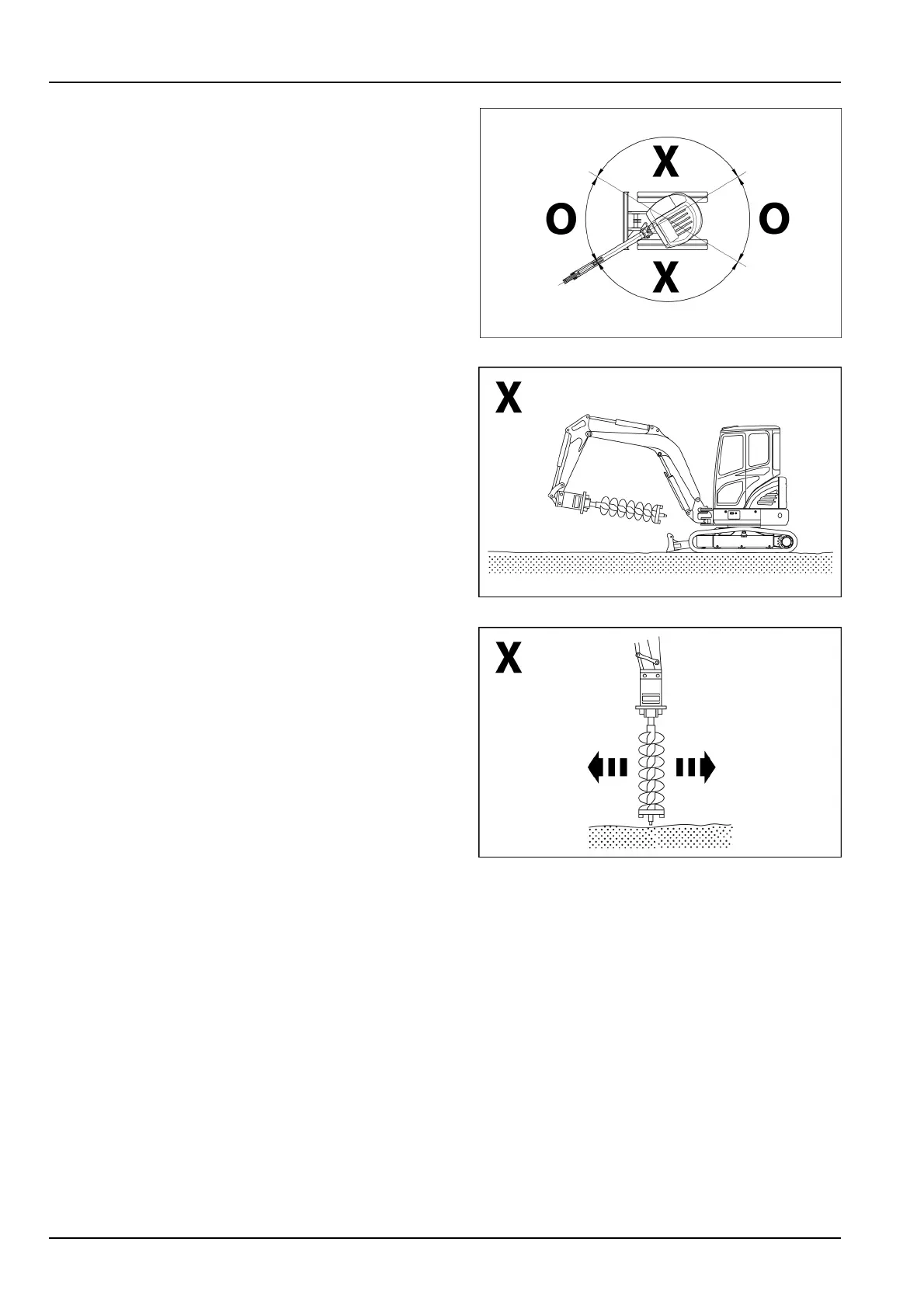

Donotoperatetheaugertothesideofthemachine.The

machinemaybecomeunstableandundercarriagecom-

ponentslifemaybereduced.

SMIL16MEX0465AA28

Operatetheexcavatorcarefullytoavoidhittingtheboom

withthebit.

SMIL17MEX2811AA29

Donotoperatetheaugerwhilestriking.Thiscancause

damagetotheworkingdeviceandtotheswingsystem.

SMIL17MEX2812AA30

9-20
