2-SAFETYINFORMATION

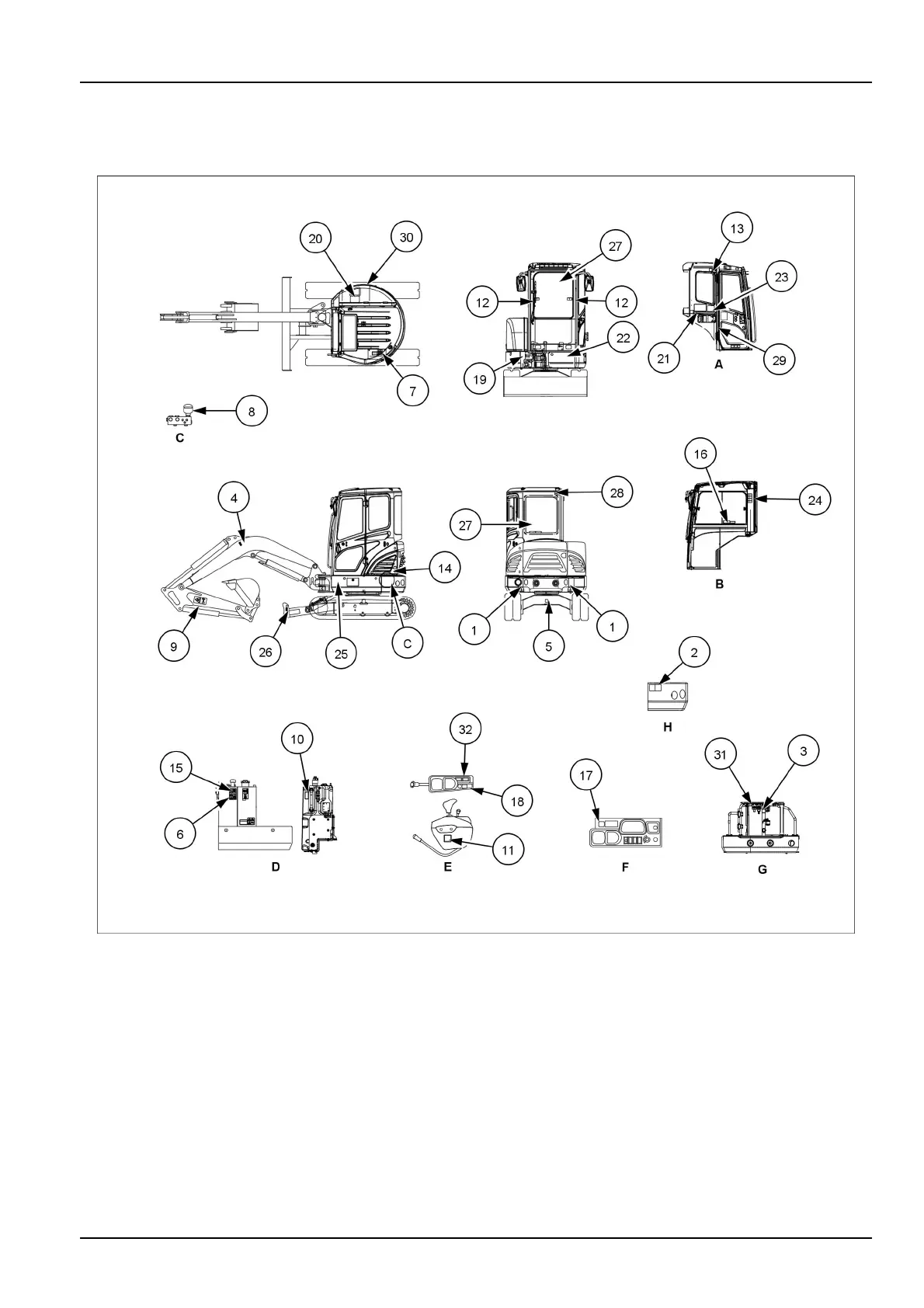

Signspositions

Whenyoureplaceasafetysignorothermachinesign,makesureyoupositionitasshownbelow.

SMIL17MEX2655GA1

Cabversion

A.Cabinside-Left-handE.Consolebox-Left-hand

B.Cabinside-Right-handF.Consolebox-Right-hand

C.AccumulatorofthesolenoidvalveG.Engineaccessdoorsupport

D.HydraulictankandfueltankH.Counterweight

2-19
