Cedar Summit F25650 - Page 35

Hardware
4 x #12 x 3/4” Pan Screw

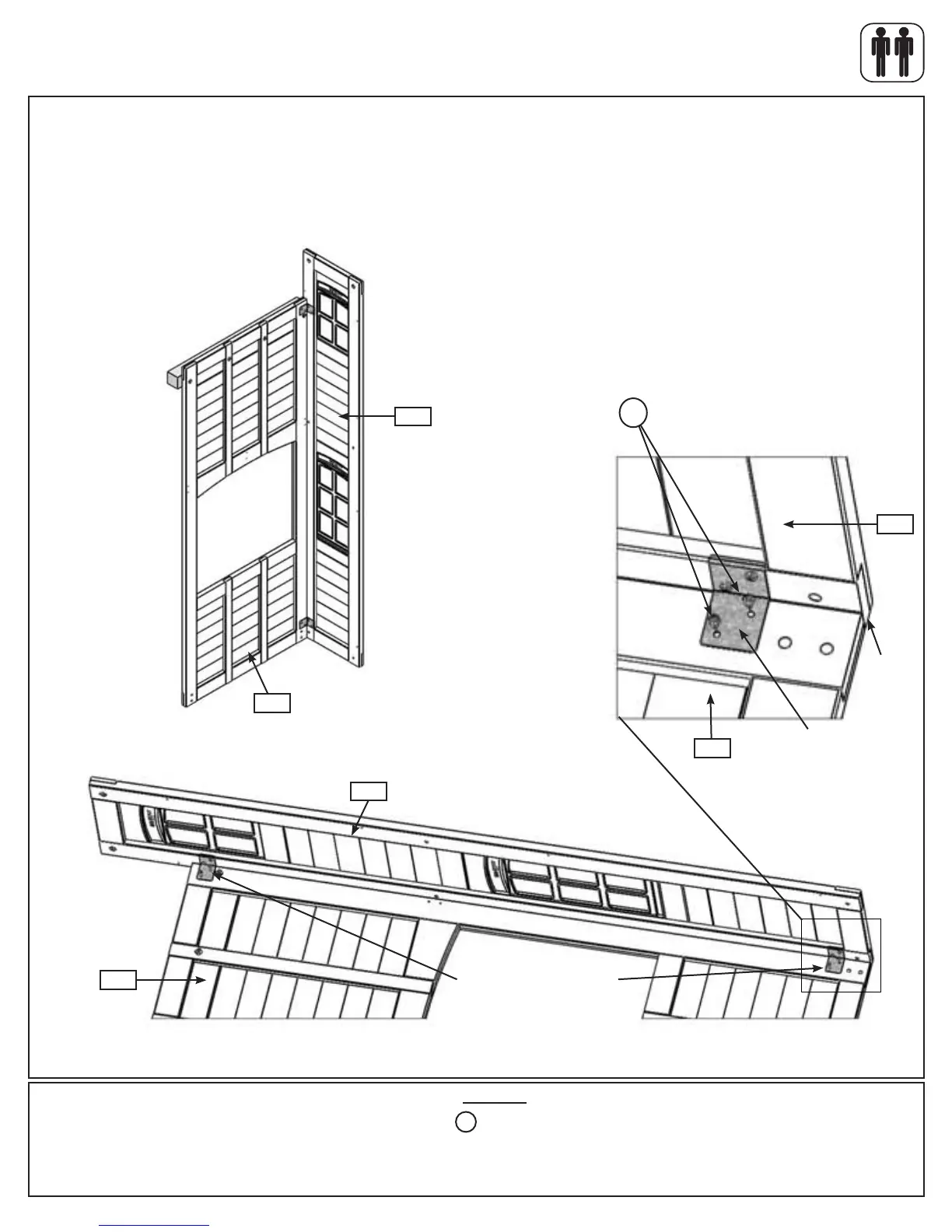

Step 5: Swing Side Panel Assembly
Part 3
E: Lay (043) SW Side Panel from Step 4, Part 4 on the ground, then with a helper hold (050) Narrow Window
Panel up against the right side edge of (043) SW Side Panel so the bottom edges are ush. (g. 5.5)
F: Attach both Corner Panel Brackets to (043) SW Side Panel with 2 (S8) #12 x 3/4” Pan Screws per bracket.
(g. 5.5, 5.6 and 5.7)
S8
9
0
°
9
0
°
9
0
°
Corner Panel Bracket
Fig. 5.5
050
Fig. 5.7
Fig. 5.6
S8
050
043
043
050
043
Corner Panel Bracket
Flush
