Cedar Summit F25650 - Page 41

1 x Front Floor FSC 2 x 4 x 81”
1 x Front Ground FSC 5/4 x 4 x 79-3/4”
1 x Back Floor FSC 2 x 4 x 81”
1 x Back Ground FSC 5/4 x 4 x 79-3/4”

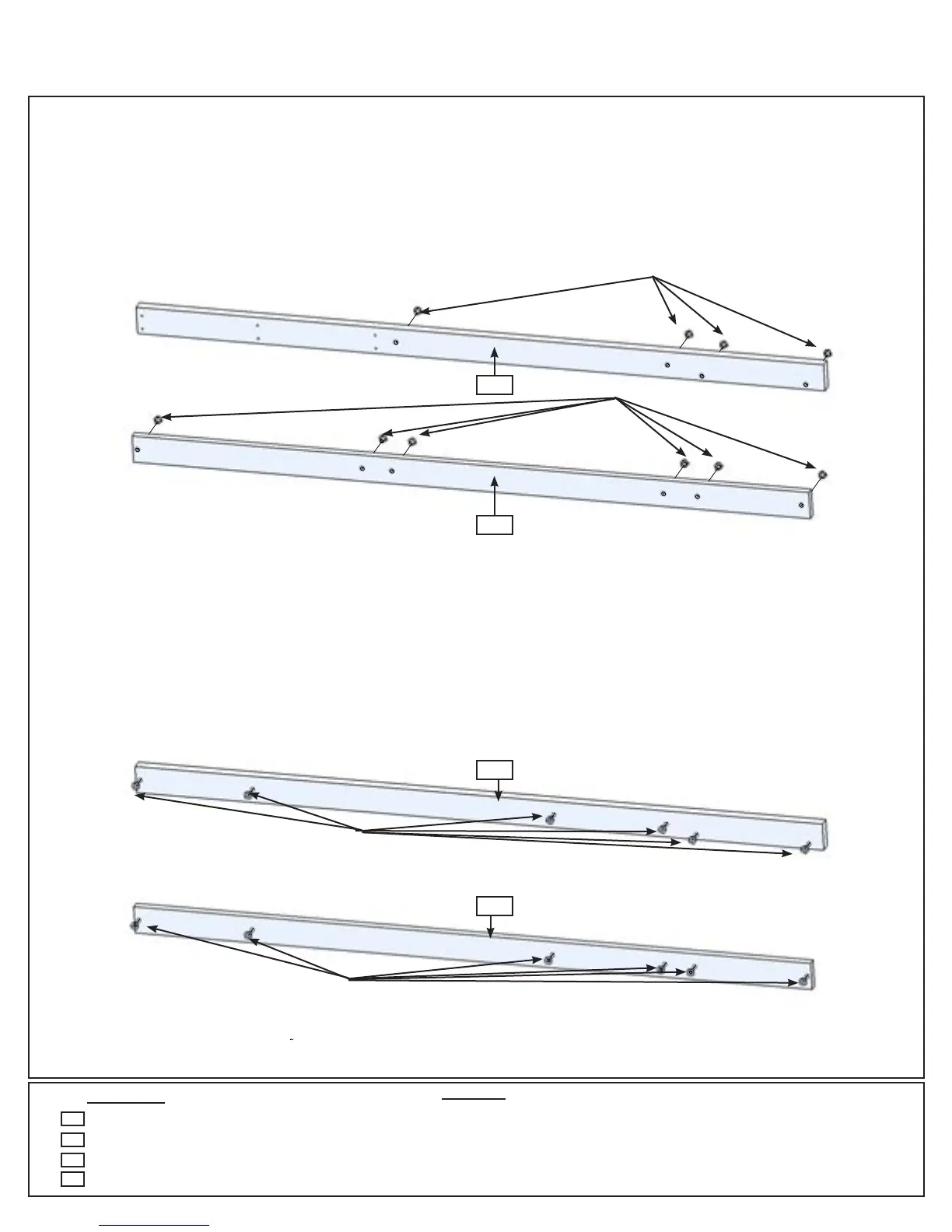

I: Install 4 - 5/16” t-nuts in (062) Front Floor as shown in g. 6.10.
J: Install 6 - 5/16” t-nuts in (063) Front Ground, (064) Back Floor and (065) Back Ground as shown in g. 6.11,
6.12 and 6.13.
Wood Parts
Hardware
064
063
062
Fig. 6.10
Fig. 6.11
Fig. 6.13
22 x 5/16” T-Nuts
Step 6: Door Wall Assembly
Part 5
Fig. 6.12
062
063
064
065
5/16” t-nut
5/16” t-nut
5/16” t-nut
5/16” t-nut
065
