Cedar Summit F25650 - Page 49

Hardware Other Parts
1 x Door Handle
1 x Catch Plate

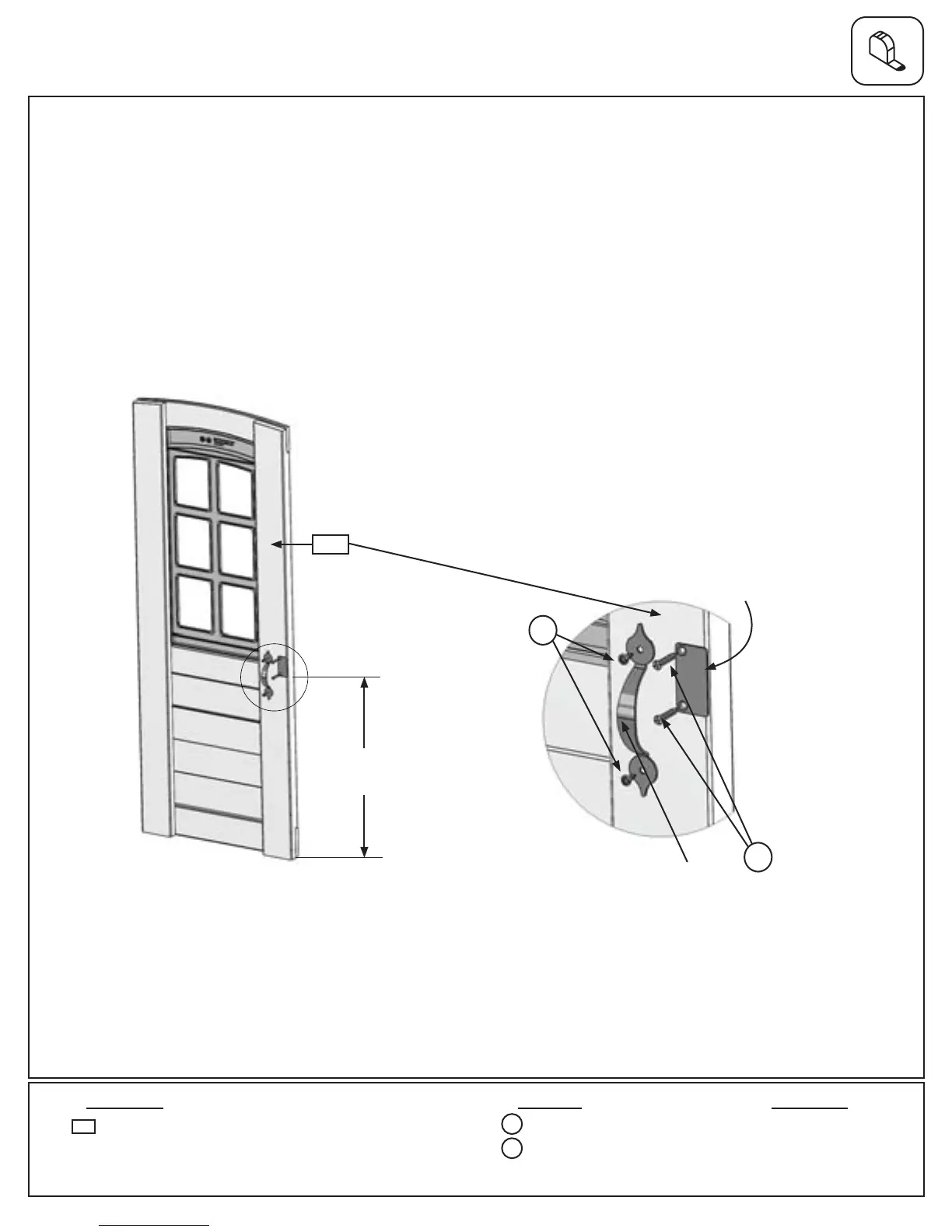

Step 9: Door Wall Assembly
Part 1
A: On the inside of (090) Door Window Panel, measure 16” up from the bottom and attach Catch Plate using 2
(S18) #6 x 1” Wood Screws. (g. 9.1 and 9.2)
B: On the inside of (090) Door Window Panel next to the Catch Plate attach 1 Door Handle using 2 (S13) #6 x
5/8” Pan Screws. (g. 9.1 and 9.2)
Fig. 9.2
Fig. 9.1
S18
S13
16”
Catch Plate
Door Handle
Inside View
090
2 x #6 x 1” Wood Screw
2 x #6 x 5/8” Pan Screw
S18
S13
1 x Door Window Panel FSC 1-1/4 x 16-3/4 x 44-7/16”
Wood Parts
090
49 support@cedarsummitplay.com
