CET PMC-53A - 3-Phase 4-Wire (3 P4 W) Wye with 3 Pts and 4 Cts; 3-Phase 3-Wire (3 P3 W) Direct Delta Connection with 3 Cts

CET Electric Technology
16

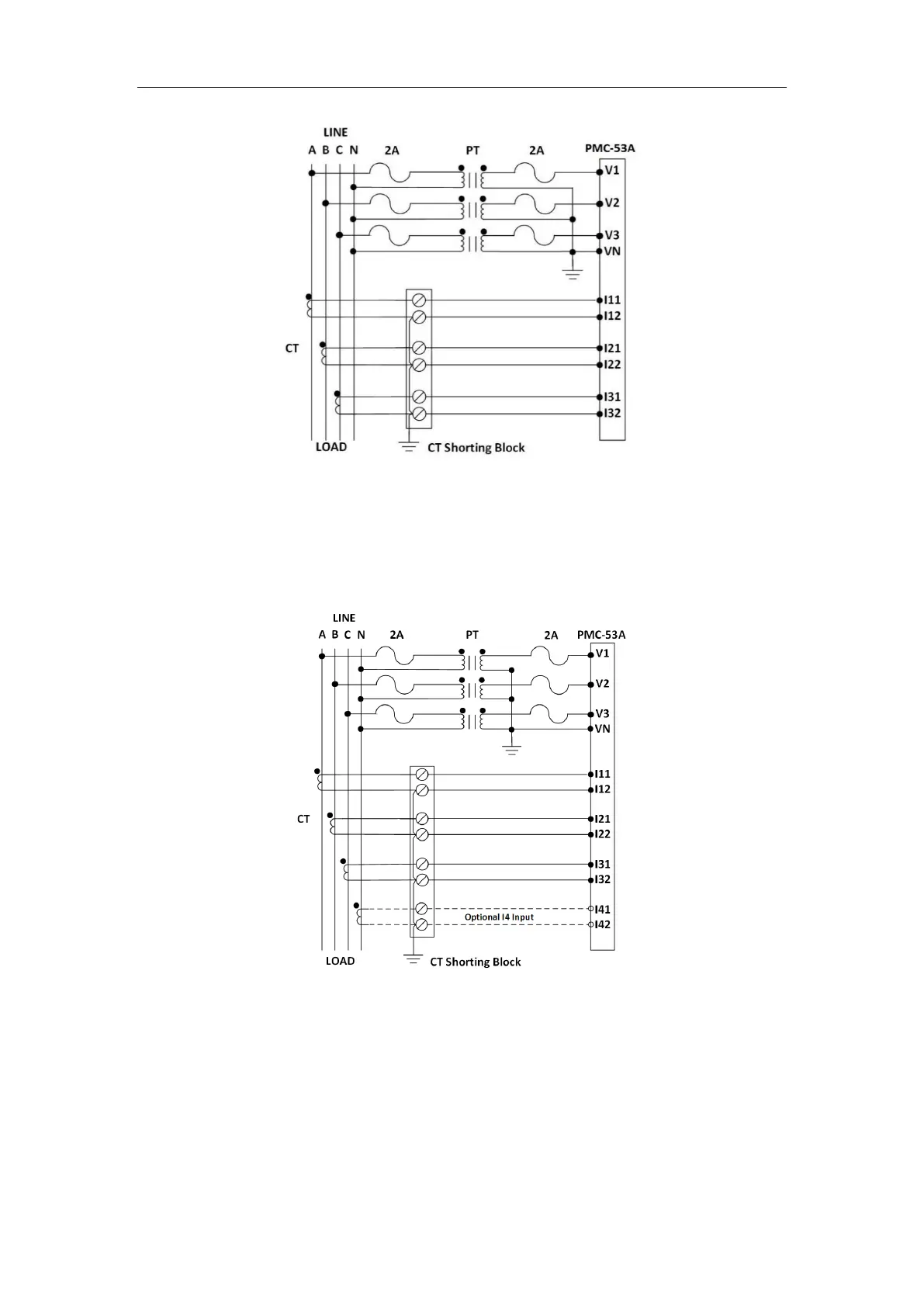

Figure 2-7 3P4W with 3PTs and 3CTs
2.5.4 3-Phase 4-Wire (3P4W) Wye with 3PTs and 4CTs
Please consult the serial number label to ensure that the rated PT secondary voltage is less than or
equal to the meter’s rated phase voltage input specification. Set the Wiring Mode to 3P4W.
Figure 2-8 3P4W with 3PTs and 4CTs (Optional I41 & I42)
2.5.5 3-Phase 3-Wire (3P3W) Direct Delta Connection with 3CTs
Please consult the serial number label to ensure that the rated system line voltage is less than or equal
to the meter’s rated line voltage input specification. Set the Wiring Mode to 3P3W.
