CET PMC-53A User Manual

CET Electric Technology
28
(Peak Demand)
Timestamp
Timestamp
Timestamp
Table 3-8 TOU Display
3.2.8 I/O
Press button
Display screens
1
st
Row
2
nd
Row
3
rd
Row
<I/O>
Display 1 (DI Status)
DI1, DI2
1
DI3, DI4
1
DI5, DI6
1
Display 2 (Pulse Counter)
DI1, DI2
1
DI3, DI4
1
DI5, DI6
1
Display 3 (DO Status)
DO1, DO2
2
DO3, DO4
2
Display 4 (Analog Input)
AI
3
Display 5 (Analog Output)
AO
4
Display 6 (Temperature)
TC1
5
TC2
5
Table 3-9 I/O
Notes:
1) This display only appears if the meter is equipped with the corresponding DI option.
2) This display only appears if the meter is equipped with the corresponding DO option.
3) This display only appears if the meter is equipped with the AI option.
4) This display only appears if the meter is equipped with the AO option.
5) This display only appears if the meter is equipped with the RTD option.
3.2.9 SOE
The PMC-53A with Firmware V1.00.03 or later supports the display of the SOE Log with up to 100 Events
(2 Events per page) such as I/O Changes, Setpoint, …etc, on the Front Panel. In addition, the SOE Log
can be reset from the Front Panel.
Examples of Event Log Display:

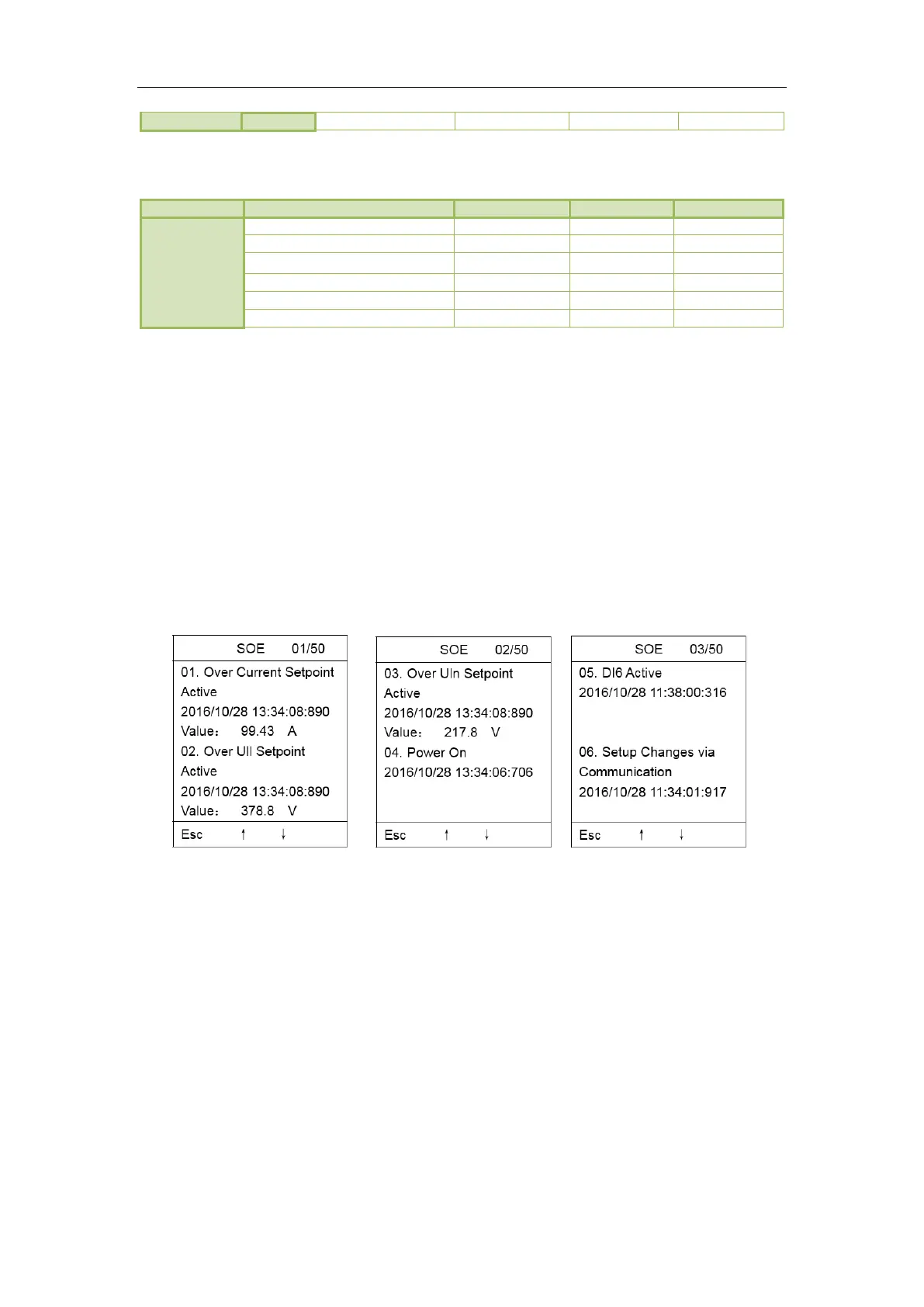

Figure 3-3 SOE Log Displays
3.3 Setup Configuration via the Front Panel
Pressing <←>/<F1> or <→>/<F2> to scroll the menu at the bottom until <Setup> appears and then
press the button associated with <Setup> to browse or change the setup parameters.
3.3.1 Making Setup Changes
1) Entering the Password:
 Press <Setup> to enter the Setup Mode.
 Press <F4>/<Enter> to advance to the Password page.
 A correct password must be entered before changes are allowed. The factory default password is
“0000”.
 Press <F2>/<←> to shift the cursor to the left or <F3>/<↑> to increment the numeric value for the
password.
