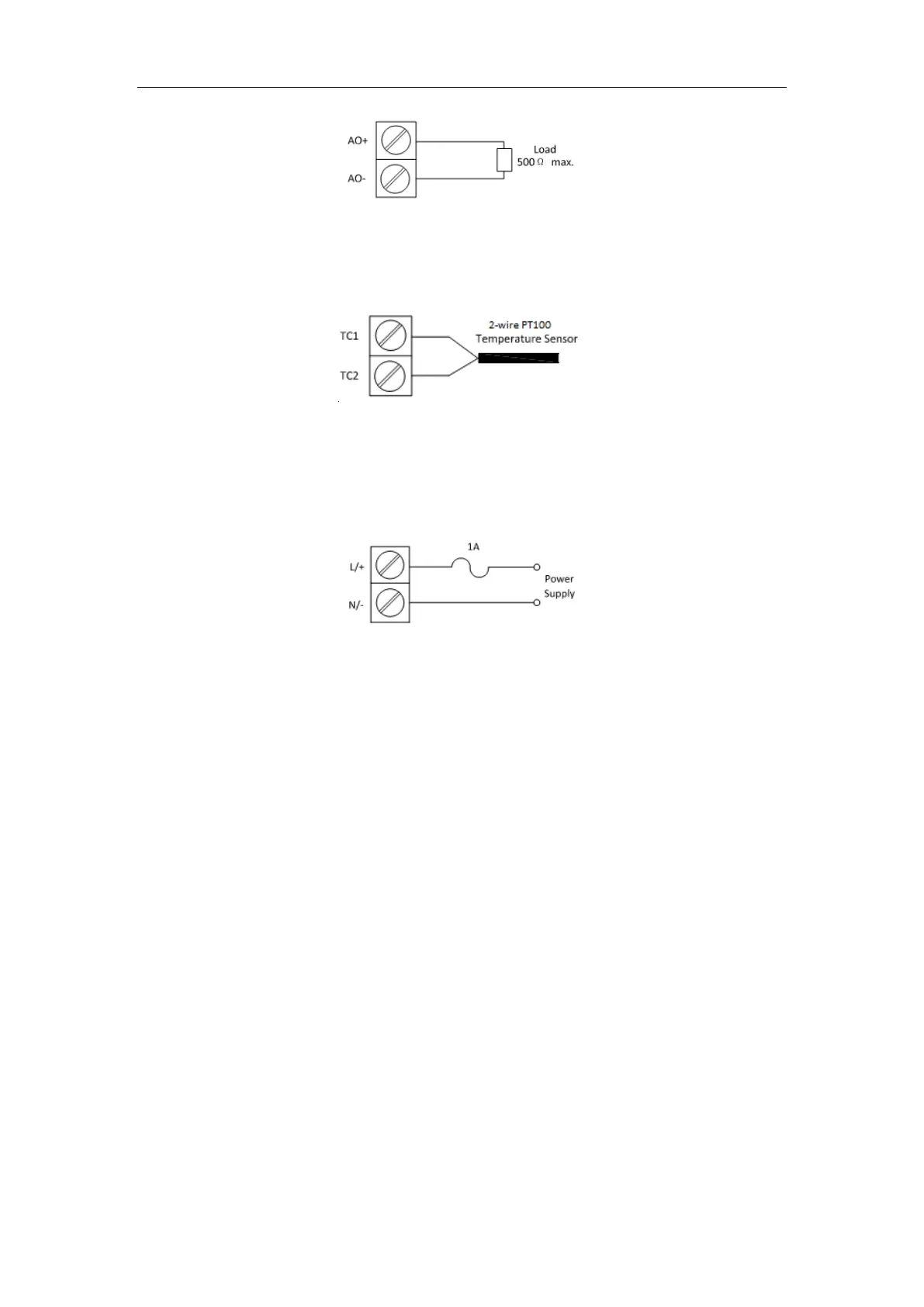

Figure 2-21 AO Connections
2.12 RTD Input Wiring
The following figure illustrates the RTD Input connections on the PMC-53A:
Figure 2-22 RTD Input Connections
2.13 Power Supply Wiring
For AC supply, connect the live wire to the L/+ terminal and the neutral wire to the N/- terminal.
For DC supply, connect the positive wire to the L/+ terminal and the negative wire to the N/- terminal.
Figure 2-23 Power Supply Connections

CET PMC-53A Specifications

General

Brand	CET
Model	PMC-53A
Category	Measuring Instruments
Language	English
