CET PMC-53A - 3-Phase 3-Wire (3 P3 W) Delta with 2 Pts and 2 Cts; 1-Phase 3-Wire (1 P3 W) Direct Connection with 2 Cts

CET Electric Technology
18

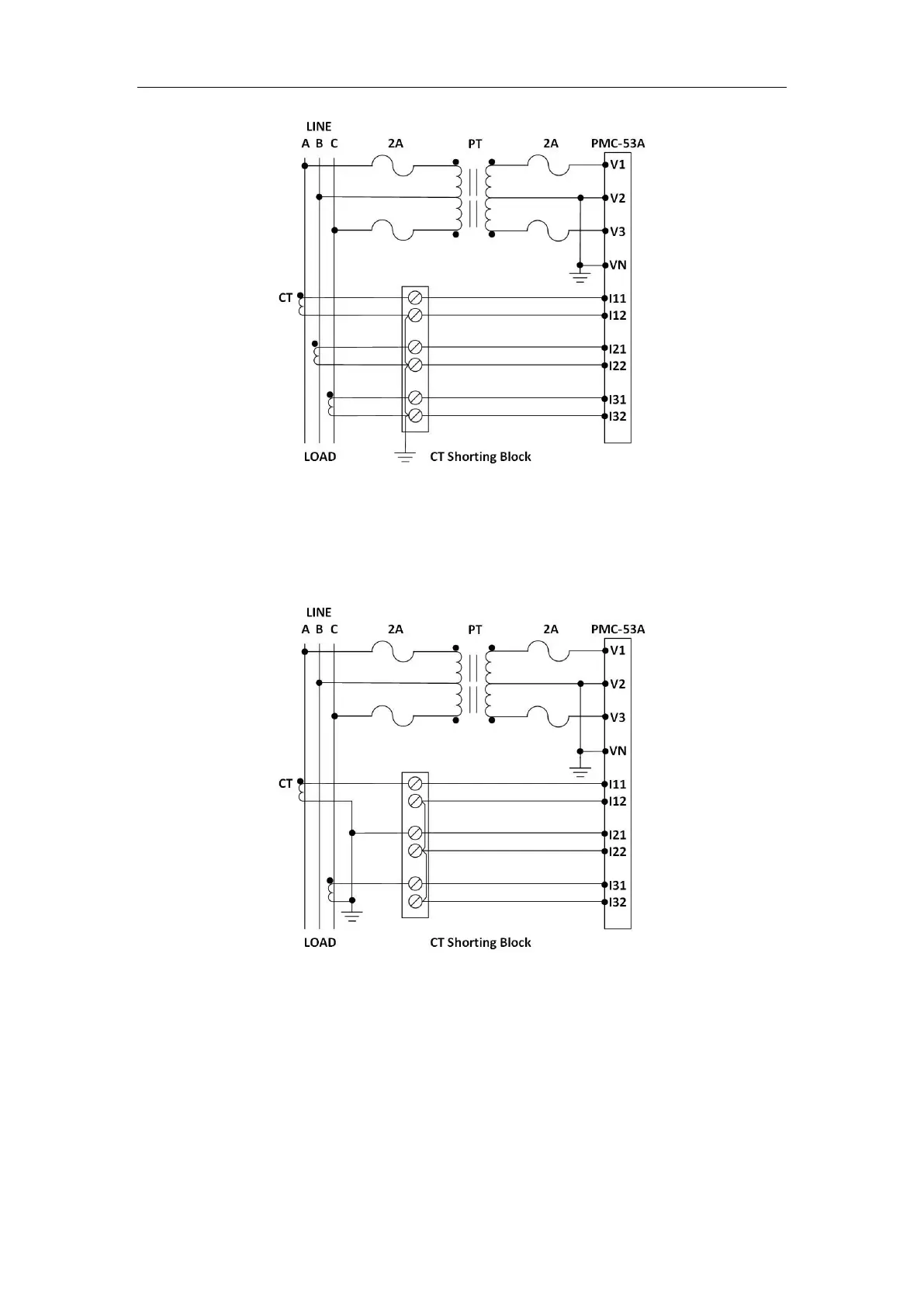

Figure 2-11 3P3W Delta with 2PTs and 3CTs
2.5.8 3-Phase 3-Wire (3P3W) Delta with 2PTs and 2CTs
Please consult the Serial Number Label to ensure that the rated PT secondary voltage is less than or
equal to the meter’s rated phase voltage input specification. Set the Wiring Mode to 3P3W.
Figure 2-12 3P3W Delta with 2PTs and 2CTs
2.5.9 1-Phase 3-Wire (1P3W) Direct Connection with 2CTs
Please consult the Serial Number Label to ensure that the rated system phase voltage is less than or
equal to the meter’s rated phase voltage input specification. Set the Wiring Mode to 1P3W.
