Page 48
rT
r
r
rT
Example:
Year Month Day 24-Hour Time
1
2
3
4
5 6 7
98B 9B 9B
88A

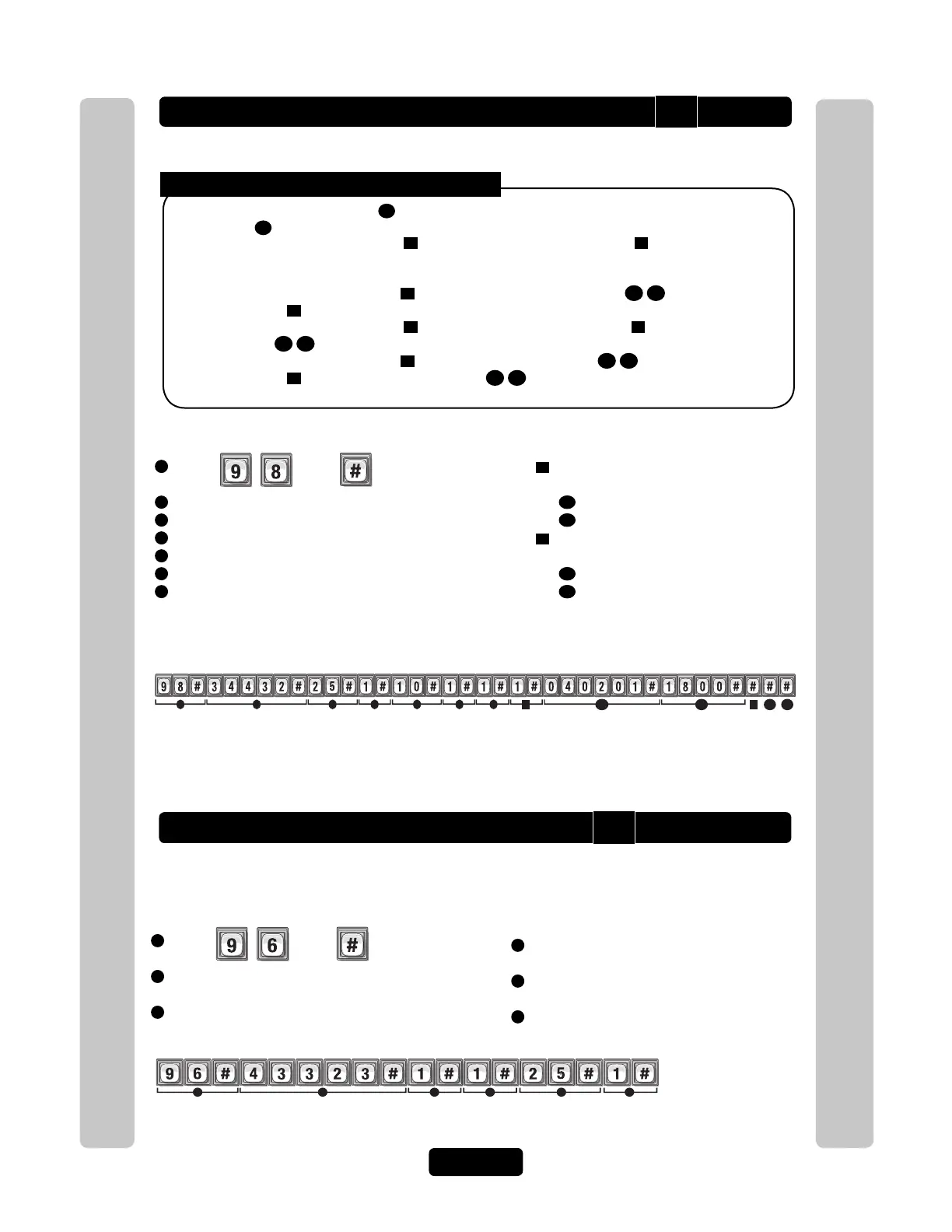

Transmitters
Transmitters
Activate or Deactivate a Transmitter
1
Press Then
2
Enter Transmitter Number (1-65534). Then (#)
3
Enter Facility Code (0-255). Then (#)
4
Enter Sequence Code (0-2). Then (#)
5
Enter ID Number (0-26). Then (#)
6
Enter Button Number (1-4). Then (#)
7
Activate Transmitter (Enable-1 or Disable-0). Then (#)
To Activate or Deactivate a Transmitter:
8
Use Start Activation Date, (Enable-1
or Disable-0). Then (#)
8A
Start Date (yymmdd). Then (#)
8B
Start Time (hhmm). Then (#)
9
Use End Deactivation Date, (Enable-1
or Disable-0). Then (#)
9A
End Date (yymmdd). Then (#)
9B
End Time (hhmm). Then (#)
Note: All time must be entered using a 24-hour format (8AM=0800, 3PM=1500 etc.)
Activate or deactivate a transmitter on a specific date and time.
Activate / Deactivate a Transmitter:
Disabling the Activate Transmitter
7
, the Card will always be deactivated. If you enable the Activate
Transmitter
7
, then the four If statements could apply:
1. If you disable the Start Activation Date
8
and disable the End Deactivation Date
9
and omit all dates and
times, the Transmitter will immediately become active and stay that way until the code is deactivated or
deleted.
2. If you enable the Start Activation Date
8
and add only a "Start Date and Time"
8A
8B
and disable the End
Deactivation Date
9
, the Transmitter will activate on that "Start Date and Time".
3. If you disable the Start Activation Date
8 and enable the End Deactivation Date
9
and add only an "End
Date and Time"
9A
9B
, the Transmitter will deactivate on that "End Date and Time".
4. If you enable the Start Activation Date
8
and add a "Start Date and Time"
8A
8B
enable the End
Deactivation Date
9
and add an "End Date and Time"
9A
9B
, the Transmitter will activate on that "Start
Date and Time" and deactivate on the "End Date and Time".
Activates transmitter number "34432", facility code "25", sequence code "1", ID code "10", and button "1"
activated on February 1st, 2004 at 6PM.
Verify a Transmitter
Audio Feedback "Invalid Step": Indicates the transmitter code Does Not exist in the database.
Audio Feedback "Valid Step": Indicates the transmitter code Does exist in the database.
1
Press Then
2
Enter Transmitter PIN Code (1-65534). Then (#)
3
Enter Facility Code (0-255). Then (#)
4
Enter Sequence Code (0-2). Then (#)
5
Enter ID Number (0-26). Then (#)
6
Enter Button Number (1-4). Then (#)
Example:
Then System Beeps ONCE
1 2 3 4 5 6
Transmitter with PIN code "43323", facility code "1", sequence code "1", ID code "25", and button "1"
activated is NOT valid.
98
96
