Introduction
Introduction
Introduction

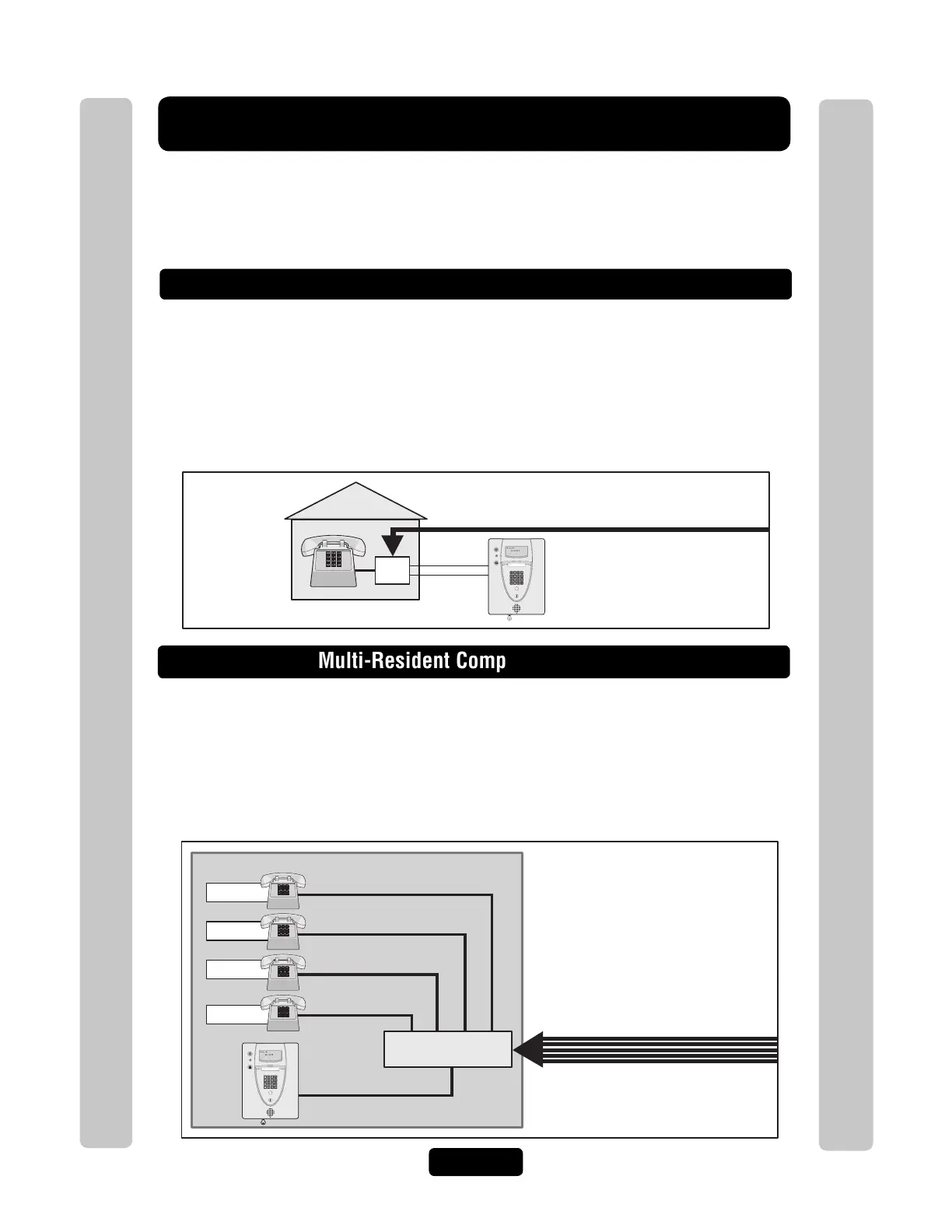

The sample installations on the next few pages will help familiarize you with the
features of your unit. You MUST know how your system is laid out to program it
with this manual. If you have questions about your configuration, please contact your
installing dealer for more information.
Single Family Residence (NPB)
This type of installation utilizes the "No Phone Bill" (NPB) feature. When a visitor
contacts the resident at the unit, it does not dial a separate number to reach you in
your residence. The unit essentially functions as an intercom with your residence
phone. Therefore, the NPB does not require the use of directory codes, since the unit
will only need to ring a single telephone line to the house. When a visitor arrives,
they will simply press the unit’s "Call" button to contact the resident.
Telco Phone Line
Bypass
Board
AUG 10, 2005
WELCOME
Multi-Resident Complex (Dial-Out)
This installation utilizes the dial-out feature. Each resident has a separate phone
number. The unit dials the resident’s numbers using preprogrammed Directory
Codes. Because the unit dials a separate phone number to contact the resident, the
"Call Waiting" and "Direct Command" features will not work. The unit must be
remotely programmed.
Telco Phone Lines
Phone Junction Box
Building/Complex
Resident
Resident
Resident
Manager
separate phone number
separate phone number
separate phone number
separate phone number
separate phone number
AUG 10, 2005
WELCOME
