Connect Wiring
23

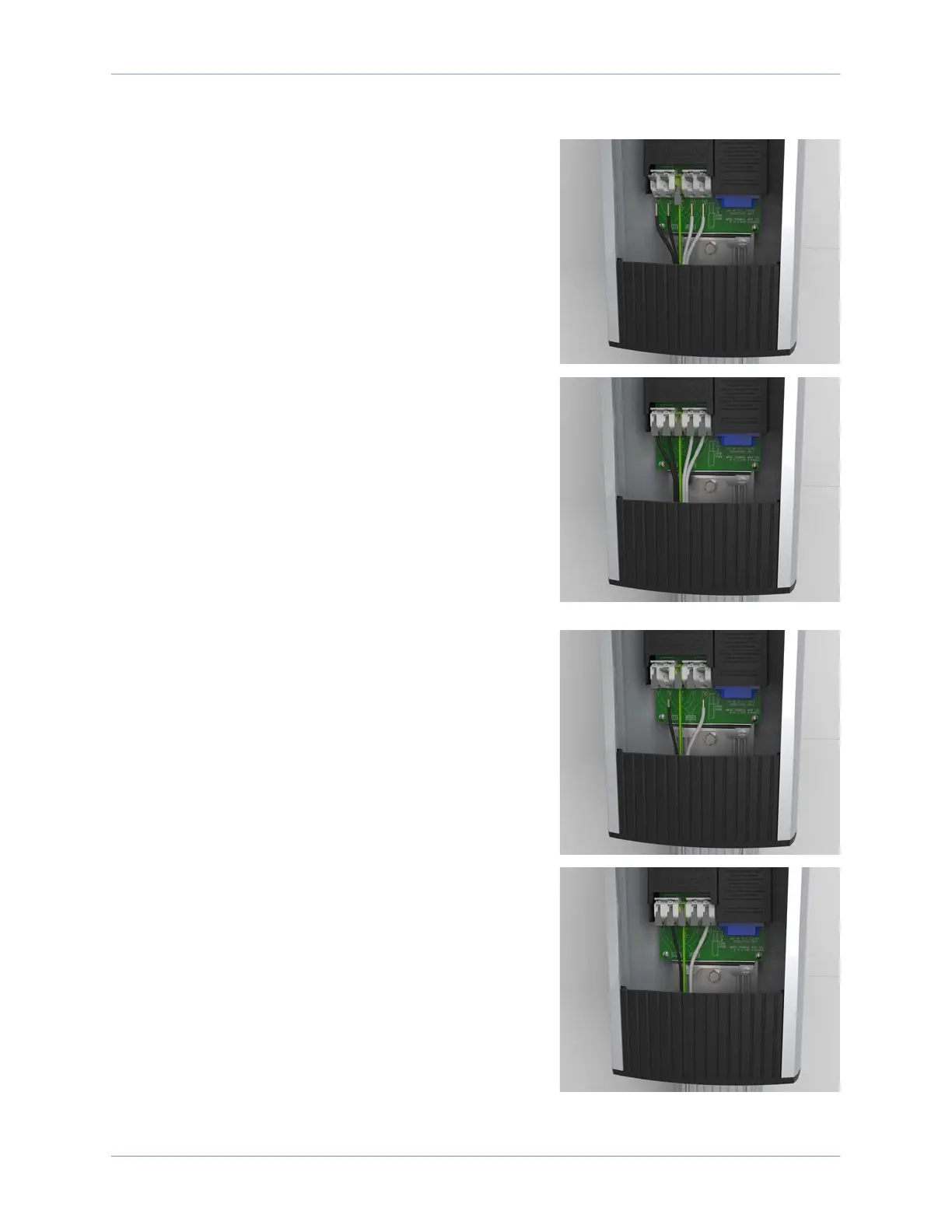

7. Insert the 240 VAC L1 and L2 wires.
8. Push the levers down until they click into their fully
closed position.
Dual Port Wiring
Single Port Wiring
